FL1200112,四脚贴片晶振,石英晶体谐振器,3225贴片晶振,物料编码为FL1200112，型号为FL晶振，频率为12MHz，精度为±30ppm，负载电容为18pF，工作温度范围为-40℃~85℃，尺寸为3.2*2.5mm，SMD晶振，晶振厂家，四脚贴片晶振，台产晶振，无源晶振，百利通亚陶晶振，石英晶振，石英晶体谐振器，台产晶振，3225贴片晶振，超小型，轻薄型，高性能，高温度等优势，被应用在激光机，B超，肌电图，脑电图，心电图等医疗设备上。
FL1200112,四脚贴片晶振,石英晶体谐振器,3225贴片晶振
参数表
型号
FL
频率
12MHZ
精度
±30ppm
负载电容
18pF
工作温度
-40℃-85℃

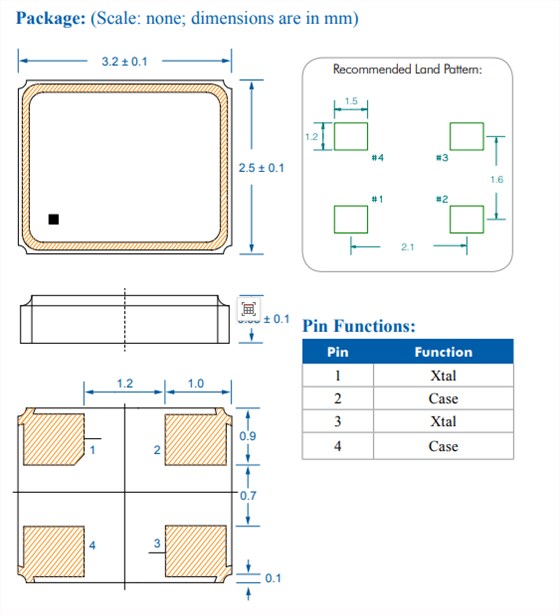

尺寸
3.2*2.5mm
FL1200112,四脚贴片晶振,石英晶体谐振器,3225贴片晶振
| 物料编码 | 描述 | 型号 | 频率 | 精度 | 负载电容 | 工作温度 | 包装 |
| FL2500123Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±50ppm | 20pF | -20°C~80°C | 4-SMD,NoLead |
| FL4000023 | CRYSTALSURFACEMOUNT | FL | 4MHz | 晶振厂家 | 12pF | - | 4-SMD,NoLead |
| FL4800076 | CRYSTAL48.0000MHZ12PFSMD | FL | 48MHz | ±15ppm | 12pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500167 | CRYSTAL25.000625MHZ18PFSMD | FL | 25.000625MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500038 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500120 | CRYSTAL25.0000MHZ12PFSMD | FL | 25MHz | ±20ppm | 12pF | -40°C~100°C | 4-SMD,NoLead |
| FL2500309 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±30ppm | 18pF | -40°C~105°C | 4-SMD,NoLead |
| FL2400041 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL2500137Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±30ppm | 20pF | -20°C~70°C | 4-SMD,NoLead |
| FL2400075 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500187 | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±30ppm | 20pF | 0°C~85°C | 4-SMD,NoLead |
| FL2500108 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -20°C~85°C | 4-SMD,NoLead |
| FL1600043 | CRYSTAL16.0000MHZ9PFSMD | FL | 16MHz | ±10ppm | 9pF | -20°C~85°C | 4-SMD,NoLead |
| FL2500050 | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~85°C | 4-SMD,NoLead |
| FL374WFBR1 | CRYSTAL37.4000MHZ12PFSMD | FL | 37.4MHz | ±10ppm | 12pF | -20°C~85°C | 4-SMD,NoLead |
| FL400WFMT1 | CRYSTAL40.0000MHZ12PFSMD | FL | 40MHz | ±17ppm | 12pF | -40°C~100°C | 4-SMD,NoLead |
| FL2400072 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL1600080 | CRYSTAL16.0000MHZ10PFSMD | FL | 16MHz | ±10ppm | 10pF | -20°C~70°C | 4-SMD,NoLead |
| FL2400067 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±20ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL3200022 | CRYSTAL32.0000MHZ16PFSMD | FL | 32MHz | ±10ppm | 16pF | -20°C~70°C | 4-SMD,NoLead |
| FL260WFMR1 | CRYSTAL26.0000MHZ9PFSMD | FL | 26MHz | ±10ppm | 9pF | -20°C~85°C | 4-SMD,NoLead |
| FL2500213Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~85°C | 4-SMD,NoLead |
| FL2000038 | CRYSTAL20.0000MHZ16PFSMD | FL | 20MHz | ±10ppm | 16pF | -20°C~85°C | 4-SMD,NoLead |
| FL374WFBR2 | CRYSTAL37.4000MHZ16PFSMD | FL | 37.4MHz | ±10ppm | 16pF | -20°C~85°C | 4-SMD,NoLead |
| FL2400135Z | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500279Z | CRYSTAL25.0000MHZ12PFSMD | FL | 25MHz | ±30ppm | 12pF | -20°C~70°C | 4-SMD,NoLead |
| FL4800021 | CRYSTAL48.0000MHZ18PFSMD | FL | 48MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL4800057 | CRYSTAL48.0000MHZ10PFSMD | FL | 48MHz | ±30ppm | 10pF | -40°C~85°C | 4-SMD,NoLead |
| FL5000063Z | CRYSTAL50.0000MHZ18PFSMD | FL | 50MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL1600142Q | CRYSTAL16.0000MHZ8PFSMD | FL | 16MHz | ±50ppm | 8pF | -40°C~125°C | 4-SMD,NoLead |
