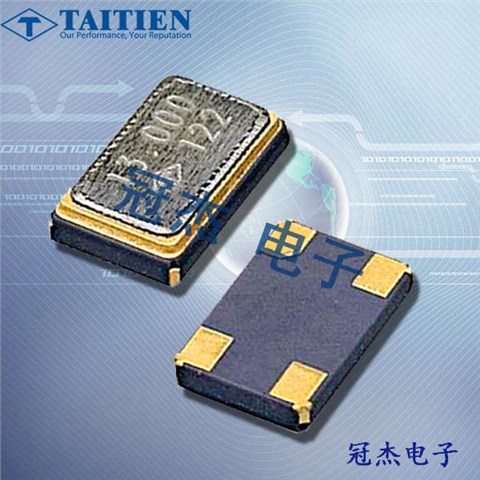

XVDEECNANF-16.000000,台湾台产泰艺晶振,5032谐振器

产品简介

XVDEECNANF-16.000000,台湾台产泰艺晶振,5032谐振器，物料编码为XVDEECNANF-16.000000，频率为16MHz，精度为±30ppm，负载电容为12pF，工作温度范围：-20℃~70℃，尺寸为5.0*3.2mm，具有高性能，高质量等优点，石英晶振，石英晶体谐振器，贴片晶振，四脚晶振，无源晶振，5032谐振器，台产晶振，晶振厂家，台湾台产泰艺晶振，广泛应用在车载导航，车载雷达，车载安全控制系统，车载音响等产品。

产品详情

1XQJX

XVDEECNANF-16.000000,台湾台产泰艺晶振,5032谐振器，物料编码为XVDEECNANF-16.000000，频率为16MHz，精度为±30ppm，负载电容为12pF，工作温度范围：-20℃~70℃，尺寸为5.0*3.2mm，具有高性能，高质量等优点，石英晶振，石英晶体谐振器，贴片晶振，四脚晶振，无源晶振，5032谐振器，台产晶振，晶振厂家，台湾台产泰艺晶振，广泛应用在车载导航，车载雷达，车载安全控制系统，车载音响等产品。

2GGCS

TY-2

XVDEECNANF-16.000000,台湾台产泰艺晶振,5032谐振器

参数表
型号	XV
频率	16MHZ
精度	±30ppm
负载电容	12pF
工作温度	-20℃-70℃

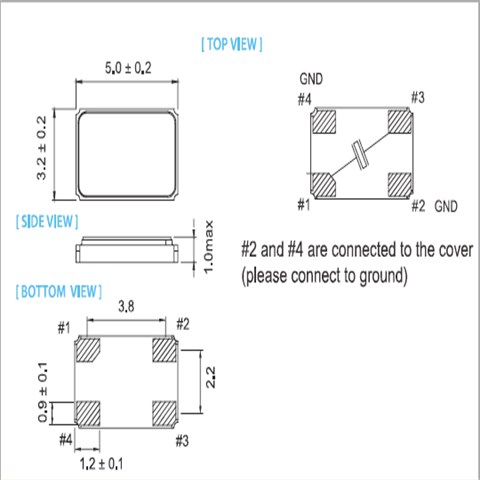

尺寸	5.0*3.2mm

3CC

TY-3

XVDEECNANF-16.000000,台湾台产泰艺晶振,5032谐振器

XV 5032

原厂编码	参数描述	型号	频率	频率稳定度	负载电容	工作温度
XDMCZLNDDD-0.032768	CRYSTAL 32.768KHZ 12.5PF SMD	XD	32.768 kHz	石英晶振	12.5pF	-40°C ~ 85°C
XDMCZLNDMD-0.032768	CRYSTAL 32.768KHZ 12.5PF SMD	XD	32.768 kHz	-	12.5pF	-40°C ~ 85°C
XDLCZLNDMD-0.032768	CRYSTAL 32.768KHZ 6PF SMD	XD	32.768 kHz	-	6pF	-40°C ~ 85°C
XDOCZLNDMD-0.032768	CRYSTAL 32.768KHZ 7PF SMD	XD	32.768 kHz	-	7pF	-40°C ~ 85°C
XDOCZLNDDD-0.032768	CRYSTAL 32.768KHZ 7PF SMD	XD	32.768 kHz	-	7pF	-40°C ~ 85°C
XDBCZLNDMD-0.032768	CRYSTAL 32.768KHZ 9PF SMD	XD	32.768 kHz	-	9pF	-40°C ~ 85°C
XVCCECNANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	XV	25 MHz	±30ppm	10pF	-20°C ~ 70°C
XVFEGCNANF-16.000000	CRYSTAL 16.0000MHZ 16PF SMD	XV	16 MHz	±50ppm	16pF	-20°C ~ 70°C
XVHDDCNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XV	25 MHz	±25ppm	20pF	-20°C ~ 70°C
XVHEELNANF-24.000000	CRYSTAL 24.0000MHZ 20PF SMD	XV	24 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-27.000000	CRYSTAL 27.0000MHZ 20PF SMD	XV	27 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-8.000000	CRYSTAL 8.0000MHZ 20PF SMD	XV	8 MHz	±30ppm	20pF	-40°C ~ 85°C
XVFBCLNANF-12.000000	CRYSTAL 12.0000MHZ 16PF SMD	XV	12 MHz	±20ppm	16pF	-40°C ~ 85°C
XVGBBCNANF-20.000000	CRYSTAL 20.0000MHZ 18PF SMD	XV	20 MHz	±10ppm	18pF	-20°C ~ 70°C
XJGPPCAANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XJ	25 MHz	±15ppm	18pF	-20°C ~ 70°C
XVCEECNANF-50.000000	CRYSTAL 50.0000MHZ 10PF SMD	XV	50 MHz	±30ppm	10pF	-20°C ~ 70°C
XJDECCAANF-4.194304	CRYSTAL 4.194304MHZ 12PF SMD	XJ	4.194304 MHz	±20ppm	12pF	-20°C ~ 70°C
XVFBGCNANF-12.000000	CRYSTAL 12.0000MHZ 16PF SMD	XV	12 MHz	±50ppm	16pF	-20°C ~ 70°C
XVGBCLNANF-24.000000	CRYSTAL 24.0000MHZ 18PF SMD	XV	24 MHz	±20ppm	18pF	-40°C ~ 85°C
XVGBELNANF-27.000000	CRYSTAL 27.0000MHZ 18PF SMD	XV	27 MHz	±30ppm	18pF	-40°C ~ 85°C
XVGBELNANF-8.000000	CRYSTAL 8.0000MHZ 18PF SMD	XV	8 MHz	±30ppm	18pF	-40°C ~ 85°C
XIHEELAANF-11.059200	CRYSTAL 11.0592MHZ 20PF TH	XI	11.0592 MHz	±30ppm	20pF	-40°C ~ 85°C
XIHEELAANF-16.000000	CRYSTAL 16.0000MHZ 20PF TH	XI	16 MHz	±30ppm	20pF	-40°C ~ 85°C
XIHEELAANF-25.000000	CRYSTAL 25.0000MHZ 20PF TH	XI	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XIHEELAANF-4.000000	CRYSTAL 4.0000MHZ 20PF TH	XI	4 MHz	±30ppm	20pF	-40°C ~ 85°C
XIHEELAANF-7.372800	CRYSTAL 7.3728MHZ 20PF TH	XI	7.3728 MHz	±30ppm	20pF	-40°C ~ 85°C
XIHEELAANF-8.000000	CRYSTAL 8.0000MHZ 20PF TH	XI	8 MHz	±30ppm	20pF	-40°C ~ 85°C
XJCBBIAANF-10.368000	CRYSTAL 10.3680MHZ 10PF SMD	XJ	10.368 MHz	±10ppm	10pF	-10°C ~ 60°C
XIHCELAANF-16.000000	CRYSTAL 16.0000MHZ 20PF TH	XI	16 MHz	±30ppm	20pF	-40°C ~ 85°C
