XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振

XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振

产品简介

XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振,物料编码XVEBBCNANF-40.000000,型号为XV系列晶振,频率为40MHz,精度为±10ppm,负载电容为15pF,工作温度为-20℃~70℃,尺寸为5.0*3.2mm,5032mm晶振,泰艺晶振厂家,石英晶振,石英晶体谐振器,无源晶振,5032谐振器,5032晶体,四脚贴片晶振,具有高性能,高温度,高品质等特点,被广泛应用在智能电子手表,智能手环,点读笔,点读机,智能玩具等产品。

产品详情

1XQJX

TY-1

XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振,物料编码XVEBBCNANF-40.000000,型号为XV系列晶振,频率为40MHz,精度为±10ppm,负载电容为15pF,工作温度为-20℃~70℃,尺寸为5.0*3.2mm,5032mm晶振,泰艺晶振厂家,石英晶振,石英晶体谐振器,无源晶振,5032谐振器,5032晶体,四脚贴片晶振,具有高性能,高温度,高品质等特点,被广泛应用在智能电子手表,智能手环,点读笔,点读机,智能玩具等产品。

2GGCS

TY-2

XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振

参数表
型号 XV
频率 40MHZ
精度 ±10ppm
负载电容 15pF
工作温度 -20℃-70℃

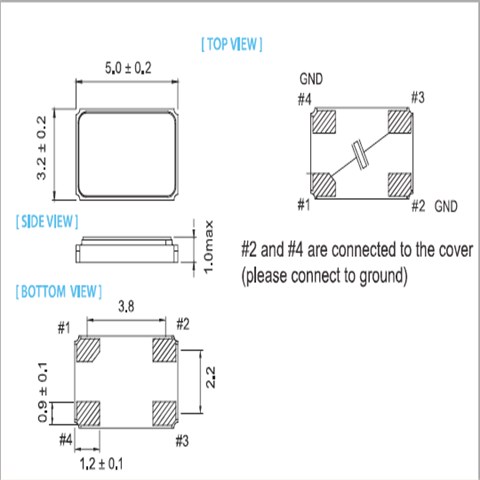

尺寸 5.0*3.2mm

3CC

TY-3

XVEBBCNANF-40.000000,泰艺晶振厂家,XV系列晶振

XV 5032

XV 5032规格书(1)

原厂编码 参数描述 型号 频率 频率稳定度 负载电容 工作温度
XVCCECNANF-25.000000 CRYSTAL 25.0000MHZ 10PF SMD XV 石英晶振 ±30ppm 10pF -20°C ~ 70°C
XVEBBCNANF-40.000000 CRYSTAL 40.0000MHZ 15PF SMD XV 40 MHz ±10ppm 15pF -20°C ~ 70°C
XVBCCLNANF-20.000000 CRYSTAL 20.0000MHZ 9PF SMD XV 20 MHz ±20ppm 9pF -40°C ~ 85°C
XVCCCLNANF-25.000000 CRYSTAL 25.0000MHZ 10PF SMD XV 25 MHz ±20ppm 10pF -40°C ~ 85°C
XVDGGHNANF-20.000000 CRYSTAL 20.0000MHZ 12PF SMD XV 20 MHz ±50ppm 12pF -40°C ~ 125°C
XVHCELNANF-25.000000 CRYSTAL 25.0000MHZ 20PF SMD XV 25 MHz ±30ppm 20pF -40°C ~ 85°C
XVCEELNANF-10.000000 CRYSTAL 10.0000MHZ 10PF SMD XV 10 MHz ±30ppm 10pF -40°C ~ 85°C
XVDEECNANF-12.000000 CRYSTAL 12.0000MHZ 12PF SMD XV 12 MHz ±30ppm 12pF -20°C ~ 70°C
XVDEECNANF-16.000000 CRYSTAL 16.0000MHZ 12PF SMD XV 16 MHz ±30ppm 12pF -20°C ~ 70°C
XVDGGCNANF-27.000000 CRYSTAL 27.0000MHZ 12PF SMD XV 27 MHz ±50ppm 12pF -20°C ~ 70°C
XVDGGHNANF-28.000000 CRYSTAL 28.0000MHZ 12PF SMD XV 28 MHz ±50ppm 12pF -40°C ~ 125°C
XVDGHHNANF-27.000000 CRYSTAL 27.0000MHZ 12PF SMD XV 27 MHz ±100ppm 12pF -40°C ~ 125°C
XVECCLNANF-13.000000 CRYSTAL 13.0000MHZ 15PF SMD XV 13 MHz ±20ppm 15pF -40°C ~ 85°C
XVFEGCNANF-16.000000 CRYSTAL 16.0000MHZ 16PF SMD XV 16 MHz ±50ppm 16pF -20°C ~ 70°C
XVHCCLNANF-16.000000 CRYSTAL 16.0000MHZ 20PF SMD XV 16 MHz ±20ppm 20pF -40°C ~ 85°C
XVHCELNANF-14.318180 CRYSTAL 14.31818MHZ 20PF SMD XV 14.31818 MHz ±30ppm 20pF -40°C ~ 85°C
XVHCELNANF-24.000000 CRYSTAL 24.0000MHZ 20PF SMD XV 24 MHz ±30ppm 20pF -40°C ~ 85°C
XVHCELNANF-8.000000 CRYSTAL 8.0000MHZ 20PF SMD XV 8 MHz ±30ppm 20pF -40°C ~ 85°C
XVHDDCNANF-25.000000 CRYSTAL 25.0000MHZ 20PF SMD XV 25 MHz ±25ppm 20pF -20°C ~ 70°C
XVHEELNANF-24.000000 CRYSTAL 24.0000MHZ 20PF SMD XV 24 MHz ±30ppm 20pF -40°C ~ 85°C
XVHEELNANF-27.000000 CRYSTAL 27.0000MHZ 20PF SMD XV 27 MHz ±30ppm 20pF -40°C ~ 85°C
XVHEELNANF-8.000000 CRYSTAL 8.0000MHZ 20PF SMD XV 8 MHz ±30ppm 20pF -40°C ~ 85°C
XVFBCLNANF-12.000000 CRYSTAL 12.0000MHZ 16PF SMD XV 12 MHz ±20ppm 16pF -40°C ~ 85°C
XVGBBCNANF-20.000000 CRYSTAL 20.0000MHZ 18PF SMD XV 20 MHz ±10ppm 18pF -20°C ~ 70°C
XVCEECNANF-50.000000 CRYSTAL 50.0000MHZ 10PF SMD XV 50 MHz ±30ppm 10pF -20°C ~ 70°C
XVFBGCNANF-12.000000 CRYSTAL 12.0000MHZ 16PF SMD XV 12 MHz ±50ppm 16pF -20°C ~ 70°C
XVGBCLNANF-24.000000 CRYSTAL 24.0000MHZ 18PF SMD XV 24 MHz ±20ppm 18pF -40°C ~ 85°C
