404系列温补晶振,米利伦北斗定位晶振,7050mm有源振荡器

产品简介

404系列温补晶振,米利伦北斗定位晶振,7050mm有源振荡器，尺寸7.0*5.0mm,频率范围10~27MHZ，欧美进口晶振，MTI-milliren有源晶振，石英晶体振荡器，5070温补晶振，有源贴片晶振，TCXO温补晶振，温度补偿晶体振荡器，贴片温补晶振，石英温补振荡器，低抖动温补晶振，低电压温补晶振，低相位温补晶振，低相噪温补晶振，北斗定位温补晶振，，无线模块温补晶振，智能家居温补晶振，多媒体设备温补晶振，测试测量温补晶振，具有低相位相噪的特点。有源晶振产品比较常用于北斗定位，无线模块，智能家居温补晶振，多媒体设备，测试测量等应用领域。404系列温补晶振,米利伦北斗定位晶振,7050mm有源振荡器.

产品详情

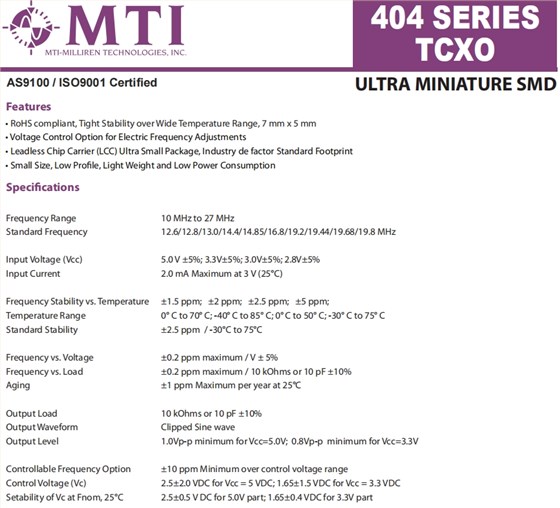

404系列温补晶振,米利伦北斗定位晶振,7050mm有源振荡器 参数表

Frequency Range			10 MHz to 27 MHz
Standard Frequency			12.6/12.8/13.0/14.4/14.85/16.8/19.2/19.44/19.68/19.8 MHz 5.0 V ±5%; 3.3V±5%; 3.0V±5%; 2.8V±5%
Input Voltage (Vcc)
Input Current			2.0 mA Maximum at 3 V (25°C)
Frequency Stability vs. Temperature			±1.5 ppm;±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C; -40° C to 85° C; 0° C to 50° C; -30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1 ppm Maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped Sine wave
Output Waveform
Output Level			1.0Vp-p minimum for Vcc=5.0V;0.8Vp-pminimum for Vcc=3.3V ±10 ppm Minimum over control voltage range
Controllable Frequency Option
Control Voltage (Vc)			2.5±2.0 VDC for Vcc = 5 VDC; 1.65±1.5 VDC for Vcc = 3.3 VDC 2.5±0.5 V DC for 5.0V part; 1.65±0.4 VDC for 3.3V part
Setability of Vc at Fnom, 25°C
