CS-023,CS-023-114.285M,114.285MHz,3225mm,ConnorWinfield进口晶振，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：CS-023系列，编码为：CS-023-114.285M，频率为：114.285MHz，频率稳定性：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，无源晶振，石英晶体谐振器，无铅环保晶振，表面安装在AT切割的第三泛音晶体。它们在许多频率合成器和PLL应用中被用作参考晶体。具有超小型，轻薄型，耐热及耐环境特点。应用于：通讯设备晶振，无线蓝牙晶振，汽车电子晶振，安防设备晶振，平板电脑等应用。
CS-023,CS-023-114.285M,114.285MHz,3225mm,ConnorWinfield进口晶振，产品特点：
•频率：114.285MHz
•频率校准：±20ppm进口晶振
•频率稳定性：CS-018:±100ppm，CS-023:±20ppm
•温度范围：-40至85°C，表面安装组件
•磁带和卷轴包装，符合RoHS标准/无铅

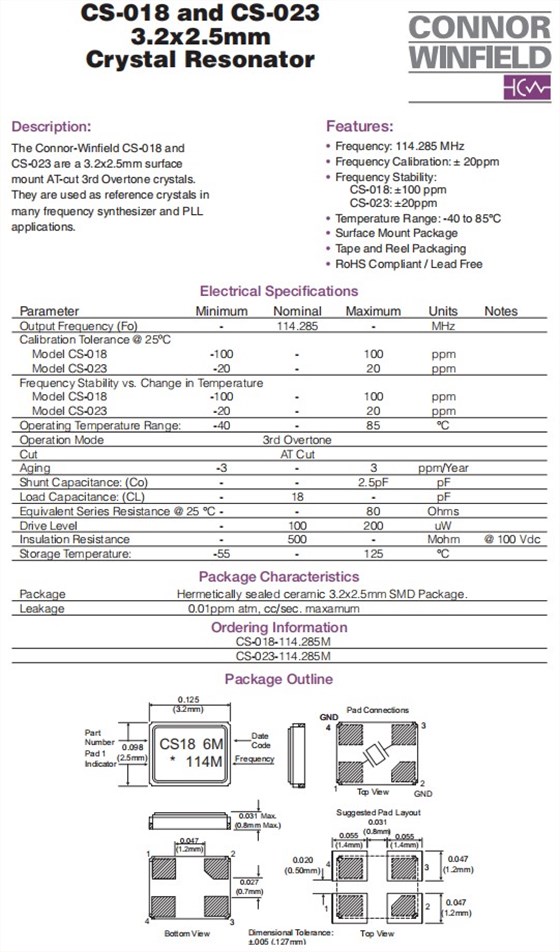

CS-023,CS-023-114.285M,114.285MHz,3225mm,ConnorWinfield进口晶振,参数表
|
Frequency Stability vs. Change in Temperature Model CS-018-100-100ppm Model CS-023-20-20ppm |
|||||||||||||||||||||||
| Operating Temperature Range:-40-85°C | |||||||||||||||||||||||
| Operation Mode3rd Overtone | |||||||||||||||||||||||
| CutAT Cut | |||||||||||||||||||||||
| Aging-3-3ppm/Year | |||||||||||||||||||||||
| Shunt Capacitance: (Co)--2.5pFpF | |||||||||||||||||||||||
| Load Capacitance: (CL)-18-pF | |||||||||||||||||||||||
| Equivalent Series Resistance @ 25 °C --80Ohms | |||||||||||||||||||||||
| Drive Level-100200uW | |||||||||||||||||||||||
| Insulation Resistance-500-Mohm@ 100 Vdc | |||||||||||||||||||||||
| Storage Temperature:-55-125°C | |||||||||||||||||||||||
| Package |

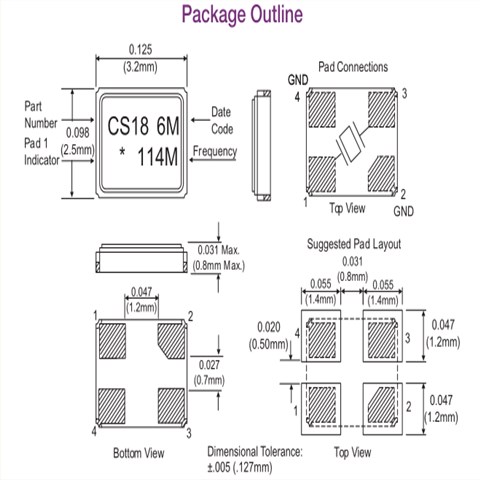

Package Characteristics Hermetically sealed ceramic 3.2x2.5mm SMD Package. |
||||||||||||||||||||||
| Leakage0.01ppm atm, cc/sec. maxamum | |||||||||||||||||||||||
|
Ordering Information CS-018-114.285M |
|||||||||||||||||||||||
| CS-023-114.285M | |||||||||||||||||||||||
| 原厂编码 | 石英晶体谐振器 | 型号 | 频率 | 频率稳定度 |
| CS-018-114.285M | ConnorWinfield晶振 | CS-018 | 114.285MHz | ±100ppm |
| CS-023-114.285M | ConnorWinfield晶振 | CS-023 | 114.285MHz | ±20ppm |
| XL-1C-010.0M | ConnorWinfield晶振 | XL-1C | 10MHz | ±50ppm |
| XL-1C-012.0M | ConnorWinfield晶振 | XL-1C | 12MHz | ±50ppm |
| XL-1C-020.0M | ConnorWinfield晶振 | XL-1C | 20MHz | ±50ppm |
| XL-1C-016.0M | ConnorWinfield晶振 | XL-1C | 16MHz | ±50ppm |
| XM-1-012.0M | ConnorWinfield晶振 | XM-1 | 12MHz | ±50ppm |
| XM-1-016.0M | ConnorWinfield晶振 | XM-1 | 16MHz | ±50ppm |
| XM-1-010.0M | ConnorWinfield晶振 | XM-1 | 10MHz | ±50ppm |
| CS-034-040.0M | ConnorWinfield晶振 | CS-034 | 40MHz | ±50ppm |
| CS-043-048.0M | ConnorWinfield晶振 | CS-043 | 48MHz | ±25ppm |
| CS-044-054.0M | ConnorWinfield晶振 | CS-044 | 54MHz | ±25ppm |
| XL-1C-018.432M | ConnorWinfield晶振 | XL-1C | 18.432MHz | ±50ppm |
| XM-1-018.432M | ConnorWinfield晶振 | XM-1 | 18.432MHz | ±50ppm |
| CS-018-114.285MHZ | ConnorWinfield晶振 | CS-018 | 114.285MHz | ±100ppm |
