Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振

Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振，尺寸1.6*1.0mm,频率52MHZ，日本京瓷晶振，进口无源晶振，1610mm超小型晶振，四脚贴片晶振，石英振动子，石英晶体振荡器，石英贴片晶振，无源石英晶体，无源晶振，SMD晶振，52MHZ贴片晶振，无线通讯晶振，轻薄型晶振，低损耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高质量晶振，移动通信专用晶振，蓝牙晶振，无线局域网专用晶振，网络设备晶振，影音系统晶振，智能家电晶振，智能音响专用晶振，具有高性能轻薄型的特点。

石英晶振产品常常应用范围移动通信、蓝牙®、无线局域网，网络设备，影音系统，智能家电，智能音响等领域。Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振.

Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振 参数表

項目

記号

标准规格

単位

备注

频率

f_nom

52.000

MHz

过音阶

Fundamental

―

负载容量

频率容许偏差

f_tol

±10

×10−6

25°C±3°C

串联电阻

Table 1

ohm

激励水平

Table 2

工作温度范围

T_use

−30~ +85

°C

保存温度范围

T_stg

−40~ +85

°C

频率温度特性

f_tem

±15

×10−6

相对于25°C频率的偏差

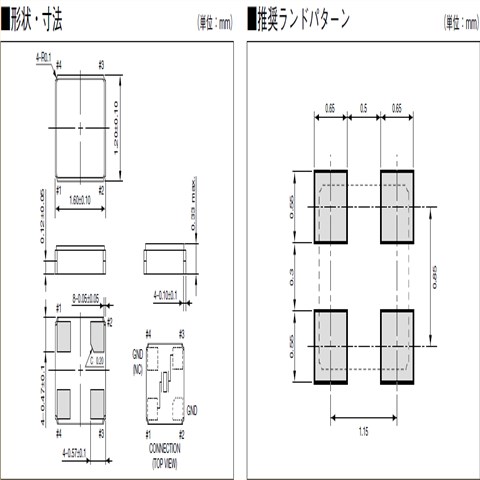

Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振 尺寸图

Kyocera高性能晶体,CX1612DB52000D0FLJC1,CX1612DB通信晶振

无源晶振产品特性：

Manufacturer Part Number原厂编码	Manufacturer厂家	Series型号	Type 系列	Frequency	Operating Temperature工作温度
CT2520DB19200C0FLHAF	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX3225CA12000P0HSTC1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225CA12000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225CA16000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA24000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225GA25000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX3225CA09843D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 125°C
CX3225CA28636D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA27000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225CA30000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225GA20000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA26000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA30000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA27000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA13560D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA32000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA09843D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 150°C
CX3225CA24000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX2520SB13560D0GEJCC	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
CX3225CA13560D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000H0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA12000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	26MHz	-25°C ~ 85°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX3225CA10000D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA20000D0HSSCC	京瓷晶振	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225CA26000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225CA40000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225GA10000D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225GA16000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225GA28636D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225GA40000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX1612DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX1612DB52000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	52MHz	-30°C ~ 85°C
CX2520SB13560D0GEJZ1	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX3225CA09843D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 125°C
CX3225CA10000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA28636D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA12000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225GA25000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX3225CA32000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	32MHz	-40°C ~ 125°C
CX3225GA26000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA27000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA09843D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 150°C
CX3225CA20000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225GA28636D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225CA24000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX3225GA30000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA10000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225CA25000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	25MHz	-40°C ~ 125°C
CX3225GA32000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA12000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CX3225CA26000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225GA40000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX3225GA13560D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA16000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225CA27000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225GA20000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA24000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225CA30000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225CA13560D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225CA40000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225CA16000H0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
