D75F-027.0M,27MHz,7050mm,D75F,ConnorWinfield低抖动晶振

产品简介

D75F-027.0M,27MHz,7050mm,D75F,ConnorWinfield低抖动晶振，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：D75F系列，编码为：D75F-027.0M，频率为：27.000MHz，工作温度范围：0℃至+70℃，小体积晶振尺寸：7.0x5.0x2.0mm封装，10垫脚贴片晶振，有源晶振，石英晶振，TCXO温补晶体振荡器，温补晶振，石英晶体振荡器。具有三态LVCMOS输出。通过使用模拟温度补偿，D75F能够在0至70°C的温度范围内保持低于1-ppm的稳定性。应用于：通信模块晶振，无线网络晶振，物联网晶振，车载控制器晶振，北斗导航晶振，罗拉模块等应用。

产品详情

D75F-027.0M,27MHz,7050mm,D75F,ConnorWinfield低抖动晶振，产品特点：

•3.3 Vdc操作，LVCMOS输出

•频率稳定性：±0.50ppm

•温度范围：0至70°C石英晶振

•低抖动<1ps RMS

•三态启用/禁用功能

•5x7mm表面安装封装

•磁带和卷轴包装

•符合RoHS/无铅

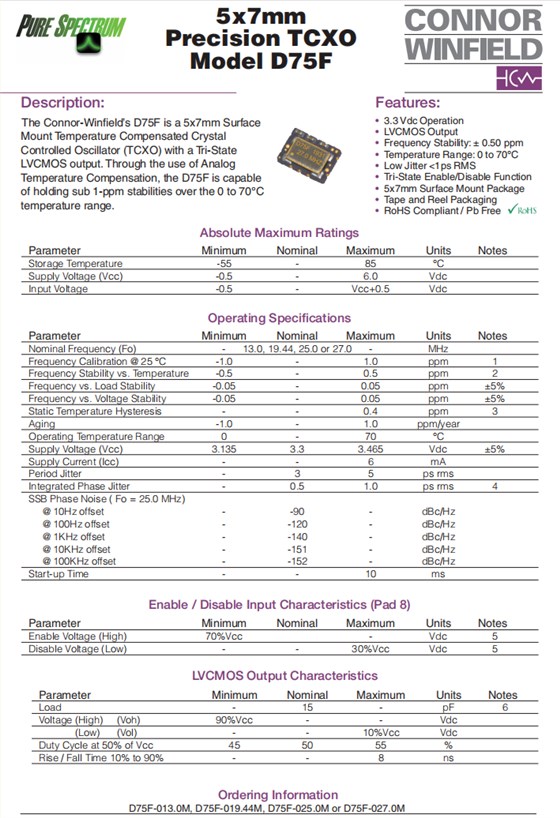

D75F-027.0M,27MHz,7050mm,D75F,ConnorWinfield低抖动晶振,参数表

Parameter	Minimum	Nominal	Maximum	Units	Notes
Nominal Frequency (Fo)			27	MHz
Frequency Calibration @ 25 °C	-1.0	-	1.0	ppm	1
Frequency Stability vs. Temperature	-0.5	-	0.5	ppm	2
Frequency vs. Load Stability	-0.05	-	0.05	ppm	±5%
Frequency vs. Voltage Stability	-0.05	-	0.05	ppm	±5%
Static Temperature Hysteresis	-	-	0.4	ppm	3
Aging	-1.0	-	1.0	ppm/year
Operating Temperature Range:	0	-	70	℃
Supply Voltage (Vcc)	3.135	3.3	3.465	Vdd	±5%
Supply Current (Icc)	-	-	6	mA
Period Jitter	-	3	5	ps rms
Integrated Phase Jitter	-	0.5	10	ps rms	4

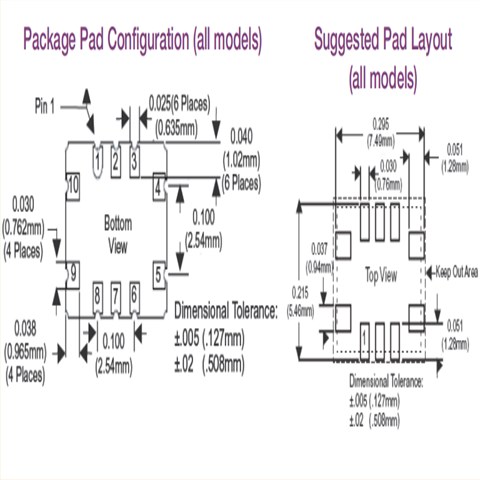

D75F-027.0M,27MHz,7050mm,D75F,ConnorWinfield低抖动晶振,尺寸图

原厂代码	晶振厂家	型号	频率	工作温度	包装/封装
D75J-050.0M	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-038.88M	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-040.0M	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-010.0M	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-019.2M	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-012.8M	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-020.0M	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75AS-020.0M	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-013.0M	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-019.44M	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-027.0M	有源晶振	D75F	27MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-025.0M	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-038.88M-T	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-050.0M-T	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-040.0M-T	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-013.0M-T	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-019.44M-T	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-025.0M-T	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-027.0M-T	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-010.0M-T	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-012.8M-T	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-019.2M-T	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-020.0M-T	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75AS-020.0M-T	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C	10-SMD, No Lead
