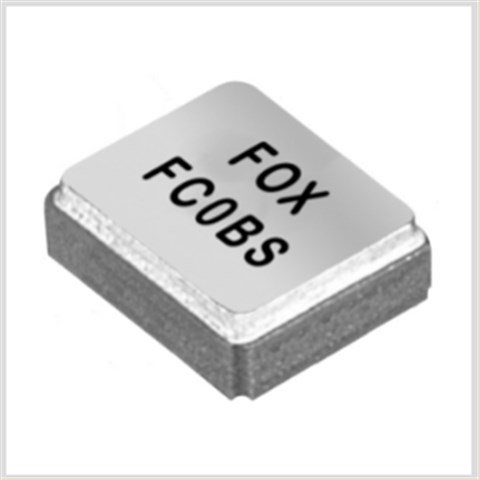

6GWIFI晶振 FOX低损耗晶体 FC0BSFEEN24A576-T3

6GWIFI晶振 FOX低损耗晶体 FC0BSFEEN24A576-T3，尺寸1.6mmx1.2mm,频率24.576MHZ，福克斯晶振，FOXcrystal，四脚贴片晶振，无源贴片晶振，小体积晶振，石英晶振，SMD晶振，石英晶体谐振器，无铅环保晶振，SMD石英晶体，石英SMD晶振，水晶振动子，无线网络晶振，6GWIFI晶振，便携式设备晶振，安防专用晶振，平板电脑晶振，蓝牙音响晶振，高品质石英晶振，低损耗贴片晶振，高性能晶振，产品具有小尺寸轻薄型高质量的特点。
石英晶振通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，特别适合用于无线网络，6GWIFI，便携式设备，安防，平板电脑，蓝牙音响等领域.6GWIFI晶振 FOX低损耗晶体 FC0BSFEEN24A576-T3.

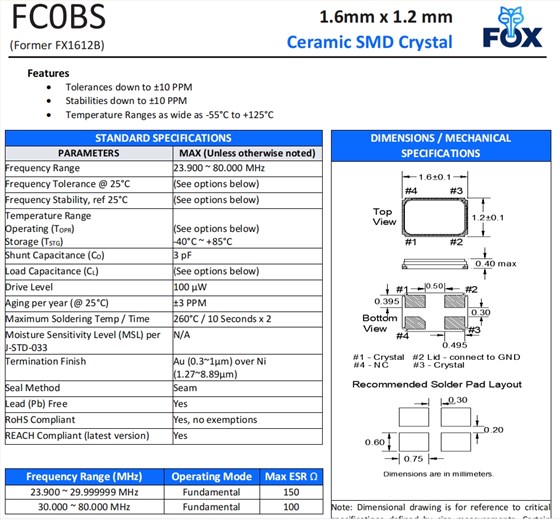

6GWIFI晶振 FOX低损耗晶体 FC0BSFEEN24A576-T3参数表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

24.5760 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-40°C ~ +85°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100 µW

Aging per year (@ 25°C)

±3 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1µm) over Ni
(1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

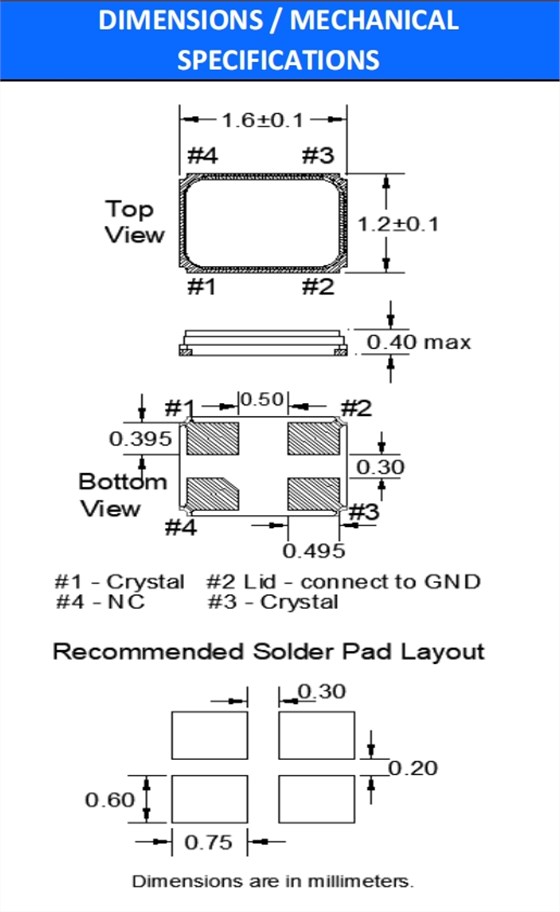

6GWIFI晶振 FOX低损耗晶体 FC0BSFEEN24A576-T3尺寸图

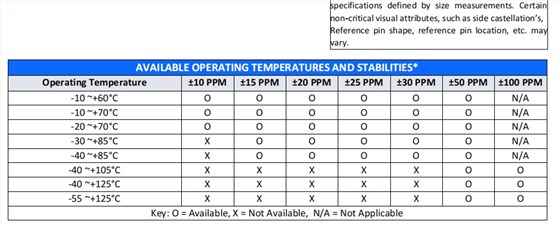

无源晶振产品特性：

公差低至10PPM

稳定性低至10PPM

温度范围宽至-55°C至+125°C
