HEC无源晶振,HE-MCC-6B-16.000F-18-E,6035mm,16MHZ,HE-MCC-6系列,美国HEC晶体,进口无源晶振,两脚贴片晶振,贴片无源晶体,6035mm贴片晶体,无源晶振,水晶振动子,16MHZ晶体谐振器,尺寸6.0*3.5mm,频率16MHZ,负载18pF,环保晶振,低老化晶振,低耗能晶振,高质量晶振,无线应用晶振,通讯产品晶振,笔记本电脑晶振,寻呼机晶振.
HEC无源晶振,HE-MCC-6B-16.000F-18-E,6035mm,16MHZ,HE-MCC-6系列特点:
谐振器体积仅0.023cc
提供高频基本模式
宽频率范围
卓越的老化特性

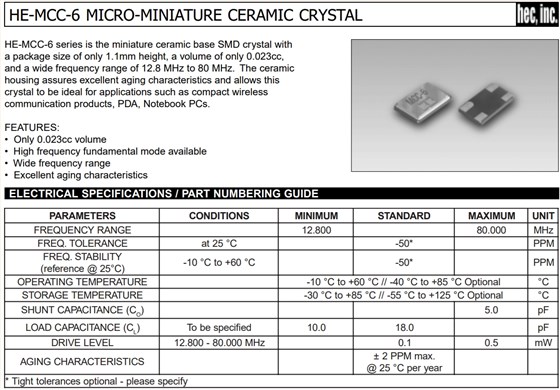

HEC无源晶振,HE-MCC-6B-16.000F-18-E,6035mm,16MHZ,HE-MCC-6系列 参数表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||
| PARAMETERS | CONDITIONS | MINIMUM | STANDARD | MAXIMUM | UNIT | ||||||||||||||||
| FREQUENCY RANGE |
|
16.000 |
|
MHz | |||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | -50* | PPM | ||||||||||||||||||
|
FREQ. STABILITY (reference @ 25°C) |
-10 °C to +60 °C | -50* | PPM | ||||||||||||||||||
| OPERATING TEMPERATURE | -10 °C to +60 °C // -40 °C to +85 °C Optional | °C | |||||||||||||||||||
| STORAGE TEMPERATURE | -30 °C to +85 °C // -55 °C to +125 °C Optional | °C | |||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 10.0 | 18.0 | pF | |||||||||||||||||
| DRIVE LEVEL | 12.800 - 80.000 MHz | 0.1 | 0.5 | mW | |||||||||||||||||
| AGING CHARACTERISTICS |
± 2 PPM max. @ 25 °C per year |
||||||||||||||||||||
