LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,电信晶振

产品简介

LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,电信晶振，英国进口晶振，IQD伊克德晶振，型号：12SMX-B系列，编码为：LFXTAL056516REEL，频率为：8.0000MHz，负载电容：12PF，频率稳定性：±30ppm，频率容差：±30ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，7050石英晶振，无源晶振，石英晶体谐振器，SMD石英晶体，无铅环保晶振。具有超小型，轻薄型，高性能，高品质等特点。应用于：通讯设备晶振，物联网晶振，汽车电子晶振，医疗设备晶振，智能家居等应用。

产品详情

LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,电信晶振,参数表

12SMX 频率参数
Frequency	8.000MHz
Frequency Tolerance	±20.00ppm to ±100.00ppm
Frequency Stability	±20.00ppm to ±100.00ppm
Ageing	±5ppm per year max
Electrical Parameters
Load Capacitance	10.0pF to 75.0pF
Shunt Capacitance	7pF max
Drive Level	100uW max
Operating Temperature Ranges	0 to 50℃
	-10 to 60℃
	-20 to 70℃
	-40 to 85℃
Environmental Parameters
Storage Temperature Range:	-40 to 125℃
Manufacturing Details
RoHS Terminations	NiAu
RoHS Reflow	260degC 10s

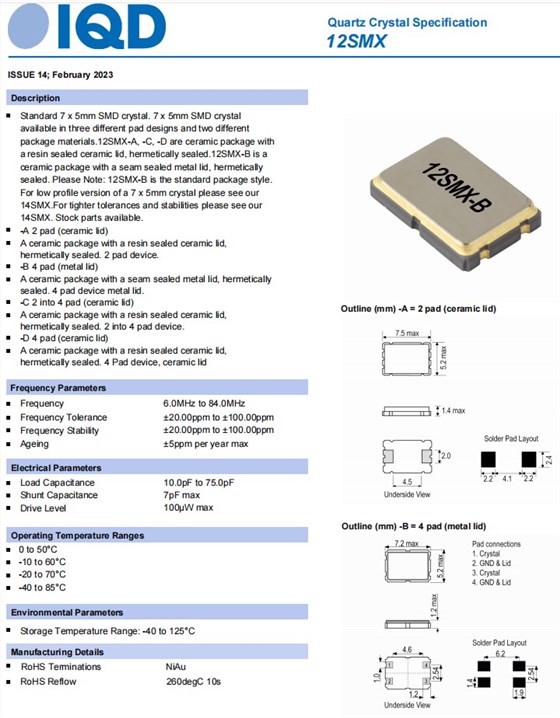

LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,电信晶振,尺寸图

石英晶体	品牌	描述	系列
LFXTAL026392REEL	IQD晶振	CRYSTAL 16.0000MHZ 16PF SMD	12SMX-B
LFXTAL026384REEL	IQD晶振	CRYSTAL 12.0000MHZ 16PF SMD	12SMX-B
LFXTAL026394REEL	IQD晶振	CRYSTAL 20.0000MHZ 16PF SMD	12SMX-B
LFXTAL056516REEL	IQD晶振	CRYSTAL 8.0000MHZ 12PF SMD	12SMX-B
LFXTAL026380REEL	IQD晶振	CRYSTAL 8.0000MHZ 16PF SMD	12SMX-B
LFXTAL026388REEL	IQD晶振	CRYSTAL 14.7456MHZ 16PF SMD	12SMX-B
LFXTAL026382REEL	IQD晶振	CRYSTAL 11.0592MHZ 16PF SMD	12SMX-B
LFXTAL026392BULK	IQD晶振	CRYSTAL 16.0000MHZ 16PF SMD	12SMX-B
LFXTAL026384BULK	IQD晶振	CRYSTAL 12.0000MHZ 16PF SMD	12SMX-B
LFXTAL026394BULK	IQD晶振	CRYSTAL 20.0000MHZ 16PF SMD	12SMX-B
LFXTAL026504REEL	晶振厂家	CRYSTAL 30.0000MHZ 16PF SMD	12SMX-B
LFXTAL026380BULK	IQD晶振	CRYSTAL 8.0000MHZ 16PF SMD	12SMX-B
LFXTAL026386REEL	IQD晶振	CRYSTAL 14.31818MHZ 16PF SMD	12SMX-B
LFXTAL026396REEL	IQD晶振	CRYSTAL 24.5760MHZ 16PF SMD	12SMX-B
LFXTAL026382BULK	IQD晶振	CRYSTAL 11.0592MHZ 16PF SMD	12SMX-B
LFXTAL026388BULK	IQD晶振	CRYSTAL 14.7456MHZ 16PF SMD	12SMX-B
LFXTAL026396BULK	IQD晶振	CRYSTAL 24.5760MHZ 16PF SMD	12SMX-B
LFXTAL026504BULK	IQD晶振	CRYSTAL 30.0000MHZ 16PF SMD	12SMX-B
