日本电波32.768K晶体,NX2012SA-32.768K-STD-MUB-1,6G视听应用晶振，尺寸2.0*1.2mm,频率为32.768KHZ，2012mm贴片晶振，无源谐振器，石英晶体谐振器，石英贴片晶振，无源晶体，SMD晶振，32.768K贴片晶振，32.768KHZ时钟晶振，音叉晶体，两脚贴片晶振，低损耗无源晶体，高品质晶振，小型设备晶振，移动通信专用晶振，OA办公自动化专用晶振，仪器设备晶振，6G网络专用无源晶振，蓝牙耳机晶振，无线产品专用晶振.
NDK石英晶振产品被广泛应用于各个领域之中，尤其是移动通信、OA(办公自动化)的最佳电气特性和视听应用，以及6G网络产品等领域.日本电波32.768K晶体,NX2012SA-32.768K-STD-MUB-1,6G视听应用晶振.

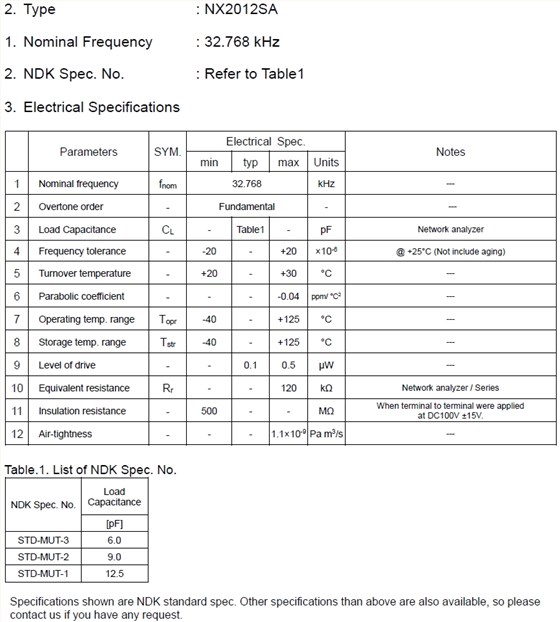

日本电波32.768K晶体,NX2012SA-32.768K-STD-MUB-1,6G视听应用晶振参数表
Parameters
SYM.
ElectricalSpec.
Notes
min
typ
max
Units
Nominal frequency
fnom
32.768
kHz
---
Overtone order
-
Fundamental
-
---
Load Capacitance
CL
-
Table1
-
pF
Network analyzer
Frequency tolerance
-
-20
-
+20
×10-6
@ +25°C (Not include aging)
Turnover temperature
-
+20
-
+30
°C
---
Parabolic coefficient
-
-
-
-0.04
ppm/。C2
---
Operating temp. range
Topr
-40
-
+125
°C
---
Storage temp. range
Tstr
-40
-
+125
°C
---
Level of drive
-
-
0.1
0.5
µW
---
Equivalent resistance
Rr
-
-
120
kΩ
Network analyzer / Series
Insulation resistance
-
500
-
-
M?
When terminal to terminal were applied
at DC100V ±15V.
Air-tightness
-
-
-
1.1×10-9
Pa m3/s
---

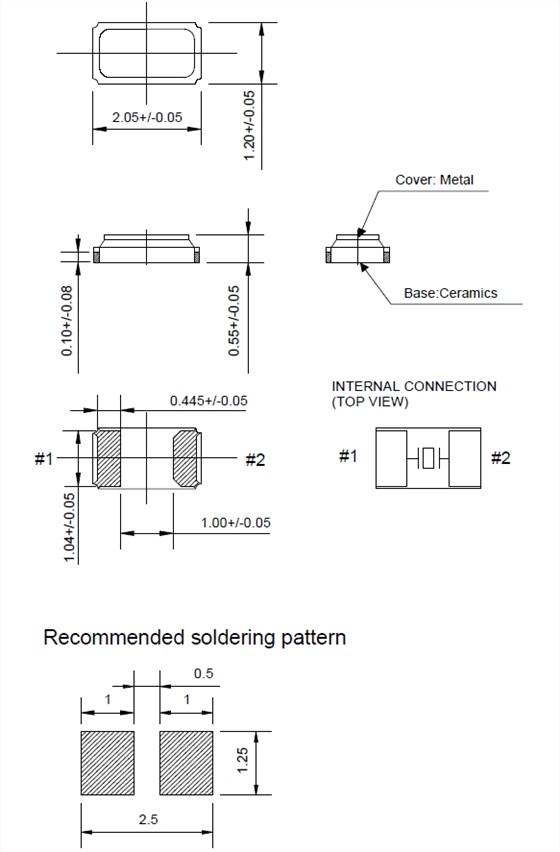

日本电波32.768K晶体,NX2012SA-32.768K-STD-MUB-1,6G视听应用晶振尺寸图

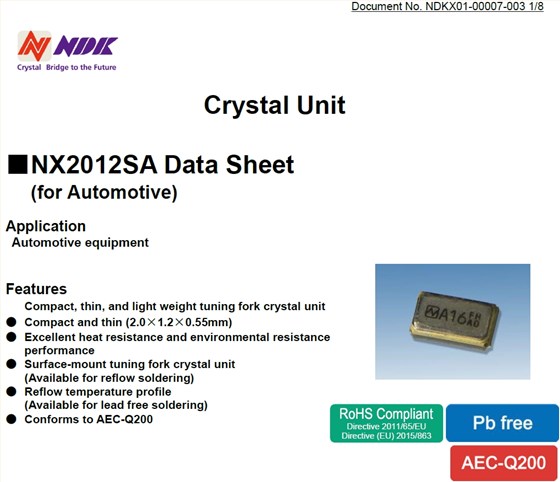

产品特性：
紧凑、轻薄，和轻质音叉晶体单元。
紧凑型和薄(2.0×1.2×0.55毫米)
表面贴装音叉晶体单元(可用于回流焊)
回流温度曲线(适用于无铅焊接)
| Model | Nominal frequency[kHz] | Specification number | 晶振厂家 | Package size(LxW)[mm] | Package size(H)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] |
| NX1610SE | 32.768 | STD-MUD-4 | 日本电波32.768K晶体 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-5 | 日本电波32.769K晶体 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-6 | 日本电波32.770K晶体 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-1 | 日本电波32.771K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-2 | 日本电波32.772K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-3 | 日本电波32.773K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-8 | 日本电波32.774K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-9 | 日本电波32.775K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-10 | 日本电波32.776K晶体 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUT-1 | 日本电波32.777K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-2 | 日本电波32.778K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-3 | 日本电波32.779K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-11 | 日本电波32.780K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-12 | 日本电波32.781K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-13 | 日本电波32.782K晶体 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUA-8 | NDK晶振 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-9 | 日本电波32.784K晶体 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-14 | 日本电波32.785K晶体 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-17 | 日本电波32.786K晶体 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-18 | 日本电波32.787K晶体 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-19 | 日本电波32.788K晶体 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUS-2 | 日本电波32.789K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-3 | 日本电波32.790K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-4 | 日本电波32.791K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-5 | 日本电波32.792K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-6 | 日本电波32.793K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-7 | 日本电波32.794K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-1 | 日本电波32.795K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-2 | 日本电波32.796K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-3 | 日本电波32.797K晶体 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
