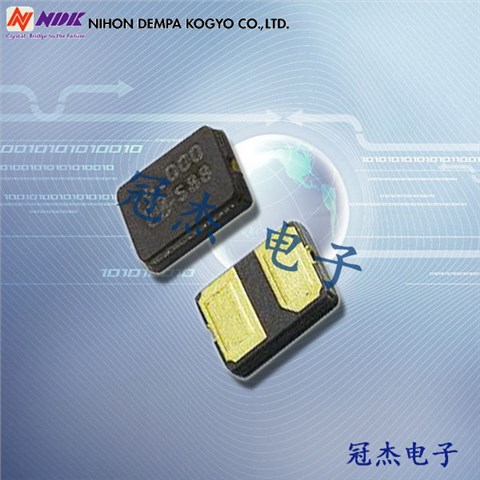

NX3225GB车载应用晶振,NDK环保晶振,NX3225GB-24.576MHz-STD-CRA-2，尺寸3.2*2.5mm,频率24.576MHZ，日本电波晶体，日本进口晶振，无源贴片晶振，SMD晶振，陶瓷晶振，两脚贴片晶振，3225mm贴片晶振，无源晶振，陶瓷谐振器，贴片陶瓷晶体，无铅环保晶振，车载专用晶振，汽车音响晶振，网络设备晶振，通信设备晶振，多媒体设备晶振，仪器仪表晶振，低损耗晶振，耐热性晶振，低耗能晶振，低功耗晶振，产品具有优异的耐热、耐振动等环境性能和耐震强度等特点。
谐振器非常适合用于汽车音响，网络设备，通信设备，多媒体设备，仪器仪表等应用场景.NX3225GB车载应用晶振,NDK环保晶振,NX3225GB-24.576MHz-STD-CRA-2.

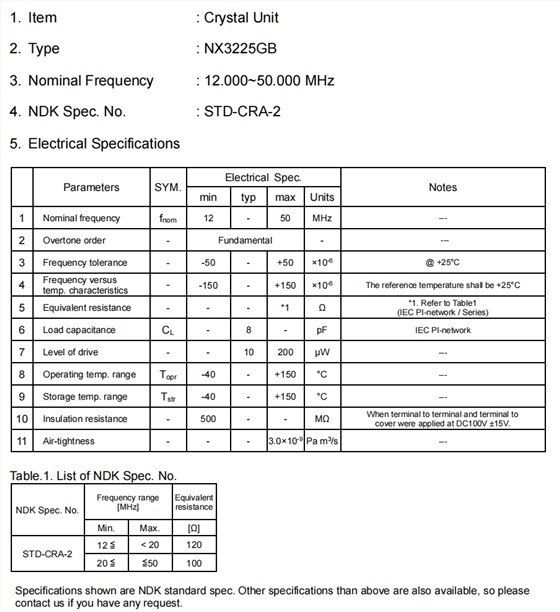

NX3225GB车载应用晶振,NDK环保晶振,NX3225GB-24.576MHz-STD-CRA-2 参数表
| Parameters | SYM. | ElectricalSpec. | Notes | ||||||||||||||||||||||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||||||||||||||||||||||
| Nominal frequency | fnom |
|
24.576 |
|
MHz | --- | |||||||||||||||||||||||||||||||||||
| Overtone order | - | Fundamental | - | --- | |||||||||||||||||||||||||||||||||||||
| Frequency tolerance | - | -50 | - | +50 | ×10-6 | @ +25°C | |||||||||||||||||||||||||||||||||||
|
Frequency versus temp. characteristics |
- | -150 | - | +150 | ×10-6 | The reference temperature shall be +25°C | |||||||||||||||||||||||||||||||||||
| Equivalent resistance | - | - | - | *1 | Ω |
*1. Refer to Table1 (IEC PI-network / Series) |
|||||||||||||||||||||||||||||||||||
| Load capacitance | CL | - | 8 | - | pF | IEC PI-network | |||||||||||||||||||||||||||||||||||
| Level of drive | - | - | 10 | 200 | µW | --- | |||||||||||||||||||||||||||||||||||
| Operating temp. range | Topr | -40 | - | +150 | °C | --- | |||||||||||||||||||||||||||||||||||
| Storage temp. range | Tstr | -40 | - | +150 | °C | --- | |||||||||||||||||||||||||||||||||||
| Insulation resistance | - | 500 | - | - | MΩ |
When terminal to terminal and terminal to cover were applied at DC100V ±15V. |
|||||||||||||||||||||||||||||||||||
| Air-tightness | - | - | - | 3.0×10-9 | Pa m3/s | --- | |||||||||||||||||||||||||||||||||||

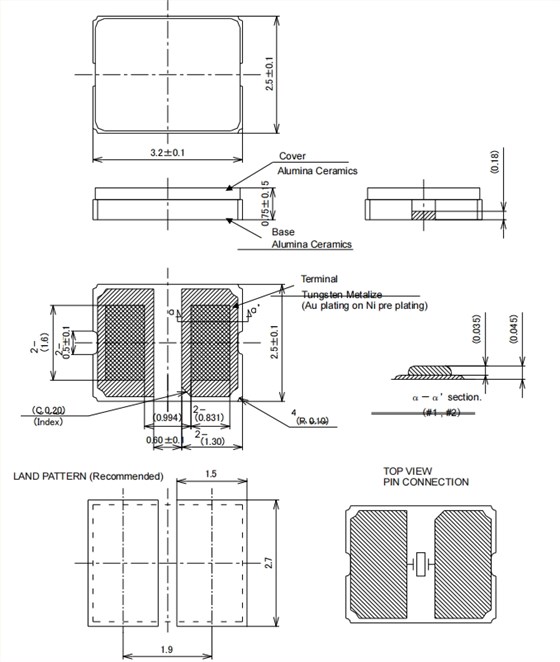

NX3225GB车载应用晶振,NDK环保晶振,NX3225GB-24.576MHz-STD-CRA-2 尺寸图
NX3225GB车载应用晶振,NDK环保晶振,NX3225GB-24.576MHz-STD-CRA-2

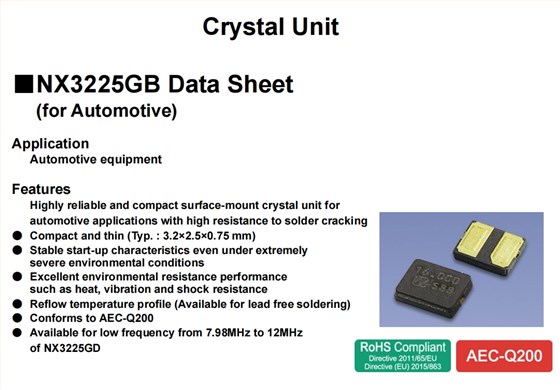

SMD晶振产品特性：
高度可靠和用于汽车应用的紧凑型表面贴装晶体单元，具有高抗焊料开裂性
紧凑型和薄(典型。:3.2×2.5×0.75毫米)
即使在极端恶劣的环境条件下也能保持稳定的启动特性
优异的耐热、耐振动等环境性能和耐震强度
回流温度曲线(适用于无铅焊接)
符合AEC-Q200
还提供用于7.98MHz至12MHz低频的NX3225GD。
| Model | NDK晶振频率 | Specification number | Package size(LxW)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] | Frequency tolerance[ppm] | Frequency temperature characteristics[ppm] |
| NX3225SA | 24 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 | ±50 |
| NX3225SA | 25 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 | ±50 |
| NX3225SA | 40 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 | ±50 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 | ±50 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 | ±50 |
| NX3225GA | 9.844 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 10 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 10.245 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 10.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 11.059 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 11.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 11.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 11.853 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12.166 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12.288 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12.58 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 12.8 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.08 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.081 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.107 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.253 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.521 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.529 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.559 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 13.56 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 14.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 14.745 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 14.746 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 15.36 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 15.97 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 15.974 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 15.974 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.384 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.667 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.667 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.67 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.757 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.92 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 16.934 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 18 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 18.08 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 18.37 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 18.37 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 18.432 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 19.2 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 19.661 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 20 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 21.949 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 22.481 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 22.579 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 22.579 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.305 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.54 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 24.576 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 25 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 25.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 25.805 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 26 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 26.998 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 27 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 27.12 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 27.6 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.224 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.322 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.63 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.636 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.636 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 28.636 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 29.458 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 30 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 30.32 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 30.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 30.72 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 31.25 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 32 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 32.458 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 32.768 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.2 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.3 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.33 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.868 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 33.869 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 36 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 36.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 36.48 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 36.864 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 37 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 38 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 40 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 40.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 41 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 41.6 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 42 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 44 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 48 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 49.152 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 50 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 | ±30 |
| NX3225GA | 10 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 10.24 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 12 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 12.27 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 12.8 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 13.56 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 14 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 14.318 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 14.746 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 16 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 16.66 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 18.432 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 20 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 24 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 24.305 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 24.576 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 24.701 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 25 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 26 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 27 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 27.12 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 28.63 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 28.636 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 28.636 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 28.636 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 30 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 32 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 33 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 40 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 48 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GA | 50 | STD-CRA-1 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 12 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 12.288 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 12.5 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 13.5 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 14 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 14.3 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 14.625 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 16 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 16.004 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 16.25 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 16.384 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 16.61 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 18 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 18.08 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 18.432 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 19.8 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 19.92 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 19.98 | STD-CRA-2 | 3225晶体谐振器 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 20 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 22.579 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 24 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 24.576 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 25 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 26 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 27 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 28 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 30 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 32 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 40 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 48 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GB | 50 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 7.998 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 8 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 8.018 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 8.192 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 9.18 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 9.185 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 9.509 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 9.844 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 9.99 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 10 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 11 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 11.059 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX3225GD | 11.29 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 | ±150 |
| NX5032GA | 8 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 8.192 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9.216 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9.519 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9.6 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9.83 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 9.844 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 10 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 10.178 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 11.059 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 11.29 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12.288 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12.58 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12.732 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 12.75 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.081 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.226 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.4 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.44 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.56 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 13.824 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.188 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.297 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.3 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.318 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.4 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 14.746 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 15 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 15.36 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 15.968 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 15.974 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 15.978 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.013 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.384 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.589 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.6 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.667 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.67 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.7 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.777 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.9 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.92 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 16.934 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 17.328 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 17.581 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 17.734 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 18 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 18.432 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.07 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.07 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.2 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.312 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.313 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 19.661 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 20 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 20.25 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 20.48 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 20.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 20.945 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 22 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 22.118 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 22.579 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 22.58 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.191 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.288 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.305 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.504 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.545 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 24.576 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 25 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 25.1 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 25.14 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 25.4 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 26 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 26.973 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 27 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
| NX5032GA | 27.12 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 | ±30 |
NDK晶振,32.768K,NX1610SA晶振
希华晶振,贴片晶振,GX-50322晶振
NDK晶振,贴片晶振,NX3225SA、NX3225SC晶振
NDK晶振,石英晶体谐振器,NX5032GA、NX5032GB晶振
KDS晶振,32.768K,DST310S晶振,1TJF090DP1AI067
KDS晶振,贴片晶振,DSX211SH晶振
KDS晶振,贴片晶振,DSX321G晶振,1C225000BC0AV
FD1200028,有源晶振,百利通亚陶电子,石英晶体振荡器
