康泰克石英晶体,QC25汽车充电桩晶振,QC2524.0000F12B22R，尺寸2.5*2.0mm,频率24MHZ，美国进口晶振，美国Qantek晶振，Qantek贴片晶振，石英振动子，24MHZ贴片晶振，2520mm石英晶振，无源晶振，石英贴片晶振，贴片石英晶体，石英晶体谐振器，石英晶振，SMD晶振，无源贴片晶振，绿色环保晶振，低功耗晶振，低损耗晶振，低耗能晶振，高质量晶振，高性能晶振，汽车充电桩晶振，无线通信晶振，测试设备晶振，高密度应用晶振，多媒体设备晶振，小型设备晶振，娱乐设备晶振，便携式设备晶振，产品具备超高的稳定性能。
无源晶振产品常常用于汽车充电桩，无线通信，测试设备，高密度应用，多媒体设备，小型设备，娱乐设备，便携式设备等领域。康泰克石英晶体,QC25汽车充电桩晶振,QC2524.0000F12B22R.
康泰克石英晶体,QC25汽车充电桩晶振,QC2524.0000F12B22R 参数表
| General Specifications | |||||||||||||||||||
| Frequency Range | 24.000MHz (Fundamental) | ||||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±50ppm (±30ppm standard) | ||||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | ||||||||||||||||||
| Shunt Capacitance C0 | 5.0pF max. | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||||
| Drive Level | 100μW typ. | ||||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||||

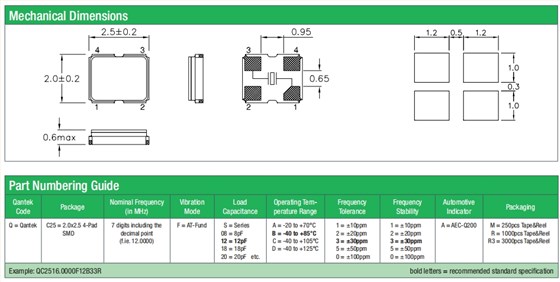

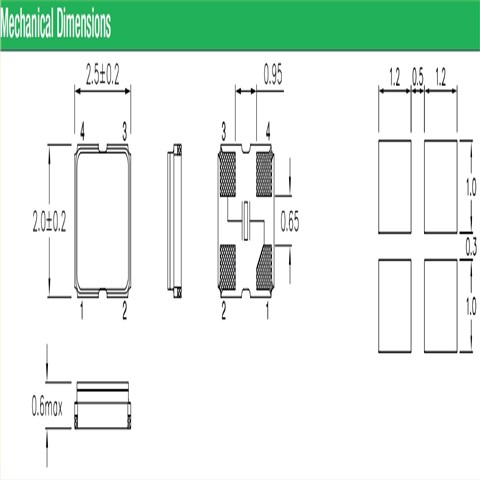

康泰克石英晶体,QC25汽车充电桩晶振,QC2524.0000F12B22R 尺寸图
康泰克石英晶体,QC25汽车充电桩晶振,QC2524.0000F12B22R
SMD晶振产品特性：
高度低，适用于薄型设备
陶瓷包装和金属盖确保可靠性
具有紧密的公差和稳定性
优异的老化
