QC5A汽车氛围灯晶振,QC5A36.0000F12B33R,康泰克Qantek晶振，尺寸5.0*3.2mm,频率36MHZ，康泰克石英晶振，Qantek晶体谐振器，欧美进口晶振，石英水晶振动子，石英晶振，四脚贴片晶振，SMD晶振，无源晶振，5032mm贴片晶振，石英晶体谐振器，贴片石英晶振，无源贴片晶振，SMD晶体谐振器，环保晶振，低功耗晶振，低损耗晶体，高品质晶振，通信应用晶振，测试设备晶振，汽车应用晶振，蓝牙晶振，无线局域网晶振，高密度应用晶振，调制解调器晶振，蜂窝电话晶振，仪器仪表晶振，小型设备晶振，产品具有轻薄小低功耗的特点.石英晶振产品常常用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，蜂窝电话，仪器仪表，小型设备，汽车应用等领域。QC5A汽车氛围灯晶振,QC5A36.0000F12B33R,康泰克Qantek晶振.

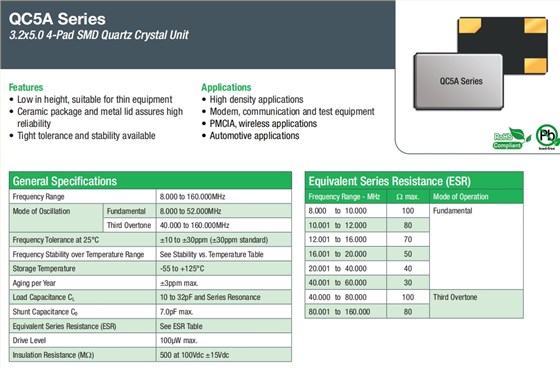

QC5A汽车氛围灯晶振,QC5A36.0000F12B33R,康泰克Qantek晶振 参数表
| General Specifications | |||||||||||||||||
| Frequency Range | 36.000MHz | ||||||||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 52.000MHz | |||||||||||||||
| Third Overtone | 40.000 to 160.000MHz | ||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||
| Drive Level | 100μW max. | ||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||

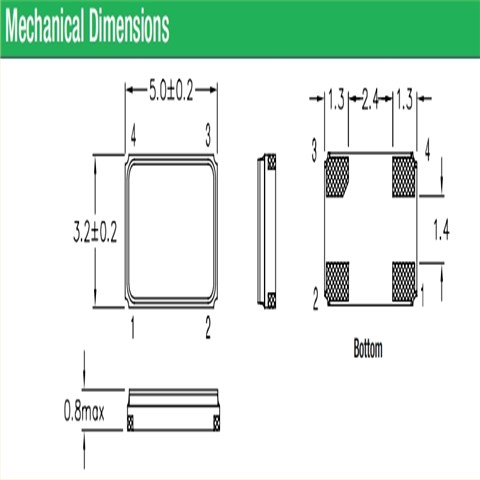

QC5A汽车氛围灯晶振,QC5A36.0000F12B33R,康泰克Qantek晶振 尺寸图
QC5A汽车氛围灯晶振,QC5A36.0000F12B33R,康泰克Qantek晶振
5032晶振产品特性：
高度低，适用于薄型设备
陶瓷包装和金属盖确保可靠性
具有紧密的公差和稳定性
