QVS49P2-21AF16-24.000,QVS晶振,6G路由器晶振

产品简介

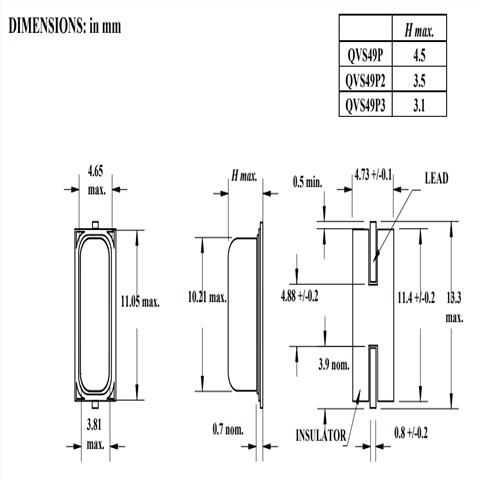

QVS49P2-21AF16-24.000,QVS晶振,6G路由器晶振，尺寸11*3.5mm,频率24MHZ，欧美进口晶振，美国QVS晶振，贴片晶振，SMD晶振，石英贴片晶振，无源晶振，无线通讯晶振，石英晶体谐振器，大尺寸晶振，24MHZ晶振，低功耗晶振，高性能晶振，无源石英晶体，SMD无源晶振，6G路由器晶振，网络设备晶振，局域网专用晶振，数字电视晶振，微处理器时钟专用晶振，具有良好的耐压性能以及可靠性能。

无源晶振产品非常适合用于6G路由器，网络设备，微处理器时钟，蜂窝、SONET、DSP，以及以太网、局域网，数字电视等领域。QVS49P2-21AF16-24.000,QVS晶振,6G路由器晶振.

产品详情

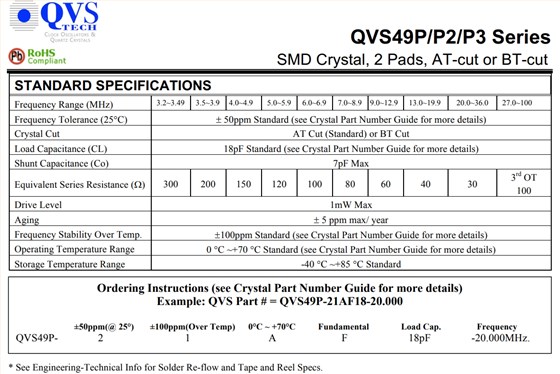

QVS49P2-21AF16-24.000,QVS晶振,6G路由器晶振 参数表

Frequency Range (MHz)	3.2~3.49	3.5~3.9	4.0~4.9	5.0~5.9	6.0~6.9	7.0~8.9	9.0~12.9	13.0~19.9	20.0~36.0	27.0~100
Frequency Tolerance (25°C)	±50ppm Standard (see Crystal Part Number Guide for more details)
Crystal Cut	AT Cut (Standard) or BT Cut
Load Capacitance (CL)	18pF Standard (see Crystal Part Number Guide for more details)
Shunt Capacitance (Co)	7pF Max
Equivalent Series Resistance (Ω)	300	200	150	120	100	80	60	40	30	3rdOT 100
Drive Level	200μW(3.5MHz ~ 10MHz), 500μW(>10MHz)
Aging	±5 ppm max/ year
Frequency Stability Over Temp.	±100ppm Standard (see Crystal Part Number Guide for more details)
Operating Temperature Range	0 °C ~+70 °C Standard (see Crystal Part Number Guide for more details)

Storage Temperature Range	-40 °C ~+85 °C Standard
