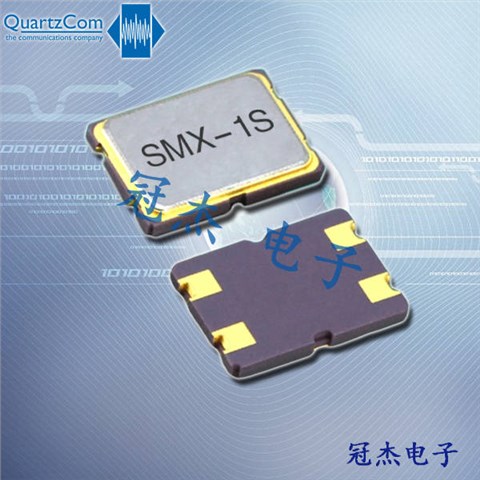

SMX-1S仪器仪表晶振,7050高频晶振,瑞士石英通无源晶振

产品简介

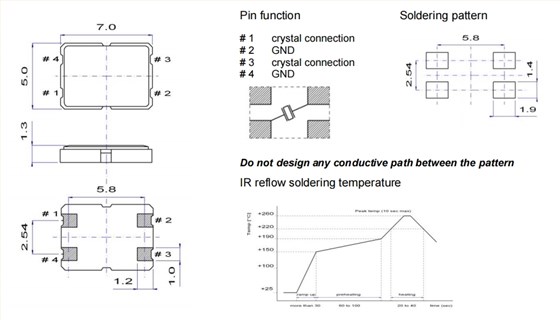

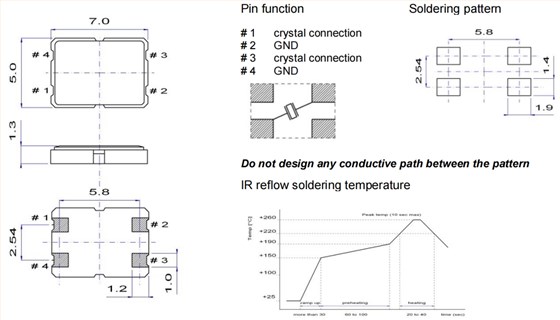

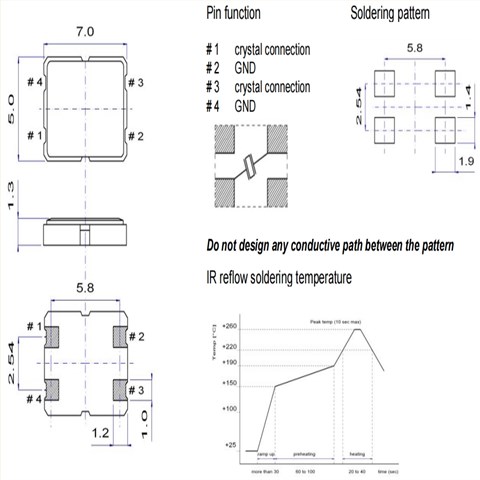

SMX-1S仪器仪表晶振,7050高频晶振,瑞士石英通无源晶振，尺寸7.0*5.0mm,频率范围8~250MHZ，QuartzCom瑞士晶振，石英通石英晶振，石英晶体谐振器，石英贴片晶振，无源石英晶振，SMD晶振，水晶振动子，7050mm贴片晶振，四脚贴片晶振，无源晶振，高频晶振，低功耗晶振，低耗能晶振，高品质晶振，高性能晶振，高精度晶振，数字音频晶振，仪器仪表专用晶振，导航定位晶振，平板电脑晶振，网络应用晶振，影音系统晶振，播放器晶振，具有高性能高精度的特点。

在极端严酷的环境条件下,晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等，高品质晶振产品适合用于数字音频，仪器仪表，导航定位，平板电脑，网络应用，影音系统，播放器等领域。SMX-1S仪器仪表晶振,7050高频晶振,瑞士石英通无源晶振.

产品详情

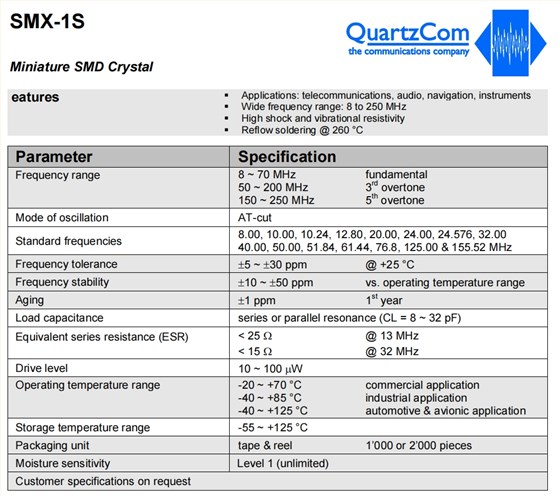

SMX-1S仪器仪表晶振,7050高频晶振,瑞士石英通无源晶振 参数表

Parameter	Specification
Frequency range	8 ~ 70 MHz 50 ~ 200 MHz 150 ~ 250 MHz	fundamental 3rdovertone 5thovertone
Mode of oscillation	AT-cut
Standard frequencies	8.00, 10.00, 10.24, 12.80, 20.00, 24.00, 24.576, 32.00 40.00, 50.00, 51.84, 61.44, 76.8, 125.00 & 155.52 MHz
Frequency tolerance	土5 ~土30 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25Ω < 15Ω	@ 13 MHz @ 32 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’000 pieces
Moisture sensitivity	Level 1 (unlimited)
