X10CB1-32.000MHZ-T,X系列晶体,美国Mmdcomp晶振,2520mm，尺寸2.5*2.0mm,频率32MHZ，欧美进口晶振，麦迪康四脚贴片晶振，无铅环保晶振，2520mm石英晶振，32MHZ无源晶振，无源谐振器，石英贴片晶振，轻薄型晶振，无源晶振，SMD晶振，无线通讯晶振，低损耗晶振，低功耗晶振，低成本晶振，高性能晶振，高质量晶振，小型设备晶振，平板电脑晶振，便携式设备晶振，娱乐设备晶振，智能手机晶振，移动通信晶振，蓝牙音响晶振，具有低成本轻薄型的特点。
石英晶振产品广泛应用于无线设备，小型设备，平板电脑，便携式设备，娱乐设备，智能手机，移动通信，蓝牙音响等应用。X10CB1-32.000MHZ-T,X系列晶体,美国Mmdcomp晶振,2520mm.

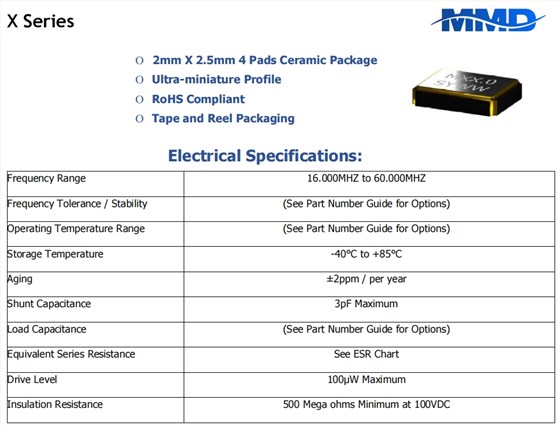

X10CB1-32.000MHZ-T,X系列晶体,美国Mmdcomp晶振,2520mm 参数表
| Frequency Range | 32.000MHZ | |||||||||
| Frequency Tolerance / Stability | (See Part Number Guide for Options) | |||||||||
| Operating Temperature Range | (See Part Number Guide for Options) | |||||||||
| Storage Temperature | -40°C to +85°C | |||||||||
| Aging | ±2ppm / per year | |||||||||
| Shunt Capacitance | 3pF Maximum | |||||||||
| Load Capacitance | (See Part Number Guide for Options) | |||||||||

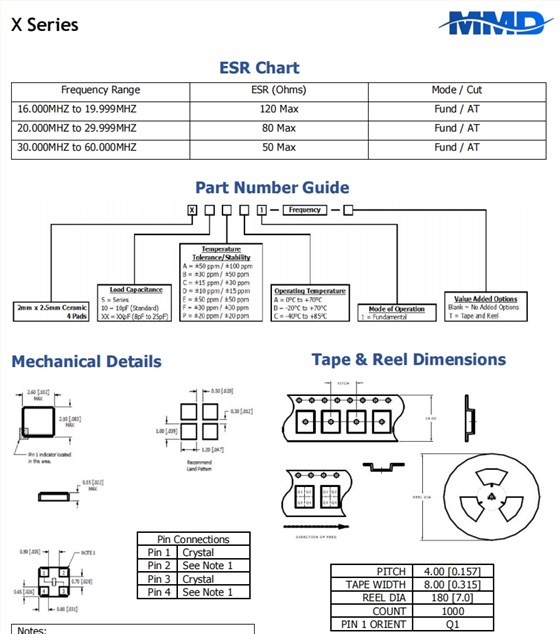

| Equivalent Series Resistance | See ESR Chart | |||||||||
| Drive Level | 100µW Maximum | |||||||||
| Insulation Resistance | 500 Mega ohms Minimum at 100VDC | |||||||||

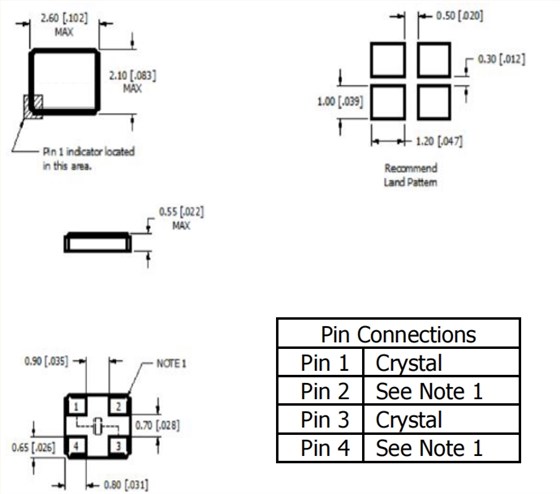

X10CB1-32.000MHZ-T,X系列晶体,美国Mmdcomp晶振,2520mm 尺寸图
X10CB1-32.000MHZ-T,X系列晶体,美国Mmdcomp晶振,2520mm

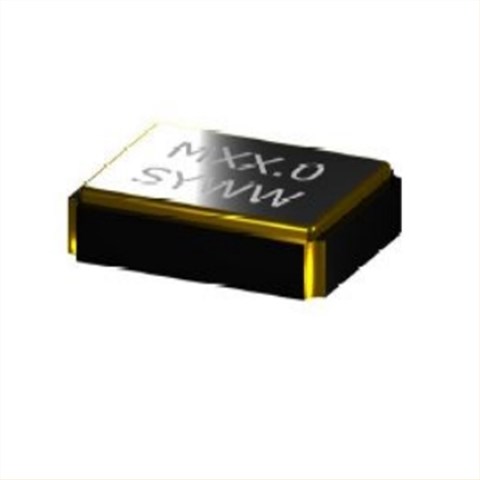

谐振器产品特性：
2mm X 2.5mm 4片陶瓷封装
超小型剖面
符合RoHS
胶带和卷筒包装
| Mfr Part # | Mfr | Description | Series | Frequency | Frequency Stability |
| WC146SMF-32.768KHZ-T | 麦迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC146SM | 32.768 kHz | - |
| DF18CC1-4.000MHZ-T | 麦迪康晶振 | CRYSTAL 4.0000MHZ 18PF SMD | D | 4 MHz | ±30ppm |
| DF18CC1-16.384MHZ-T | 麦迪康晶振 | CRYSTAL 16.3840MHZ 18PF SMD | D | 16.384 MHz | ±30ppm |
| MMC-463F-32.768KHZ-T | 麦迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | MMC | 32.768 kHz | - |
| WC315-32.768KHZ-T | 麦迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC315 | 32.768 kHz | - |
| DF18CC1-9.8304MHZ-T | 麦迪康晶振 | CRYSTAL 9.8304MHZ 18PF SMD | D | 9.8304 MHz | ±30ppm |
| DF18CC1-16.000MHZ-T | 麦迪康晶振 | CRYSTAL 16.0000MHZ 18PF SMD | D | 16 MHz | ±30ppm |
| DF18CC1-10.000MHZ-T | 麦迪康晶振 | CRYSTAL 10.0000MHZ 18PF SMD | D | 10 MHz | ±30ppm |
| DF18CC1-10.240MHZ-T | 麦迪康晶振 | CRYSTAL 10.2400MHZ 18PF SMD | D | 10.24 MHz | ±30ppm |
| DF18CC1-3.6864MHZ-T | 麦迪康晶振 | CRYSTAL 3.6864MHZ 18PF SMD | D | 3.6864 MHz | ±30ppm |
| DF18CC1-4.500MHZ-T | 麦迪康晶振 | CRYSTAL 4.5000MHZ 18PF SMD | D | 4.5 MHz | ±30ppm |
| DF18CC1-15.000MHZ-T | 麦迪康晶振 | CRYSTAL 15.0000MHZ 18PF SMD | D | 15 MHz | ±30ppm |
| DF18CC1-3.579545MHZ-T | 麦迪康晶振 | CRYSTAL 3.579545MHZ 18PF SMD | D | 3.579545 MHz | ±30ppm |
| DF18CC1-13.000MHZ-T | 麦迪康晶振 | CRYSTAL 13.0000MHZ 18PF SMD | D | 13 MHz | ±30ppm |
| DF18CC1-14.31818MHZ-T | 麦迪康晶振 | CRYSTAL 14.31818MHZ 18PF SMD | D | 14.31818 MHz | ±30ppm |
| T10GC1-20.000MHZ-T | 麦迪康晶振 | CRYSTAL 20.0000MHZ 10PF SMD | T | 20 MHz | ±30ppm |
| X10CB1-40.000MHZ-T | 麦迪康晶振 | CRYSTAL 40.0000MHZ 10PF SMD | X | 40 MHz | ±30ppm |
| X10CB1-30.000MHZ-T | 麦迪康晶振 | CRYSTAL 30.0000MHZ 10PF SMD | X | 30 MHz | ±30ppm |
| X10CB1-24.576MHZ-T | 麦迪康晶振 | CRYSTAL 24.5760MHZ 10PF SMD | X | 24.576 MHz | ±30ppm |
| X10CB1-22.1184MHZ-T | 麦迪康晶振 | CRYSTAL 22.1184MHZ 10PF SMD | X | 22.1184 MHz | ±30ppm |
| X10CB1-27.000MHZ-T | 麦迪康晶振 | CRYSTAL 27.0000MHZ 10PF SMD | X | 27 MHz | ±30ppm |
| X10CB1-32.000MHZ-T | 麦迪康晶振 | CRYSTAL 32.0000MHZ 10PF SMD | X | 32 MHz | ±30ppm |
| X10CB1-25.000MHZ-T | Mmdcomp Crystal | CRYSTAL 25.0000MHZ 10PF SMD | X | 25 MHz | ±30ppm |
| DF18CC1-20.000MHZ-T | 麦迪康晶振 | CRYSTAL 20.0000MHZ 18PF SMD | D | 20 MHz | ±30ppm |
| DF18CC1-24.576MHZ-T | 麦迪康晶振 | CRYSTAL 24.5760MHZ 18PF SMD | D | 24.576 MHz | ±30ppm |
| DF18CC1-4.433619MHZ-T | 麦迪康晶振 | CRYSTAL 4.433619MHZ 18PF SMD | D | 4.433619 MHz | ±30ppm |
| DF18CC1-19.6608MHZ-T | 麦迪康晶振 | CRYSTAL 19.6608MHZ 18PF SMD | D | 19.6608 MHz | ±30ppm |
| DF18CC1-14.7456MHZ-T | 麦迪康晶振 | CRYSTAL 14.7456MHZ 18PF SMD | D | 14.7456 MHz | ±30ppm |
| DF18CC1-30.000MHZ-T | 麦迪康晶振 | CRYSTAL 30.0000MHZ 18PF SMD | D | 30 MHz | ±30ppm |
| DF18CC1-16.9344MHZ-T | 麦迪康晶振 | CRYSTAL 16.9344MHZ 18PF SMD | D | 16.9344 MHz | ±30ppm |
| DF18CC1-6.144MHZ-T | 麦迪康晶振 | CRYSTAL 6.1440MHZ 18PF SMD | D | 6.144 MHz | ±30ppm |
| DF18CC1-7.3728MHZ-T | 麦迪康晶振 | CRYSTAL 7.3728MHZ 18PF SMD | D | 7.3728 MHz | ±30ppm |
| DF18CC1-4.194304MHZ-T | 麦迪康晶振 | CRYSTAL 4.194304MHZ 18PF SMD | D | 4.194304 MHz | ±30ppm |
| DF18CC1-18.432MHZ-T | 麦迪康晶振 | CRYSTAL 18.4320MHZ 18PF SMD | D | 18.432 MHz | ±30ppm |
| DF18CC1-15.360MHZ-T | 麦迪康晶振 | CRYSTAL 15.3600MHZ 18PF SMD | D | 15.36 MHz | ±30ppm |
| DF18CC1-6.7458MHZ-T | 麦迪康晶振 | CRYSTAL 6.7458MHZ 18PF SMD | D | 6.7458 MHz | ±30ppm |
| DF18CC1-18.000MHZ-T | 麦迪康晶振 | CRYSTAL 18.0000MHZ 18PF SMD | D | 18 MHz | ±30ppm |
| DF18CC1-12.000MHZ-T | 麦迪康晶振 | CRYSTAL 12.0000MHZ 18PF SMD | D | 12 MHz | ±30ppm |
| DF18CC1-4.9152MHZ-T | 麦迪康晶振 | CRYSTAL 4.9152MHZ 18PF SMD | D | 4.9152 MHz | ±30ppm |
| DF18CC1-28.63636MHZ-T | 麦迪康晶振 | CRYSTAL 28.63636MHZ 18PF SMD | D | 28.63636 MHz | ±30ppm |
| DF18CC1-6.000MHZ-T | 麦迪康晶振 | CRYSTAL 6.0000MHZ 18PF SMD | D | 6 MHz | ±30ppm |
| DF18CC1-5.000MHZ-T | 麦迪康晶振 | CRYSTAL 5.0000MHZ 18PF SMD | D | 5 MHz | ±30ppm |
| DF18CC1-13.500MHZ-T | 麦迪康晶振 | CRYSTAL 13.5000MHZ 18PF SMD | D | 13.5 MHz | ±30ppm |
| DF18CC1-24.000MHZ-T | 麦迪康晶振 | CRYSTAL 24.0000MHZ 18PF SMD | D | 24 MHz | ±30ppm |
| DF18CC1-11.0592MHZ-T | 麦迪康晶振 | CRYSTAL 11.0592MHZ 18PF SMD | D | 11.0592 MHz | ±30ppm |
| DF18CC1-9.216MHZ-T | 麦迪康晶振 | CRYSTAL 9.2160MHZ 18PF SMD | D | 9.216 MHz | ±30ppm |
| DF18CC1-12.288MHZ-T | 麦迪康晶振 | CRYSTAL 12.2880MHZ 18PF SMD | D | 12.288 MHz | ±30ppm |
| T10GC1-22.1184MHZ-T | 麦迪康晶振 | CRYSTAL 22.1184MHZ 10PF SMD | T | 22.1184 MHz | ±30ppm |
| T10GC1-24.000MHZ-T | 麦迪康晶振 | CRYSTAL 24.0000MHZ 10PF SMD | T | 24 MHz | ±30ppm |
| T10GC1-19.200MHZ-T | 麦迪康晶振 | CRYSTAL 19.2000MHZ 10PF SMD | T | 19.2 MHz | ±30ppm |
| T10GC1-24.576MHZ-T | 麦迪康晶振 | CRYSTAL 24.5760MHZ 10PF SMD | T | 24.576 MHz | ±30ppm |
| T10GC1-16.000MHZ-T | 麦迪康晶振 | CRYSTAL 16.0000MHZ 10PF SMD | T | 16 MHz | ±30ppm |
| T10GC1-16.384MHZ-T | 麦迪康晶振 | CRYSTAL 16.3840MHZ 10PF SMD | T | 16.384 MHz | ±30ppm |
| T10GC1-48.000MHZ-T | 麦迪康晶振 | CRYSTAL 48.0000MHZ 10PF SMD | T | 48 MHz | ±30ppm |
| X10CB1-16.000MHZ-T | 麦迪康晶振 | CRYSTAL 16.0000MHZ 10PF SMD | X | 16 MHz | ±30ppm |
| X10CB1-16.3676MHZ-T | 麦迪康晶振 | CRYSTAL 16.3676MHZ 10PF SMD | X | 16.3676 MHz | ±30ppm |
| X10CB1-26.000MHZ-T | 麦迪康晶振 | CRYSTAL 26.0000MHZ 10PF SMD | X | 26 MHz | ±30ppm |
