爱普生LV-PECL晶振,X1G0042510009,SG3225EAN振荡器,6G发射器晶振

爱普生LV-PECL晶振,X1G0042510009,SG3225EAN振荡器,6G发射器晶振，尺寸3.2*2.5mm,频率212.5MHZ,支持输出LV-PECL，LV-PECL输出晶振，差分晶体振荡器，有源晶体振荡器，OSC晶振，石英晶体振荡器，六脚石英差分晶振，低电压振荡器，低相位差分晶振，高精度测试设备晶振，低耗能差分晶振，低功耗振荡器，无线通信晶振，6G放大器晶振，交换机晶振，仪器仪表专用振荡器.

有源晶体振荡器产品主要应用交换机，无线通信，6G放大器，仪器仪表，测试与测量，路由器，光模块，6G应用产品等领域。爱普生LV-PECL晶振,X1G0042510009,SG3225EAN振荡器,6G发射器晶振.

爱普生LV-PECL晶振,X1G0042510009,SG3225EAN振荡器,6G发射器晶振 参数表

Item

Symbol

Specifications

Conditions / Remarks

LV-PECL

LVDS

SG3225EAN / SG5032EAN /
SG7050EAN

SG3225VAN / SG5032VAN /
SG7050VAN

Output frequency range

212.5MHz

Please contact us about available frequencies.

Supply voltage

VCC

K: 2.5 V - 10 % to 3.3 V + 10 %

Storage temperature

T_stg

-40°C to +125°C

Storage as single product.

Operating temperature

T_use

B: -20°C to +70°C, G: -40°C to +85°C

Frequency tolerance

f_tol

J:±50×10-6, E:±30×10-6, C:±20×10-6

Current consumption

ICC

65 mA Max.

30 mA Max.

OE = Vcc, L_ECL = 50 Q or L_LVDS = 100 Q

Disable current

I_dis

20 mA Max.

OE = GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

VCC- 1.0 V to VCC- 0.8 V

−

DC characteristics

VOL

VCC- 1.78 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

250 mV to 450 mV

VOD1, VOD2

DC characteristics

VOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.15 V to 1.35 V

VOS1, VOS2

VOS

−

150 mV Max .

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Q

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Q

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin .

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr/ tf

350 ps Max.

300 ps Max.

LV-PECL:Between 20 % and 80 % of (VOH-VOL) .
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage

Start-up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

0.6 ps Max .*1

Offset frequency: 12 kHz to 20 MHz

Frequency aging

f_age

±5×10-6/ year Max.

+25°C, First year, VCC= 2.5 V, 3.3 V

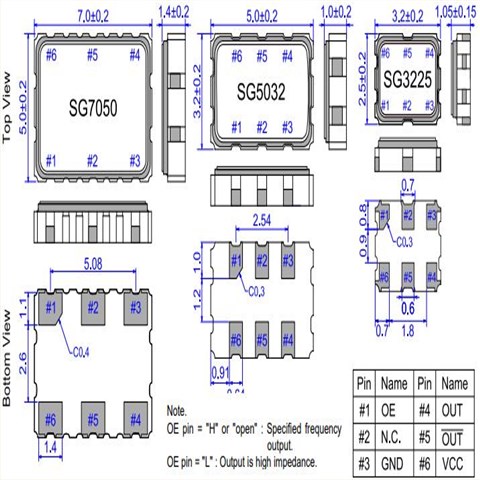

爱普生LV-PECL晶振,X1G0042510009,SG3225EAN振荡器,6G发射器晶振 尺寸图

有源晶振产品特性：

通过锁相环技术实现了宽频率范围

基本AT晶体单位

频率范围:73.5 MHz至700 MHz

电源电压:2.5 V至3.3 V

功能:输出使能(OE)

输出:LV-PECL或LVDS

更多相关EPSON晶振型号

编码	Model/型号	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压	Ope Temperature/工作温度
X1G0023510132	SG-770SCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510808	SG-770SCD	200.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023610004	SG-770SDD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610007	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610008	SG-770SDD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610012	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1G0023610103	SG-770SDD	122.880000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610105	SG-770SDD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0028210009	SG-771PCD	156.253906 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210010	SG-771PCD	156.258600 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-10 to 70 °C
X1G0028210107	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210109	SG-771PCD	161.132800 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210115	SG-771PCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210116	SG-771PCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210117	SG-771PCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210118	SG-771PCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210121	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0042510001	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510002	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510003	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510004	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510006	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510007	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510008	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510009	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510010	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510011	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510012	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510013	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510014	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510015	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510016	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510017	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510018	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510021	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510022	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510024	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510025	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510026	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510027	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510028	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510029	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	差分晶体振荡器	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
