爱普生晶振,SG7050EBN差分晶振,X1G0045110005,6G无线模块晶振

爱普生晶振,SG7050EBN差分晶振,X1G0045110005,6G无线模块晶振，尺寸7.0*5.0mm,频率122.88MHZ,支持输出LV-PECL，石英差分晶振，OSC振荡器，差分晶振，LV-PECL振荡器，日本进口晶振，爱普生差分振荡器，低抖动振荡器，低电压差分晶振，低耗能差分振荡器，无线设备差分晶振，光模块差分晶振，高品质差分振荡器，有源差分晶振，低相噪差分晶振，产品适用于智能产品，仪器设备，光模块，无线设备等领域。

差分晶体振荡器(DXO)是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，具有低电平,低抖动，低功耗等特性。爱普生晶振,SG7050EBN差分晶振,X1G0045110005,6G无线模块晶振.

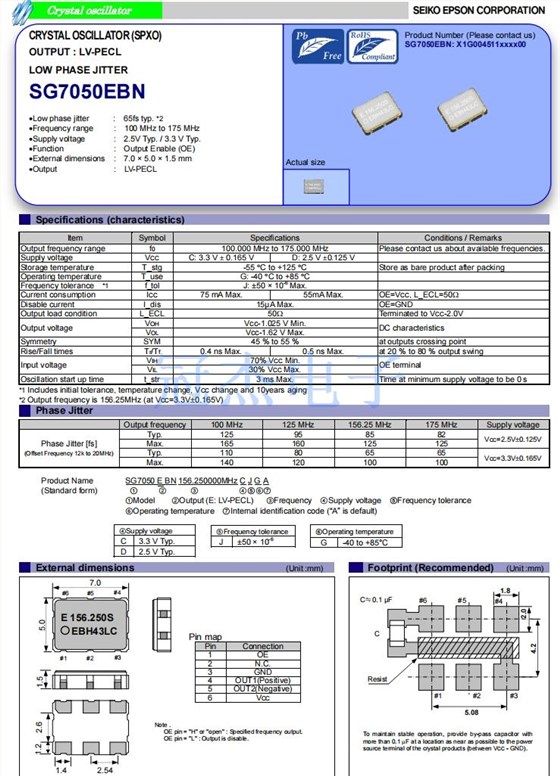

爱普生晶振,SG7050EBN差分晶振,X1G0045110005,6G无线模块晶振 参数表

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

122.88MHz

Please contact us about available frequencies.

Supply voltage

VCC

C: 3.3 V土0.165 V

D: 2.5 V土0.125 V

Storage temperature

T_stg

-55。C to +125。C

Store as bare product after packing

Operating temperature

T_use

G: -40。C to +85。C

Frequency tolerance*1

f_tol

J: ±50 × 10-6Max.

Current consumption

ICC

75 mA Max.

55mA Max.

OE=VCC, L_ECL=50Ω

Disable current

I_dis

15μA Max.

OE=GND

Output load condition

L_ECL

50Ω

Terminated to VCC-2.0V

Output voltage

VOH

Vcc-1.025 V Min.

DC characteristics

VOL

Vcc-1.62 V Max.

Symmetry

SYM

45 % to 55 %

at outputs crossing point

Rise/Fall times

Tr/Tf

0.4 ns Max.

0.5 ns Max.

at 20 % to 80 % output swing

Input voltage

VIH

70% VCCMin.

OE terminal

VIL

30% VCCMax.

Oscillation start up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

	Phase Jitter
		Output frequency	100 MHz	125 MHz	156.25 MHz	175 MHz	Supply voltage
Phase Jitter [fs] (Offset Frequency 12k to 20MHz)		Typ.	125	95	85	82	VCC=2.5V土0.125V
		Max.	165	160	125	125
		Typ.	110	80	65	65	VCC=3.3V土0.165V
		Max.	140	120	100	100

爱普生晶振,SG7050EBN差分晶振,X1G0045110005,6G无线模块晶振 尺寸图

产品特性：

低相位抖动:65fs

频率范围:100mhz~175mhz

供电电压:2.5V/3.3V类型

功能:输出使能(OE)

外部尺寸:7.0×5.0×1.5 mm

输出:LV-PECL

更多相关EPSON日本爱普生晶振型号

编码	Model/型号	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压	Ope Temperature/工作温度
X1G0042510029	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510048	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510049	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510050	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510051	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510053	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510054	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510055	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510056	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510059	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510060	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510062	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510063	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510064	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510065	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510066	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510067	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510068	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510069	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510070	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510072	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510073	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510074	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510079	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510080	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510083	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510084	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510087	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510088	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510091	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510092	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510100	SG3225EAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510103	SG3225EAN	644.531200 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510104	SG3225EAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510105	SG3225EAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510106	SG3225EAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510107	SG3225EAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510111	SG3225EAN	133.330000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510112	SG3225EAN	144.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510113	SG3225EAN	174.703100 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510114	SG3225EAN	320.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510115	SG3225EAN	500.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510121	SG3225EAN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710001	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL差分有源振荡器	2.250 to 3.630 V	-40 to 85 °C
X1G0042710002	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710004	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710005	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710006	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710007	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710008	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710009	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710010	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710011	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710012	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710013	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710014	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710015	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710016	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710017	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710019	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710020	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710021	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710023	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710024	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710025	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
