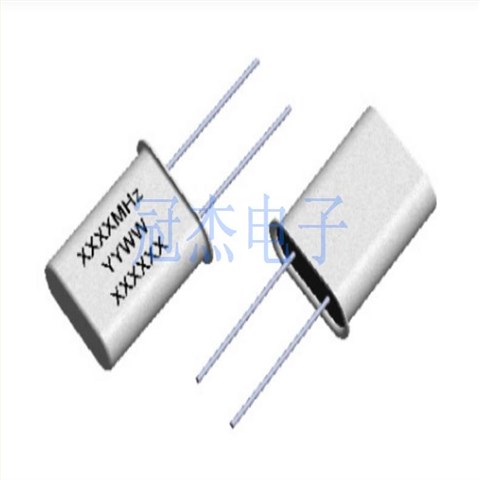

X8GEBGNHNF-16.384000,无源晶振,石英晶体

产品简介

X8GEBGNHNF-16.384000,无源晶振,石英晶体，物料编码为X8GEBGNHNF-16.384000，型号为X8系列晶振，频率为16.384MHz，精度为3ppm，负载电容为18pF，工作温度为-55℃~125℃，尺寸为11.2*4.8mm，插件晶振，晶振厂家，泰艺晶振，台产晶振，石英晶体，无源晶振，广泛应用在智能冰箱，智能空调，智能洗碗机，智能微波炉等产品。

产品详情

1XQJX

2GGCS

TY-2

X8GEBGNHNF-16.384000,无源晶振,石英晶体

参数表
型号	X8
频率	16.348MHz
精度	±3ppm
负载电容	18pF
工作温度	-55℃-125℃
尺寸	11.2*4.8mm

3CC

TY-3

X8GEBGNHNF-16.384000,无源晶振,石英晶体

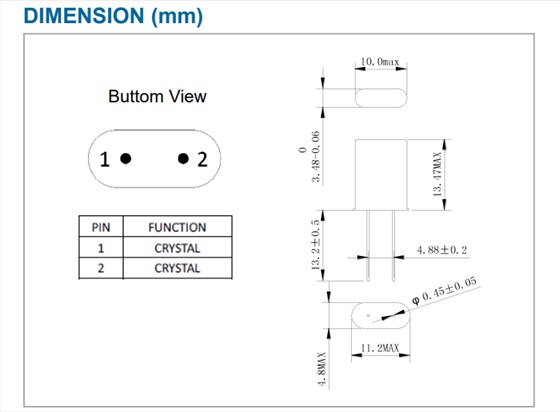

X8 43U尺寸图

原厂编码	参数描述	型号	频率	频率稳定度	频率容差	负载电容	工作温度
XXGEGLNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	冠杰电子	±30ppm	18pF	-40°C ~ 85°C
XXBBBCNANF-16.000000	CRYSTAL 16.0000MHZ 9PF SMD	XX	16 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
XXCCCLNANF-49.152000	CRYSTAL 49.1520MHZ 10PF SMD	XX	49.152 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	XX	25 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
XXHCCLNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±20ppm	±20ppm	20pF	-40°C ~ 85°C
XXGGGINANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±50ppm	±50ppm	18pF	-10°C ~ 60°C
XXEBCLNANF-40.000000	CRYSTAL 40.0000MHZ 15PF SMD	XX	40 MHz	±20ppm	±10ppm	15pF	-40°C ~ 85°C
XXDCCCNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±20ppm	±20ppm	12pF	-20°C ~ 70°C
XXGPPLNANF-20.000000	CRYSTAL 20.0000MHZ 18PF SMD	XX	20 MHz	±15ppm	±15ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
XXBBPLNANF-32.000000	CRYSTAL 32.0000MHZ 9PF SMD	XX	32 MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
XXDPCLNAOF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XX	16 MHz	±15ppm	±15ppm	12pF	-40°C ~ 85°C
XXDBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 12PF SMD	XX	24 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
XXBBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 9PF SMD	XX	24 MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
XXCBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 10PF SMD	XX	24 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-48.000000	CRYSTAL 48.0000MHZ 10PF SMD	XX	48 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
XXDBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
X8HCAKNHNF-10.000000	CRYSTAL 10.0000MHZ 20PF THOLE	X8	10 MHz	-	±2ppm	20pF	-55°C ~ 125°C
X8GEBGNHNF-16.384000	CRYSTAL 16.384MHZ 18PF THOLE	X8	16.384 MHz	-	±3ppm	18pF	-55°C ~ 125°C
XXACCLNANF-48.000000	CRYSTAL 48.0000MHZ 8PF SMD	XX	48 MHz	±20ppm	±20ppm	8pF	-40°C ~ 85°C
XXDBPLNAOF-38.400000	CRYSTAL 38.4000MHZ 12PF SMD	XX	38.4 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
XXGBPLNANF-27.000000	CRYSTAL 27.0000MHZ 18PF SMD	XX	27 MHz	±15ppm	±10ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-40.000000	CRYSTAL 40.0000MHZ 12PF SMD	XX	40 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
XXGBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±15ppm	±10ppm	18pF	-40°C ~ 85°C
XXDBCLNAOF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±15ppm	±10ppm	12pF	-40°C ~ 85°C
XXCBPLNANF-50.000000	CRYSTAL 50.0000MHZ 10PF SMD	XX	50 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
XXHEGCNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
