XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器

XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器

产品简介


XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器,尺寸5.0*3.2mm,频率27MHZ,输出逻辑HCMOS,XO晶体振荡器,OSC贴片晶振,有源贴片晶振,有源晶体振荡器,六脚贴片晶振,5032mm有源晶振,高品质有源晶振,高性能有源晶振,低电压有源晶振,低损耗有源晶振,低抖动有源晶振,低相位有源振荡器,低功耗有源晶振,低相噪有源晶振,6G放大器晶振,网络设备有源晶振,娱乐设备有源晶振,无线网络有源晶振,具有低抖动低电压低功耗的特点.

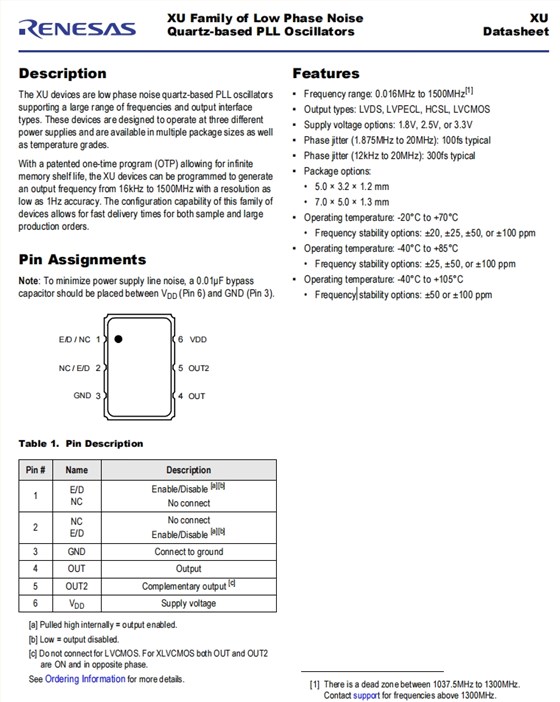

XU设备是基于低相位噪声石英的PLL贴片晶体振荡器支持大范围的频率和输出接口类型。这些设备被设计为在三种不同的条件下运行电源,也有多种封装尺寸作为温度等级。拥有专利的一次性程序(OTP),允许无限存储器的保质期,XU设备可以被编程为输出频率为16kHz至1500MHz,分辨率为低至1Hz精度。此系列的配置能力设备允许快速交付样品和大型生产订单。XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器.


产品详情

XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器,尺寸5.0*3.2mm,频率27MHZ,输出逻辑HCMOS,XO晶体振荡器,OSC贴片晶振,有源贴片晶振,有源晶体振荡器,六脚贴片晶振,5032mm有源晶振,高品质有源晶振,高性能有源晶振,低电压有源晶振,低损耗有源晶振,低抖动有源晶振,低相位有源振荡器,低功耗有源晶振,低相噪有源晶振,6G放大器晶振,网络设备有源晶振,娱乐设备有源晶振,无线网络有源晶振,具有低抖动低电压低功耗的特点.

XU设备是基于低相位噪声石英的PLL贴片晶体振荡器支持大范围的频率和输出接口类型。这些设备被设计为在三种不同的条件下运行电源,也有多种封装尺寸作为温度等级。拥有专利的一次性程序(OTP),允许无限存储器的保质期,XU设备可以被编程为输出频率为16kHz至1500MHz,分辨率为低至1Hz精度。此系列的配置能力设备允许快速交付样品和大型生产订单。XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器.耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器参数表

Symbol Parameter Output Type Conditions Minimum Typical Maximum Units
IDD Current Consumption LVDS 0.016MHz to 400MHz. 97 mA
400.000+MHz to 1.5GHz. 122
LVPECL 0.016MHz to 212.5MHz. 115
212.5+MHz to 400MHz. 128
400+MHz to 670MHz. 142
HCSL 0.016MHz to 670MHz. 145
LVCMOS 0.016MHz to 62.5MHz. 98
62.5+MHz to 167MHz. 108
Table 7.2.5V IDD DC Electrical Characteristics
VDD= 2.5V ±5%, TA= -20°C to +70°C; -40°C to +85°C, -40°C to +105°C.
Symbol Parameter Output Type Conditions Minimum Typical Maximum Units
IDD Current Consumption LVDS 0.016MHz to 400MHz. 90 mA
400.000+MHz to 1.35GHz. 103
LVPECL 0.016MHz to 156.25MHz. 102
156.25+MHz to 400MHz. 112
400+MHz to 670MHz. 118
HCSL 0.016MHz to 400MHz. 102
400.000+MHz to 670MHz. 112
LVCMOS 0.016MHz to 62.5MHz. 80
62.5+MHz to 125MHz. 85
125+MHz to 167MHz. 92
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

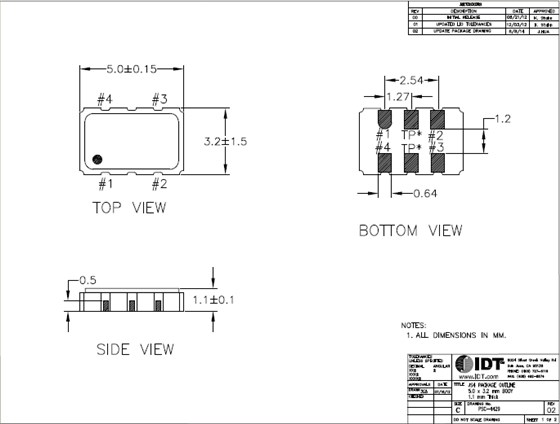

XUH538027.000000X\Renesas有源晶振\6G放大器晶振\XU时钟振荡器尺寸图XUH 5032 HCMOS

5032贴片晶振产品特性:

频率范围:0.016MHz至1500MHz[1]

输出类型:LVDS、LVPECL、HCSL、LVCMOS

电源电压选项:1.8V、2.5V或3.3V

相位抖动(1.875MHz至20MHz):典型100fs

相位抖动(12kHz至20MHz):典型300fs

程序包选项:

5.0×3.2×1.2毫米

7.0×5.0×1.3毫米

工作温度:-20°C至+70°C

频率稳定性选项:±20、±25、±50或±100ppm

工作温度:-40°C至+85°C

频率稳定性选项:±25、±50或±100ppm

工作温度:-40°C至+105°C

频率稳定性选项:±50或±100ppm

XU 1更多相关Renesas瑞萨晶振型号

Mfr Part # Mfr Description Series Frequency Output
XUL535100.000000I Renesas晶振 XTAL OSC XO 100.0000MHZ LVDS SMD XU 100 MHz LVDS
XUL516100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz LVDS
XUN535100.000000I Renesas晶振 MULTIMKT-TIMING XU 100 MHz HCSL
XUL536100.000000I Renesas晶振 MULTIMKT-TIMING XU 100 MHz LVDS
XUL536125.000000I Renesas晶振 MULTIMKT-TIMING XU 125 MHz LVDS
XUL736100.000000I Renesas晶振 MULTIMKT-TIMING XU 100 MHz LVDS
XUL536156.250000I Renesas晶振 MULTIMKT-TIMING XU 156.25 MHz LVDS
XUL736150.000000I Renesas晶振 MULTIMKT-TIMING XU 150 MHz LVDS
XUH518027.120000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 27.12 MHz HCMOS
XUH538024.576000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24.576 MHz HCMOS
XUH738016.125000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 16.125 MHz HCMOS
XUH738044.736000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 44.736 MHz HCMOS
XUH518033.333333X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.333333 MHz HCMOS
XUH738025.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 25 MHz HCMOS
XUH738072.000000X Renesas晶振 XTAL OSC XO 72.0000MHZ HCMOS SMD XU 72 MHz HCMOS
XUH738022.579200X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 22.5792 MHz HCMOS
XUH538027.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 27 MHz HCMOS
XUH538022.579200X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 22.5792 MHz HCMOS
XUH728025.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 25 MHz HCMOS
XUH728020.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 20 MHz HCMOS
XUH538013.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 13 MHz HCMOS
XUH728016.125000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 16.125 MHz HCMOS
XUH538067.108864X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 67.108864 MHz HCMOS
XUH538125.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz HCMOS
XUH535004.000000X Renesas晶振 XTAL OSC XO 4.0000MHZ LVCMOS SMD XU 4 MHz LVCMOS
XUH735033.333000X Renesas晶振 XTAL OSC XO 33.3330MHZ LVCMOS XU 33.333 MHz LVCMOS
XUH730060.000000X Renesas晶振 XTAL OSC XO 60.0000MHZ LVCMOS XU 60 MHz LVCMOS
XUH730080.000000I Renesas晶振 XTAL OSC XO 80.0000MHZ LVCMOS XU 80 MHz LVCMOS
XUH736030.720000X Renesas晶振 XTAL OSC XO 30.7200MHZ LVCMOS XU 30.72 MHz LVCMOS
XUH515045.125000I Renesas晶振 XTAL OSC XO 45.1250MHZ LVCMOS XU 45.125 MHz LVCMOS
XUH525125.000000I Renesas晶振 XTAL OSC XO 125.0000MHZ LVCMOS XU 125 MHz LVCMOS
XUH715066.600000I Renesas晶振 XTAL OSC XO 66.6000MHZ LVCMOS XU 66.6 MHz LVCMOS
XUH715040.000000X Renesas晶振 XTAL OSC XO 40.0000MHZ LVCMOS XU 40 MHz LVCMOS
XUH736033.000000I Renesas晶振 XTAL OSC XO 33.0000MHZ LVCMOS XU 33 MHz LVCMOS
XUH716050.000000I Renesas晶振 XTAL OSC XO 50.0000MHZ LVCMOS XU 50 MHz LVCMOS
XUH516033.333300I Renesas晶振 XTAL OSC XO 33.3333MHZ LVCMOS XU 33.3333 MHz LVCMOS
XUH536090.000000I Renesas晶振 XTAL OSC XO 90.0000MHZ LVCMOS XU 90 MHz LVCMOS
XUH536005.000000I8 Renesas晶振 XTAL OSC XO 5.0000MHZ LVCMOS SMD XU 5 MHz LVCMOS
XUJ730080.000000X Renesas晶振 XTAL OSC XO 80.0000MHZ LVCMOS XU 80 MHz LVCMOS
XUL530039.000000X Renesas晶振 XTAL OSC XO 39.0000MHZ LVDS SMD XU 39 MHz LVDS
XUH516012.000000I Renesas晶振 XTAL OSC XO 12.0000MHZ LVCMOS XU 12 MHz LVCMOS
XUH515100.000000K Renesas晶振 XTAL OSC XO 100.0000MHZ LVCMOS XU 100 MHz LVCMOS
XUH715024.000000K Renesas晶振 XTAL OSC XO 24.0000MHZ LVCMOS XU 24 MHz LVCMOS
XUH535008.000000K Renesas晶振 XTAL OSC XO 8.0000MHZ LVCMOS SMD XU 8 MHz LVCMOS
XUH535025.000000K Renesas晶振 XTAL OSC XO 25.0000MHZ LVCMOS XU 25 MHz LVCMOS
XUL515644.530000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 644.53 MHz LVDS
XUL526644.530000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 644.53 MHz LVDS
XUH738020.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 20 MHz HCMOS
XUH538010.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 10 MHz HCMOS
XUH538020.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 20 MHz HCMOS
XUH538040.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 40 MHz HCMOS
XUH535003.686000I Renesas Crystal XTAL OSC XO 3.6860MHZ LVCMOS SMD XU 3.686 MHz LVCMOS
XUH510100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH535000.127700K Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 127.7 kHz HCMOS
XUH535000.050000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 50 kHz HCMOS
XUH515020.000000K Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 20 MHz HCMOS
XUH535025.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 25 MHz HCMOS
XUH735027.115000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 27.115 MHz HCMOS
XUH535100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUH735027.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 27 MHz HCMOS
XUH535000.192000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 192 kHz HCMOS
XUH735048.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 48 MHz HCMOS
XUH735050.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 50 MHz HCMOS
XUH730049.700000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 49.7 MHz HCMOS
XUL535644.531250I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 644.53125 MHz LVDS
XUH535017.177600X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 17.1776 MHz HCMOS
XUH535048.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 48 MHz HCMOS
XUH730004.800000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 4.8 MHz HCMOS
XUH510133.333000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 133.333 MHz HCMOS
XUH535000.042000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 42 kHz HCMOS
XUH535024.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUH535012.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 12 MHz HCMOS
XUH525010.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 10 MHz HCMOS
XUH535000.044000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 44 kHz HCMOS
XUH535000.096000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 96 kHz HCMOS
XUH525024.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUH530000.460800X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 460.8 kHz HCMOS
XUH715125.000000X Renesas晶振 XTAL OSC XO 125.0000MHZ LVCMOS XU 125 MHz LVCMOS
XUH530000.032768X Renesas晶振 XTAL OSC XO 32.7680KHZ LVCMOS XU 32.768 kHz LVCMOS
XUJ715033.000000I Renesas晶振 XTAL OSC XO 33.0000MHZ LVCMOS XU 33 MHz LVCMOS
XUJ735100.000000I Renesas晶振 XTAL OSC XO 100.0000MHZ LVCMOS XU 100 MHz LVCMOS
XUH518090.000000X Renesas晶振 XTAL OSC XO 90.0000MHZ LVCMOS XU 90 MHz LVCMOS
XUL735100.016000I Renesas晶振 XTAL OSC XO 100.0160MHZ LVDS XU 100.016 MHz LVDS
XUL535075.000000I Renesas晶振 XTAL OSC XO 75.0000MHZ LVDS SMD XU 75 MHz LVDS
XUH518033.000000X Renesas晶振 XTAL OSC XO 33.0000MHZ LVCMOS XU 33 MHz LVCMOS
XUL715033.330000I Renesas晶振 XTAL OSC XO 33.3300MHZ LVDS SMD XU 33.33 MHz LVDS
XUH518124.000000X Renesas晶振 XTAL OSC XO 124.0000MHZ LVCMOS XU 124 MHz LVCMOS
XUP736050.000000X Renesas晶振 XTAL OSC XO 50.0000MHZ LVPECL XU 50 MHz LVPECL
XUH716066.666000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 66.666 MHz HCMOS
XUN535100.000000X Renesas晶振 MULTIMKT-TIMING XU 100 MHz HCSL
XUH516125.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz HCMOS
XUM520125.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 125 MHz LVDS
XUP535024.576000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24.576 MHz LVPECL
XUH526024.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 24 MHz HCMOS
XUP735114.866667X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 114.866667 MHz LVPECL
XUL730100.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 100 MHz LVDS
XUP735025.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 25 MHz LVPECL
XUP535100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz LVPECL
XUH715133.333333I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 133.333333 MHz HCMOS
XUL525100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz LVDS
XUH526016.384000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 16.384 MHz HCMOS
XUL735125.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 125 MHz LVDS
XUP735125.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XU 125 MHz LVPECL
XUH536100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 100 MHz HCMOS
XUP535075.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 75 MHz LVPECL
XUO535027.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 27 MHz HCSL
XUH516033.333333I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 33.333333 MHz HCMOS
XUH516024.000000I Renesas晶振 XTAL OSC XO 24.0000MHZ LVCMOS XU 24 MHz LVCMOS
XUH516026.000000I Renesas晶振 XTAL OSC XO 26.0000MHZ LVCMOS XU 26 MHz LVCMOS
XUH716019.440000I Renesas晶振 XTAL OSC XO 19.4400MHZ LVCMOS XU 19.44 MHz LVCMOS
XUH516031.250000I Renesas晶振 XTAL OSC XO 31.2500MHZ LVCMOS XU 31.25 MHz LVCMOS
XUH535133.300000I Renesas晶振 XTAL OSC XO 133.3000MHZ LVCMOS XU 133.3 MHz LVCMOS
XUH516000.032768I Renesas晶振 XTAL OSC XO 32.7680KHZ LVCMOS XU 32.768 kHz LVCMOS
XUL535156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XU 156.25 MHz LVDS
XUH735054.000000K Renesas晶振 XTAL OSC XO 54.0000MHZ LVCMOS XU 54 MHz LVCMOS
