XXBBBCNANF-16.000000,泰艺晶振,3225石英晶体

产品简介

XXBBBCNANF-16.000000,泰艺晶振,3225石英晶体，物料编码为XXBBBCNANF-16.000000，型号为XX，频率为16MHz，精度为±10ppm，负载电容为9pF，工作温度范围-20℃~70℃，泰艺晶振，3225石英晶体，3225谐振器，贴片晶振，四脚晶振，石英晶体谐振器，具有体积小，体重轻等优势，被广泛应用在计算机，笔记本电脑，智能手机，智能手表等产品。

产品详情

1XQJX

XXBBBCNANF-16.000000,泰艺晶振,3225石英晶体，物料编码为XXBBBCNANF-16.000000，型号为XX，频率为16MHz，精度为±10ppm，负载电容为9pF，工作温度范围-20℃~70℃，泰艺晶振，3225石英晶体，3225谐振器，贴片晶振，四脚晶振，石英晶体谐振器，具有体积小，体重轻等优势，被广泛应用在计算机，笔记本电脑，智能手机，智能手表等产品。

2GGCS

TY-2

XXBBBCNANF-16.000000,泰艺晶振,3225石英晶体

参数表
型号	XX
频率	16MHZ
精度	±10ppm
负载电容	9pF
工作温度	-20℃-70℃
尺寸	3.2*2.5mm

3CC

TY-3

XXBBBCNANF-16.000000,泰艺晶振,3225石英晶体

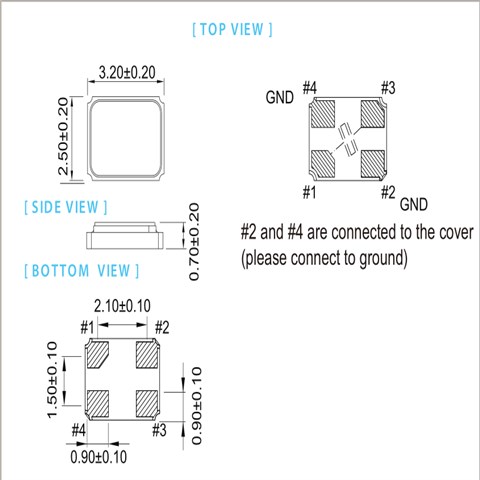

XX 3225尺寸图

原厂编码	参数描述	型号	频率	频率稳定度	负载电容	工作温度
XXGEGLNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	贴片晶振	±50ppm	18pF	-40°C ~ 85°C
XXBBBCNANF-16.000000	CRYSTAL 16.0000MHZ 9PF SMD	XX	16 MHz	±10ppm	9pF	-20°C ~ 70°C
XXCCCLNANF-49.152000	CRYSTAL 49.1520MHZ 10PF SMD	XX	49.152 MHz	±20ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	XX	25 MHz	±15ppm	10pF	-40°C ~ 85°C
XXHCCLNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±20ppm	20pF	-40°C ~ 85°C
XXGGGINANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±50ppm	18pF	-10°C ~ 60°C
XXEBCLNANF-40.000000	CRYSTAL 40.0000MHZ 15PF SMD	XX	40 MHz	±20ppm	15pF	-40°C ~ 85°C
XXDCCCNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±20ppm	12pF	-20°C ~ 70°C
XXGPPLNANF-20.000000	CRYSTAL 20.0000MHZ 18PF SMD	XX	20 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	12pF	-40°C ~ 85°C
XXBBPLNANF-32.000000	CRYSTAL 32.0000MHZ 9PF SMD	XX	32 MHz	±15ppm	9pF	-40°C ~ 85°C
XXDPCLNAOF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XX	16 MHz	±15ppm	12pF	-40°C ~ 85°C
XXDBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 12PF SMD	XX	24 MHz	±15ppm	12pF	-40°C ~ 85°C
XXBBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 9PF SMD	XX	24 MHz	±15ppm	9pF	-40°C ~ 85°C
XXCBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 10PF SMD	XX	24 MHz	±15ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-48.000000	CRYSTAL 48.0000MHZ 10PF SMD	XX	48 MHz	±15ppm	10pF	-40°C ~ 85°C
XXDBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	12pF	-40°C ~ 85°C
XXACCLNANF-48.000000	CRYSTAL 48.0000MHZ 8PF SMD	XX	48 MHz	±20ppm	8pF	-40°C ~ 85°C
XXDBPLNAOF-38.400000	CRYSTAL 38.4000MHZ 12PF SMD	XX	38.4 MHz	±15ppm	12pF	-40°C ~ 85°C
XXGBPLNANF-27.000000	CRYSTAL 27.0000MHZ 18PF SMD	XX	27 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-40.000000	CRYSTAL 40.0000MHZ 12PF SMD	XX	40 MHz	±15ppm	12pF	-40°C ~ 85°C
XXGBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBCLNAOF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±15ppm	12pF	-40°C ~ 85°C
XXCBPLNANF-50.000000	CRYSTAL 50.0000MHZ 10PF SMD	XX	50 MHz	±15ppm	10pF	-40°C ~ 85°C
XXHEGCNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±50ppm	20pF	-20°C ~ 70°C
XXHCECNANF-26.690000	CRYSTAL 26.6900MHZ 20PF SMD	XX	26.69 MHz	±30ppm	20pF	-20°C ~ 70°C
XXCGGINANF-18.432000	CRYSTAL 18.4320MHZ 10PF SMD	XX	18.432 MHz	±50ppm	10pF	-10°C ~ 60°C
XXHEECNANF-30.000000	CRYSTAL 30.0000MHZ 20PF SMD	XX	30 MHz	±30ppm	20pF	-20°C ~ 70°C
XXCCEINANF-27.120000	CRYSTAL 27.1200MHZ 10PF SMD	XX	27.12 MHz	±30ppm	10pF	-10°C ~ 60°C
XXCBPLNANF-26.000000	CRYSTAL 26.0000MHZ SMD	XX	26 MHz	±15ppm	10pF	-40°C ~ 85°C
XXCCCCNANF-12.000000	CRYSTAL 12.0000MHZ 10PF SMD	XX	12 MHz	±20ppm	10pF	-20°C ~ 70°C
XXCGGLNANF-12.000000	CRYSTAL 12.0000MHZ 10PF SMD	XX	12 MHz	±50ppm	10pF	-40°C ~ 85°C
XXGDDCNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±25ppm	18pF	-20°C ~ 70°C
