D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖动晶振

产品简介

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖动晶振，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：D32G系列，编码为：D32G-026.0M，电压：3.3V，频率为：26.000MHz，工作温度范围：-30℃至+85℃，小体积晶振尺寸：3.2x2.5mm表面安装，四脚贴片晶振，有源晶振，TCXO温补晶振，温补晶体振荡器，石英晶振。设计用于在一个非常小的封装中需要紧密频率稳定性的应用。符合RoHS的表面安装包是设计为高密度安装，是最佳的大规模生产。应用于：通讯设备晶振，导航仪晶振，无线网络晶振，物联网晶振，汽车电子晶振，安防设备等。

产品详情

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖动晶振，产品特点：

•3.3 Vdc操作，削波正弦波输出

•频率稳定性：±0.50ppm

•温度范围：-30至85°C

•低抖动：<1 ps RMS

•3.2x2.5mm SMT封装有源晶振

•磁带和卷轴包装，符合RoHS标准/无铅

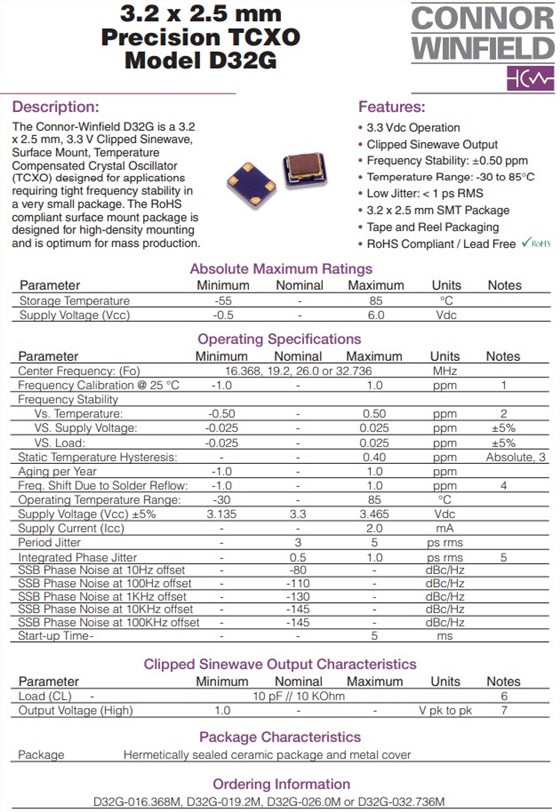

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖动晶振,参数表

ParameterMinimumNominalMaximumUnitsNotes

Center Frequency: (Fo)26.0 MHz

Frequency Calibration @ 25 °C-1.0-1.0ppm1

Frequency Stability

Vs. Temperature:-0.50-0.50ppm2

VS. Supply Voltage:-0.025-0.025ppm±5%

VS. Load:-0.025-0.025ppm±5%

Static Temperature Hysteresis:--0.40ppmAbsolute, 3

Aging per Year-1.0-1.0ppm

Freq. Shift Due to Solder Reflow:-1.0-1.0ppm4

Operating Temperature Range:-30-85°C

Supply Voltage (Vcc) ±5%3.1353.33.465Vdc

Supply Current (Icc)--2.0mA

Period Jitter-35ps rms

Integrated Phase Jitter-0.51.0ps rms5

SSB Phase Noise at 10Hz offset--80-dBc/Hz

SSB Phase Noise at 100Hz offset--110-dBc/Hz

SSB Phase Noise at 1KHz offset--130-dBc/Hz

SSB Phase Noise at 10KHz offset--145-dBc/Hz

SSB Phase Noise at 100KHz offset--145-dBc/Hz

Start-up Time---5ms

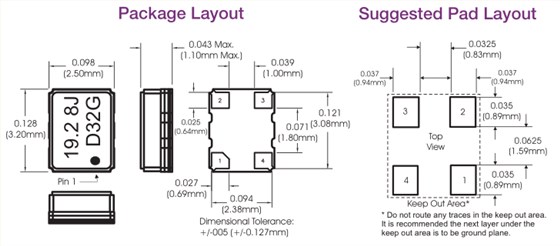

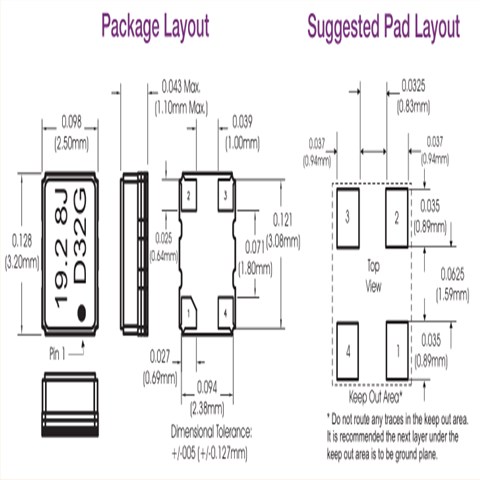

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖动晶振,尺寸图

原厂代码	晶振厂家	型号	频率	工作温度
D32G-016.368M	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-026.0M	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D32G-019.2M	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D75J-050.0M	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-038.88M	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-040.0M	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75A-010.0M	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-019.2M	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D53G-020.0M	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D75A-012.8M	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-020.0M	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
D75F-013.0M	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-027.0M	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-026.0M	康纳温菲尔德晶振	D53G	26MHz	-30°C ~ 85°C
D75F-025.0M	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75J-038.88M-T	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-050.0M-T	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-040.0M-T	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75F-013.0M-T	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M-T	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-025.0M-T	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75F-027.0M-T	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-020.0M-T	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D53G-026.0M-T	ConnorWinfield晶振	D53G	26MHz	-30°C ~ 85°C
D32G-016.368M-T	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-019.2M-T	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D32G-026.0M-T	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D75A-010.0M-T	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-012.8M-T	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-019.2M-T	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D75A-020.0M-T	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M-T	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
