DSC1033CC2-125.0000T,Microchip时钟振荡器,125MHZ,3225mm,3.3V,欧美有源晶振,有源贴片晶振,MEMS可编程振荡器,有源晶体振荡器,OSC振荡器,时钟振荡器,3225晶体振荡器,SMD振荡器,尺寸3.2*2.5mm,频率125MHZ,电压3.3V,低功耗晶振,低电压晶振,低相位晶振,低相噪晶振,便携式电子晶振,低姿态应用晶振,消费电子晶振,移动应用晶振,工业设备晶振,交换机晶振,路由器晶振.
DSC1033CC2-125.0000T,Microchip时钟振荡器,125MHZ,3225mm,3.3V特点:
时钟振荡器频率范围：1至150MHz
卓越的温度稳定性:±25PPM，±50PPM
工作电压:3.0至3.6V
工作温度范围:工业-40ºC至85ºC,外部商用-20ºC至70ºC,商用0ºC至70ºC
低工作和备用电流,3mA工作（40MHz）,1uA待机
超小型占地面积 3.2 x 3.2 x 0.85毫米
卓越的冲击和振动
无铅、RoHS和Reach SVHC
DSC1033CC2-125.0000T,Microchip时钟振荡器,125MHZ,3225mm,3.3V 参数表
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |||||||||||||||||||||||||
| Frequency | f0 | Single Frequency |
|
125 |
|
MHz | |||||||||||||||||||||||||
|
Frequency Tolerance Option 1 Option 2 Option 3 |
Δf |
-40°C to +85°C -20°C to +70°C 0°C to +70°C |
±25,±50 ±25,±50 ±25,±50 |
ppm | |||||||||||||||||||||||||||
| Supply Current, no load | IDD |
CL=0p RL=∞ T=25° C |
1 to 40MHz 40 to 80MHz 80 to 125MHz 125 to 150MHz |
3 4 5 6 |
10 | mA | |||||||||||||||||||||||||
| Supply Current, standby | IDD | T=25°C | 1.0 | uA | |||||||||||||||||||||||||||
|
Output Logic Levels Output logic high Output logic low |
VOH VOL |
CL=15pF |
0.8*VDD - |
- 0.2*VDD |
Volts | ||||||||||||||||||||||||||
|
Output Transition time Rise Time Fall Time |
tR tF |
CL=15pF; T=25°C 20%/80%*VDD |
1.3 1.3 |
2 2 |
ns | ||||||||||||||||||||||||||
| Output Startup Time2 | tSU | T=25°C | 1.5 | 3 | ms | ||||||||||||||||||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | |||||||||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | |||||||||||||||||||||||||||
|
Input Logic Levels Input logic high Input logic low |
VIH VIL |
0.75*VDD - |
- 0.25* VDD |
Volts | |||||||||||||||||||||||||||
| Jitter, Cycle to Cycle | JCC | F = 100MHz3 | 95 | ps | |||||||||||||||||||||||||||

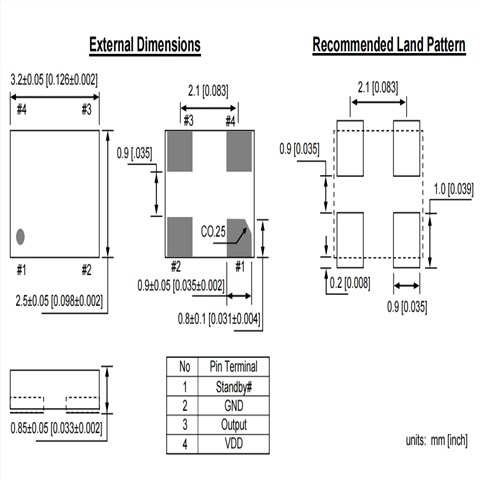

DSC1033CC2-125.0000T,Microchip时钟振荡器,125MHZ,3225mm,3.3V 尺寸图
