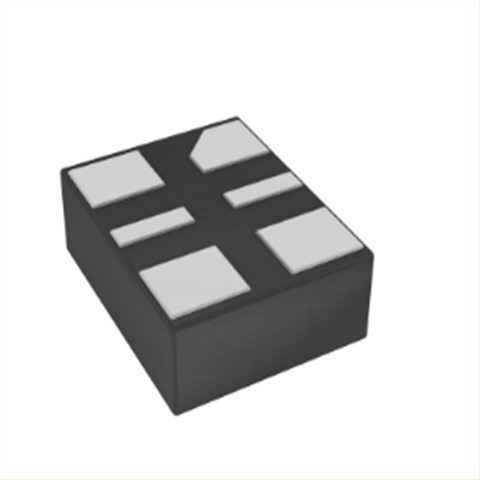

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS

产品简介

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS,2520mm有源晶振,有源贴片晶振,OSC振荡器,时钟振荡器,Microchip晶体振荡器,CMOS输出晶振,156.25M晶振,尺寸2.5*2.0mm,频率156.25MHZ,输出CMOS,电压2.25 V~3.6V,低功耗晶振,低电压晶振,耐高温晶振,高可靠晶振,低抖动晶振,光纤通道晶振,无源光网络晶振,存储区域网络晶振,以太网晶振,视频监控晶振.

产品详情

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS,2520mm有源晶振,有源贴片晶振,OSC振荡器,时钟振荡器,Microchip晶体振荡器,CMOS输出晶振,156.25M晶振,尺寸2.5*2.0mm,频率156.25MHZ,输出CMOS,电压2.25 V~3.6V,低功耗晶振,低电压晶振,耐高温晶振,高可靠晶振,低抖动晶振,光纤通道晶振,无源光网络晶振,存储区域网络晶振,以太网晶振,视频监控晶振.

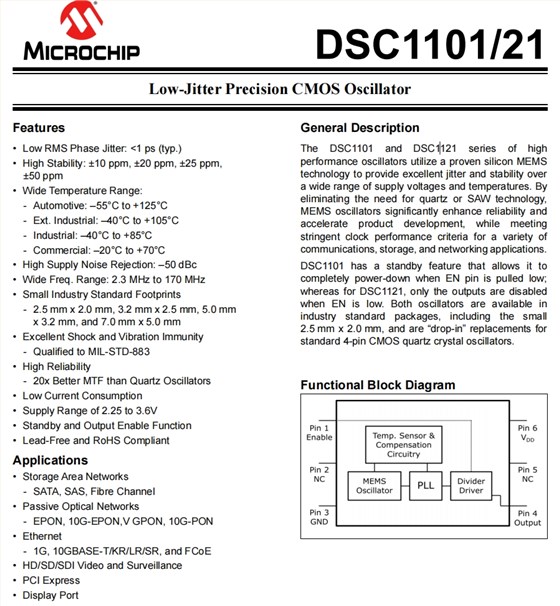

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS特点:

低RMS相位抖动：<1ps（典型值），高稳定性：±10ppm、±20ppm、±25ppm，±50ppm

宽温度范围：汽车：-55°C至+125°C，外部工业：-40°C至+105°C，工业：-40°C至+85°C，商用：-20°C至+70°C

高电源噪声抑制：-50 dBc，宽频率范围：2.3MHz至170MHz

时钟有源晶振小型行业标准足迹2.5毫米x 2.0毫米

卓越的冲击和振动抗扰性，符合MIL-STD-883高可靠性

MTF比石英振荡器好20倍,低电流消耗,供电范围为2.25至3.6V

待机和输出启用功能,无铅且符合RoHS

耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS 参数表

Parameters Sym. Min. Typ. Max. Units Conditions
Supply Voltage (Note 1) V DD 2.25 3.6 V
Supply Current IDD — — 0.095 mA DSC1101, EN pin low, output
is disabled
— 20 22 DSC1121, EN pin low, output
is disabled
— 31 35 Output enabled, CL= 15 pF,
F0= 100 MHz
Frequency Stability
(Including frequency
variations due to initial
tolerance, temp. and
power supply voltage.) 		Δf — — ±10 ppm Ext Comm. & Ind. only
±20 All temp ranges
±25 All temp ranges
— — ±50 All temp ranges
Aging Δf ±5 ppm 1 year @ 25°C
Startup Time (Note 2) tSU 5 ms T = 25°C
Input Logic Levels
Input Logic High
Input Logic Low 		VIH 0.75根VDD — — V
VIL 0.25根VDD
Output Disable Time
(Note 3) 		tDS — — 5 ns —
Output Enable Time tEN 5 ms DSC1101
— — 20 ns DSC1121
Enable Pull-up Resistor
(Note 4) 		— — 40 — kΩ Pull-up Resistor Exist
CMOS Output
Output Logic Levels
Output Logic High
Output Logic Low 		VOH 0.9根VDD V I = ±6 mA
VOL — — 0.1根VDD
Parameters Sym. Min. Typ. Max. Units Conditions
Output Transition Time
Rise Time
Fall Time 		tR 1.1 2 ns 20% to 80%
CL= 15 pF
t F 1.3 2
Frequency f0
156.25
MHz CL= 15 pF, –20°C to +70°C
and –40°C to +85°C
3.3 — 170 CL= 15 pF, –40°C to +105°C
and –55°C to +125°C
Output Duty Cycle SYM 45 55 %
Period Jitter J PER — 3 — psRMS FOUT= 125 MHz
Integrated Phase Noise J PH 0.3 psRMS 200 kHz to 20 MHz @ 125 MHz
0.38 100 kHz to 20 MHz
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

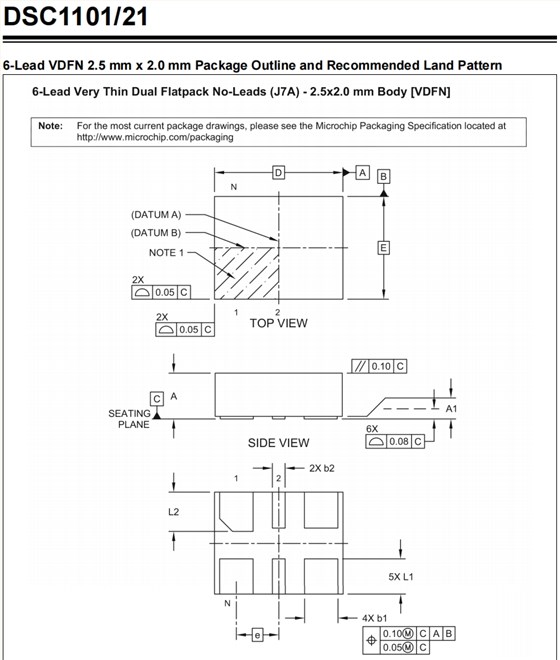

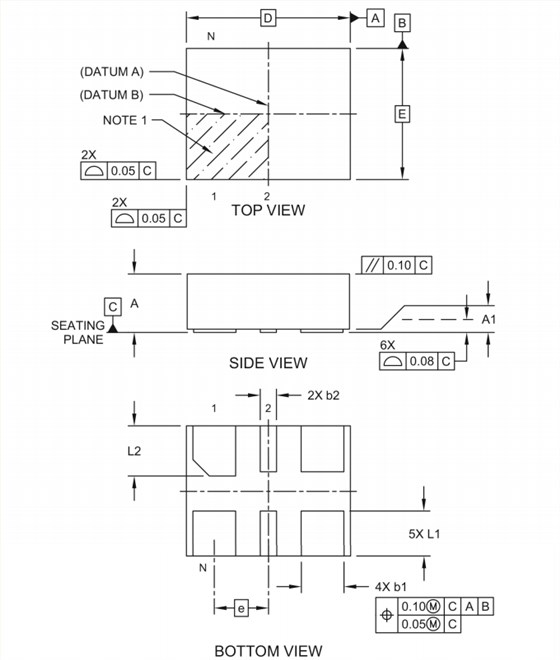

2520mm,DSC1101DM2-156.2500,Microchip有源晶振,156.25MHZ,CMOS 尺寸图

DSC1101 DSC1121 2520DSC1101 1

DSC1101 2

原厂代码 品牌 型号 类型 频率 电压
DSC1101DI5-050.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101DI5-026.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 26MHz 2.25 V ~ 3.6 V
DSC1101DI5-060.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 60MHz 2.25 V ~ 3.6 V
DSC1101DI5-072.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 72MHz 2.25 V ~ 3.6 V
DSC1101DM1-033.3330T Microchip振荡器 DSC1101 MEMS (Silicon) 33.333MHz 2.25 V ~ 3.6 V
DSC1101DM1-033.3330 Microchip振荡器 DSC1101 MEMS (Silicon) 33.333MHz 2.25 V ~ 3.6 V
DSC1101DM1-033.3333T Microchip振荡器 DSC1101 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6V
DSC1101DM1-012.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 12MHz 2.25 V ~ 3.6 V
DSC1101AE1-125.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101AE1-133.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 133MHz 2.25 V ~ 3.6 V
DSC1101CI5-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101AE1-125.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CI5-020.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V
DSC1101CI5-024.5760 Microchip振荡器 DSC1101 MEMS (Silicon) 24.576MHz 2.25 V ~ 3.6 V
DSC1101CI5-022.5791 Microchip振荡器 DSC1101 MEMS (Silicon) 22.5791MHz 2.25 V ~ 3.6 V
DSC1101CI5-025.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6V
DSC1101CE1-024.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 24MHz 2.25 V ~ 3.6 V
DSC1101NI1-125.0062 Microchip振荡器 DSC1101 MEMS (Silicon) 125.0062MHz 2.25 V ~ 3.6 V
DSC1101NI1-156.2500 Microchip振荡器 DSC1101 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V
DSC1101DM2-012.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 12MHz 2.25 V ~ 3.6 V
DSC1101DM2-016.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 16MHz 2.25 V ~ 3.6 V
DSC1101DM2-016.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 16MHz 2.25 V ~ 3.6 V
DSC1101DM2-056.2500T Microchip振荡器 DSC1101 MEMS (Silicon) 56.25MHz 2.25 V ~ 3.6 V
DSC1101CL5-040.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101CL5-027.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V
DSC1101CL5-014.7456T Microchip振荡器 DSC1101 MEMS (Silicon) 14.7456MHz 2.25 V ~ 3.6V
DSC1101BI5-022.5792 Microchip振荡器 DSC1101 MEMS (Silicon) 22.5792MHz 2.25 V ~ 3.6 V
DSC1101BI5-024.5760 Microchip振荡器 DSC1101 MEMS (Silicon) 24.576MHz 2.25 V ~ 3.6 V
DSC1101BI5-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101BM2-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101BM2-025.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101BM2-100.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101AI2-148.5000T Microchip振荡器 DSC1101 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V
DSC1101AI2-040.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101AI2-064.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 64MHz 2.25 V ~ 3.6 V
DSC1101AI2-080.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V
DSC1101AI2-148.5000 Microchip振荡器 DSC1101 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V
DSC1101BM2-027.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V
DSC1101BM2-027.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V
DSC1101BM2-100.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101BM2-074.2500 Microchip振荡器 DSC1101 MEMS (Silicon) 74.25MHz 2.25 V ~ 3.6 V
DSC1101BM2-074.2500T Microchip振荡器 DSC1101 MEMS (Silicon) 74.25MHz 2.25 V ~ 3.6 V
DSC1101CM2-062.2080 Microchip振荡器 DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V
DSC1101DL5-013.5600 Microchip振荡器 DSC1101 MEMS (Silicon) 13.56MHz 2.25 V ~ 3.6 V
DSC1101DL5-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101DL5-020.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V
DSC1101DL5-013.5600T Microchip振荡器 DSC1101 MEMS (Silicon) 13.56MHz 2.25 V ~ 3.6 V
DSC1101DL5-052.8000T Microchip振荡器 DSC1101 MEMS (Silicon) 52.8MHz 2.25 V ~ 3.6V
DSC1101BI5-133.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 133MHz 2.25 V ~ 3.6V
DSC1101CL5-100.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101NI5-100.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101DM2-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101DM2-004.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 4MHz 2.25 V ~ 3.6 V
DSC1101DM2-004.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 4MHz 2.25 V ~ 3.6 V
DSC1101DM2-125.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CM1-075.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V
DSC1101CM1-008.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 8MHz 2.25 V ~ 3.6 V
DSC1101CM1-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101CM1-005.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 5MHz 2.25 V ~ 3.6V
DSC1101CM1-033.3333T Microchip振荡器 DSC1101 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6V
DSC1101AM1-160.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 160MHz 2.25 V ~ 3.6 V
DSC1101CM2-020.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V
DSC1101AM2-100.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101AL5-080.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V
DSC1101AL5-080.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V
DSC1101BE1-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101BE1-050.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101BM1-100.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101BM1-100.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101CI1-148.3516T Microchip振荡器 DSC1101 MEMS (Silicon) 148.3516MHz 2.25 V ~ 3.6 V
DSC1101CI1-148.5000T Microchip振荡器 DSC1101 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V
DSC1101CI2-125.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CI2-125.0000T MicrochipCrystal DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CI5-026.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 26MHz 2.25 V ~ 3.6 V
DSC1101CI5-026.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 26MHz 2.25 V ~ 3.6 V
DSC1101CI5-050.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101CI5-125.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CI5-125.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V
DSC1101CL5-020.0032 Microchip振荡器 DSC1101 MEMS (Silicon) 20.0032MHz 2.25 V ~ 3.6 V
DSC1101CL5-020.0032T Microchip振荡器 DSC1101 MEMS (Silicon) 20.0032MHz 2.25 V ~ 3.6 V
DSC1101CL5-040.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101CM1-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101CM1-050.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101DC1-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101DC1-025.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101DI5-020.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V
DSC1101DI5-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101DL5-040.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101DL5-040.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101DM2-008.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 8MHz 2.25 V ~ 3.6 V
DSC1101DM2-008.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 8MHz 2.25 V ~ 3.6 V
DSC1101DM2-027.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V
DSC1101DM2-048.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 48MHz 2.25 V ~ 3.6 V
DSC1101DM2-056.2500 Microchip振荡器 DSC1101 MEMS (Silicon) 56.25MHz 2.25 V ~ 3.6 V
DSC1101DM2-156.2500 Microchip振荡器 DSC1101 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V
DSC1101DM2-156.2500T Microchip振荡器 DSC1101 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V
DSC1101DM5-040.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101DM5-040.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V
DSC1101DM5-080.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V
DSC1101DM5-080.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V
DSC1101NI2-048.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 48MHz 2.25 V ~ 3.6 V
DSC1101NI2-048.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 48MHz 2.25 V ~ 3.6 V
DSC1101NI5-025.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101NI5-025.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V
DSC1101NI5-100.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
DSC1101NM1-050.0000 Microchip振荡器 DSC1101 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V
DSC1101AI2-048.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 48MHz 2.25 V ~ 3.6 V
DSC1101AI2-100.0000T Microchip振荡器 DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V
