NDK汽车氛围灯晶振,NP3225SC-156.25MHz-NSC5344B,6G网络差分晶振，尺寸3.2×2.5mm,频率156.25MHz,输出逻辑HCSL,工作温度-40 to +105，电压3.3 V±10 %，HCSL差分石英晶振，差分晶体振荡器，SPXO差分振荡器，贴片差分晶振，156.25MHz差分晶振，低电压差分振荡器，低抖动差分晶振，高频差分晶振，6G基站差分晶振，以太网专用差分晶振，汽车音响专用差分振荡器，电脑应用差分晶振，产品具备低电压高精度高频的特点。
有源晶振产品应用范围广，很适合用于5G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。NDK汽车氛围灯晶振,NP3225SC-156.25MHz-NSC5344B,6G网络差分晶振.
NDK汽车氛围灯晶振,NP3225SC-156.25MHz-NSC5344B,6G网络差分晶振 参数表
Item
Ratings
Notes
min
max
Units
1
Supply Voltage
-0.3
+4.0
V
2
Input Voltage
-0.3
VCC+0.3
V
3
Storage Temperature Range
-55
+125
。C
6. Electrical Specifications
Parameters
SYM
Electrical Spec.
Notes
min
typ
max
Units
1
Nominal Frequency
fnom
156.25
MHz
See Table.2
2
Supply Voltage
VCC
+2.5 to +3.3
V
See Table.1
3
Current Consumption (Operating)
ICC
50
mA
at 25。C
4
Current Consumption (Stand-by)
IST
See Table.1
μA
at 25。C
5
Output Level
-
HCSL
6
Load
RL
50
Ω
7
Operating Temperature Range
Topr
[-40 to +85] to [-40 to +105]
。C
See Table.1
8
Overall Frequency Tolerance
Δf/fnom
-50
+50
ppm
*1
9
Output Voltage
VOL
- 150
+150
mV
VOH
+580
+850
mV
10
Rise Time(tr), Fall Time(tf)
tr/tf
0.5
ns
0.175 to 0.525 V
11
Symmetry
SYM
45
55
%
at 50 % Waveform
12
Start-up Time
tsu
10
ms
13
Phase Jitter
tpj
1
ps
*2
14
Output Wave Form
-
Square wave
15
Stand-by Function
#1 PAD input
#4, 5 PAD output
H level (0.7 VCCto VCC) or open
Operating
L level (0.3 VCCmax)
High impedance
Nominal
Frequency
Operating Temperature
Range [。C]
Current Consumption
(Stand-by)
Supply Voltage [V]
2.5 V±5 %
3.3 V±10 %
100 to 175 MHz
-40 to +85
15μA MAX.
NSC5343A
NSC5343B
-40 to +105
30μA MAX.
NSC5344A
NSC5344B
175 to 220 MHz
-40 to +85
15μA MAX.
NSC5236A
NSC5236B
-40 to +105
30μA MAX.
NSC5238A
NSC5238B

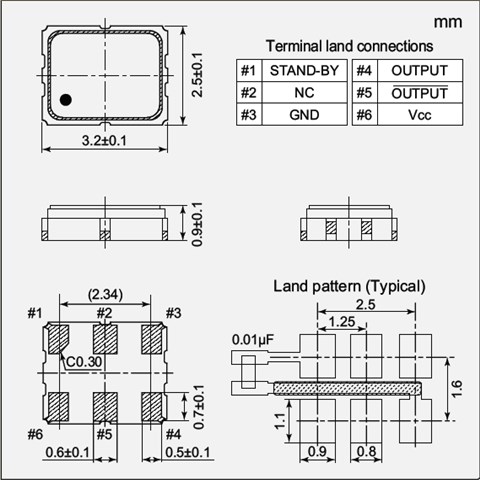

NDK汽车氛围灯晶振,NP3225SC-156.25MHz-NSC5344B,6G网络差分晶振 尺寸图
产品特性：
HCSL差分输出SPXO
紧凑型:3.2 x 2.5 x 0.9毫米
电源电压:+2.5V或者+3.3V
低相位抖动:典型。85fs @156.25MHz
通过缠绕自动安装和IR回流(无铅)是可能的。
无铅
符合AEC-Q200
