6G模块晶振,X1G0045010004,EPSON贴片振荡器,SG7050CCN有源晶振

6G模块晶振,X1G0045010004,EPSON贴片振荡器,SG7050CCN有源晶振，尺寸7.00x5.00x1.50mm,频率48MHZ,输出逻辑CMOS，爱普生有源晶振，有源晶体振荡器，CMOS输出振荡器，有源贴片晶振，石英晶体振荡器，7050mm有源晶振，SPXO晶体振荡器，OSC晶振，低抖动晶振，低电压有源晶振，低抖动有源晶振，高品质有源晶振，高性能有源晶振，无线网络设备晶振，6G模块专用晶振。

有源晶振产品很适合用于智能家居，6G模块，光纤通道，测试与测量，医疗产品，无线模块，6G室外基站，路由器，光通信等领域.6G模块晶振,X1G0045010004,EPSON贴片振荡器,SG7050CCN有源晶振.

6G模块晶振,X1G0045010004,EPSON贴片振荡器,SG7050CCN有源晶振参数表

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

48 MHz

Please contact us about available frequencies.

Supply voltage

VCC

H: 4.5 V to 5.5 V

Storage temperature

T_stg

-40。C to +125。C

Storage as single product.

Operating temperature

T_use

B: -20。C to +70。C, G: -40。C to +85。C

Frequency tolerance

f_tol

J:5010-6

-20。C to +70。C, -40。C to +85。C

Current consumption

ICC

20 mA Max.

No load condition Maximum frequency.

Disable current

I_dis

10 mA Max.

OE = GND

Symmetry

SYM

40 % to 60 %

50 % VCClevel, L_CMOS<50 pF

Output voltage

VOH

VCC- 0.4 V Min.

IOH= -8 mA

VOL

0.4 V Max.

IOL= 16 mA

Output load condition

L_CMOS

50 pF Max.

Input voltage

VIH

80 % VCCMin.

OE terminal

VIL

20 % VCCMax.

Rise time / Fall time

tr / tf

5 ns Max.

20 % VCCto 80 % VCClevel,
L_CMOS<50 pF

Start-up time

tOSC

4 ms Max.

t = 0 at 90 % VCC

Frequency aging

f_age

510-6/ year Max.

+25。C, First year.

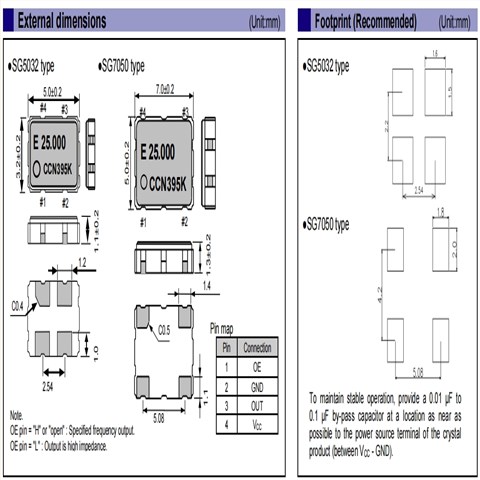

6G模块晶振,X1G0045010004,EPSON贴片振荡器,SG7050CCN有源晶振尺寸图

SMD振荡器产品特性：

频率范围： 2.5MHz至50MHz（基本模式）

电源电压： 5.0 V Typ。

功能：输出启用（OE）

输出：CMOS

更多相关日本爱普生EPSON晶振型号

编码	品牌	型号	频率	进口晶振尺寸	输出方式	电源电压	工作温度
X1G0044810240	EPSON贴片振荡器	SG7050CAN	7.372800 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.630 V	-40 to 105 °C
X1G0044810242	EPSON贴片振荡器	SG7050CAN	48.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C
X1G0044810243	EPSON贴片振荡器	SG7050CAN	3.300000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C
X1G0044910001	EPSON贴片振荡器	SG7050CBN	100.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910002	EPSON贴片振荡器	SG7050CBN	125.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910003	EPSON贴片振荡器	SG7050CBN	106.250000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910004	EPSON贴片振荡器	SG7050CBN	133.330000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910005	EPSON贴片振荡器	SG7050CBN	150.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910006	EPSON贴片振荡器	SG7050CBN	156.250000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910007	EPSON贴片振荡器	SG7050CBN	83.330000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910008	EPSON贴片振荡器	SG7050CBN	84.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910009	EPSON贴片振荡器	SG7050CBN	133.333000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910010	EPSON贴片振荡器	SG7050CBN	153.600000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910011	EPSON贴片振荡器	SG7050CBN	160.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910012	EPSON贴片振荡器	SG7050CBN	170.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910017	EPSON贴片振荡器	SG7050CBN	133.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910018	EPSON贴片振荡器	SG7050CBN	133.333300 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910020	EPSON贴片振荡器	SG7050CBN	125.006250 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910021	EPSON贴片振荡器	SG7050CBN	156.250000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0044910022	EPSON贴片振荡器	SG7050CBN	156.253906 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910023	EPSON贴片振荡器	SG7050CBN	80.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910024	EPSON贴片振荡器	SG7050CBN	114.285000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910025	EPSON贴片振荡器	SG7050CBN	120.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0044910026	EPSON贴片振荡器	SG7050CBN	120.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0044910027	EPSON贴片振荡器	SG7050CBN	120.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0044910028	EPSON贴片振荡器	SG7050CBN	100.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0044910029	EPSON贴片振荡器	SG7050CBN	85.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0045010001	EPSON贴片振荡器	SG7050CCN	4.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010003	EPSON贴片振荡器	SG7050CCN	16.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010004	EPSON贴片振荡器	SG7050CCN	48.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010005	EPSON贴片振荡器	SG7050CCN	11.059200 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010006	EPSON贴片振荡器	SG7050CCN	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010007	EPSON贴片振荡器	SG7050CCN	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010008	EPSON贴片振荡器	SG7050CCN	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010009	EPSON贴片振荡器	SG7050CCN	33.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010010	EPSON贴片振荡器	SG7050CCN	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010011	EPSON晶振	SG7050CCN	44.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010012	EPSON贴片振荡器	SG7050CCN	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010014	EPSON贴片振荡器	SG7050CCN	4.915200 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010015	EPSON贴片振荡器	SG7050CCN	8.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010016	EPSON贴片振荡器	SG7050CCN	5.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010017	EPSON贴片振荡器	SG7050CCN	24.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010018	EPSON贴片振荡器	SG7050CCN	3.579545 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010019	EPSON贴片振荡器	SG7050CCN	3.686400 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010020	EPSON贴片振荡器	SG7050CCN	6.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010021	EPSON贴片振荡器	SG7050CCN	12.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010022	EPSON贴片振荡器	SG7050CCN	20.480000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010023	EPSON贴片振荡器	SG7050CCN	21.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010024	EPSON贴片振荡器	SG7050CCN	32.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010025	EPSON贴片振荡器	SG7050CCN	30.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010026	EPSON贴片振荡器	SG7050CCN	14.745600 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G0045010027	EPSON贴片振荡器	SG7050CCN	42.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
