406系列TCXO振荡器,3225mm,加拿大米利伦晶振

产品简介

406系列TCXO振荡器,3225mm,加拿大米利伦晶振，尺寸3.2*2.5mm,频率范围10~52MHZ，进口有源晶振，3225mm温补振荡器，TCXO晶体振荡器，MTI-milliren有源晶振，有源温补晶振，温度补偿晶体振荡器，石英温补振荡器，北斗定位有源晶振，OSC有源晶振，环保型有源晶振，微波通信有源晶振，可视化智能家居有源晶振，数字视频有源晶振，测试测量有源晶振，无线局域网有源晶振，低电压有源晶振，低耗能有源晶振，低抖动有源晶振，低相位有源晶振，低相噪有源晶振，具有低电压低耗能的特点。有源晶振产品主要应用范围广，常用于北斗定位，微波通信，可视化智能家居，数字视频，测试测量，无线局域网等应用。406系列TCXO振荡器,3225mm,加拿大米利伦晶振.

产品详情

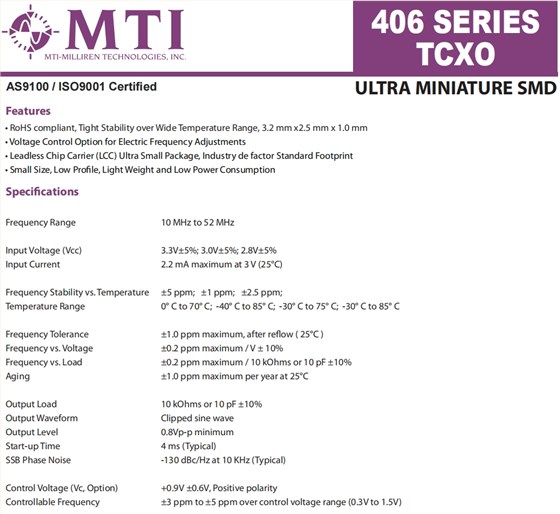

406系列TCXO振荡器,3225mm,加拿大米利伦晶振 参数表

Frequency Range			10 MHz to 52 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 2.8V±5% 2.2 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±5 ppm;±1 ppm;±2.5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;-30° C to 75° C;-30° C to 85° C ±1.0 ppm maximum, after reflow ( 25°C )
Frequency Tolerance
Frequency vs. Voltage			±0.2 ppm maximum / V ± 10%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-130 dBc/Hz at 10 KHz (Typical) +0.9V ±0.6V, Positive polarity
Control Voltage (Vc, Option)
Controllable Frequency			±3 ppm to ±5 ppm over control voltage range (0.3V to 1.5V)
