MTI-milliren温补晶振,2520mm,407系列有源晶振

产品简介

MTI-milliren温补晶振,2520mm,407系列有源晶振，尺寸2.5*2.0mm,频率范围10~52MHZ，加拿大进口晶振，米利伦温补晶振，TCXO温补晶振，2520mm超小型温补晶振，有源温补晶振，OSC温补振荡器，石英温补晶振，贴片温补晶振，欧美有源振荡器，无线路由器有源晶振，室外基站有源晶振，游戏设备有源晶振，多媒体设备有源晶振，智能家电有源晶振，以太网有源晶振，卫星定位有源晶振，高品质有源晶振，高性能有源晶振，低电压有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，具有体积小、利低成本、重量轻、功耗低等特点。超小型温补晶振产品适合用于无线路由器，室外基站，游戏设备，多媒体设备，智能家电，以太网，卫星定位等应用。MTI-milliren温补晶振,2520mm,407系列有源晶振.

产品详情

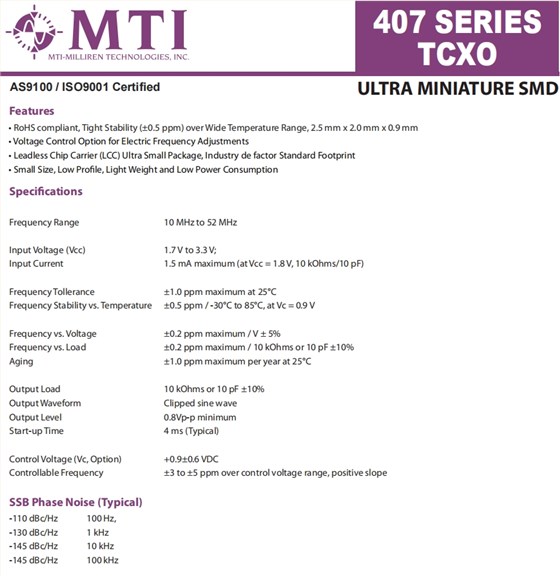

MTI-milliren温补晶振,2520mm,407系列有源晶振 参数表

Frequency Range			10 MHz to 52 MHz
Input Voltage (Vcc)			1.7 V to 3.3 V;
Input Current			1.5 mA maximum (atVcc = 1.8 V, 10 kOhms/10 pF)
Frequency Tollerance			±1.0 ppm maximum at 25°C
Frequency Stability vs. Temperature			±0.5 ppm / -30°C to 85°C, at Vc = 0.9 V ±0.2 ppm maximum / V ± 5%
Frequency vs. Voltage
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical)
Output Waveform
Output Level
Start-up Time
Control Voltage (Vc, Option)			+0.9±0.6 VDC
Controllable Frequency			±3 to ±5 ppm over control voltage range, positive slope
