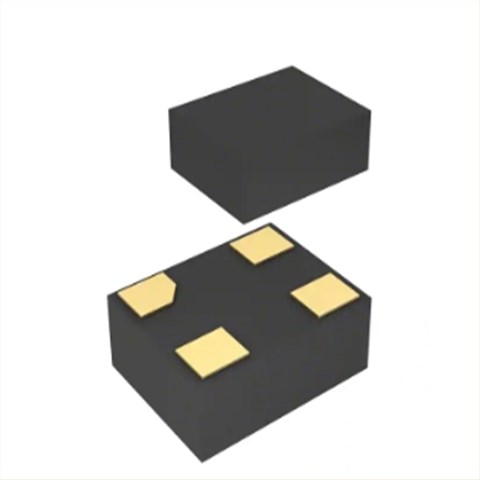

6G放大器晶振/美国Silicon晶振Si501/501ACA10M0000CAG

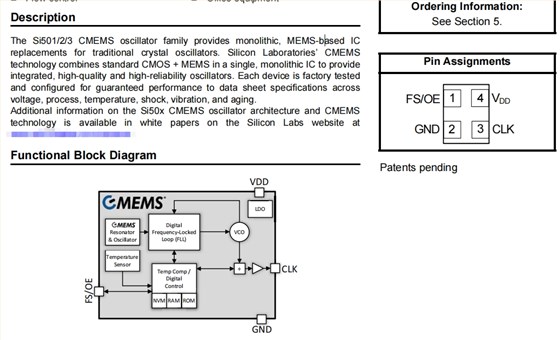

6G放大器晶振/美国Silicon晶振Si501/501ACA10M0000CAG，尺寸3.20mmx2.50mm,频率10MHZ，输出逻辑LVCMOS ，电压1.7V ~ 3.6V ，脚位4-SMD，OSC振荡器，有源晶体振荡器，MEMS振荡器，SMD振荡器，小体积振荡器，低抖动有源振荡器，低电压振荡器，低相位振荡器，Si501/2/3 CMEMS振荡器系列提供单片、基于MEMS的IC取代传统晶体振荡器。硅实验室的CMEMS该技术将标准CMOS+MEMS结合在一个单片IC中，以提供集成、高质量和高可靠性振荡器。每个设备都经过工厂测试并配置为保证性能符合数据表规范电压、工艺、温度、冲击、振动和老化。

SMD振荡器产品很适合用于存储（SATA/SAS/PCIe），通用处理器，工业控制器，嵌入式控制器，电机控制，流量控制，办公室/家庭自动化，IP摄像头/监视，显示和控制面板，户外电子，多功能打印机，办公设备等.6G放大器晶振/美国Silicon晶振Si501/501ACA10M0000CAG.

6G放大器晶振/美国Silicon晶振Si501/501ACA10M0000CAG参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage1	VDD		1.71	—	3.63	V
Supply Current	IDD1	CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low power option	—	1.7	2.5	mA
		CL=4 pF, 3.3 VDD, FCLK=100 MHz, low power option	—	5.3	6.5	mA
		CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low jitter option	—	3.9	4.9	mA
		CL=4 pF, 3.3 VDD, FCLK=100 MHz, low jitter option	—	7.6	8.9	mA
Static Supply Current	IDD2	Mode=Stop2, low power option FCLK=1 MHz	—	1.7	2.5	mA
		Mode=Stop2, low jitter option FCLK=1 MHz	—	3.9	4.9	mA
		Mode=Doze2	—	670	890	µA
		Mode=Sleep2	—	0.3	1	µA
Input High Voltage	VIH	FS/OE pin	0.70 x VDD	—	—	V
Input Low Voltage	VIL	FS/OE pin	—	—	0.30 x VDD	V
OE Internal Pull Resistor	RI	Ordering option	40	50	60	kΩ
Operating Temperature	TA	Extended commercial grade	–20	—	70	。C
		Industrial grade	–40	—	85	。C

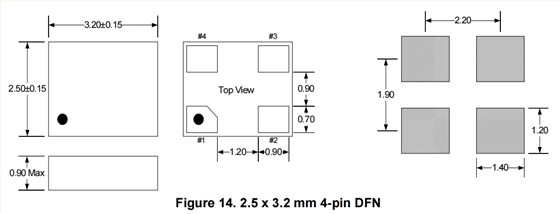

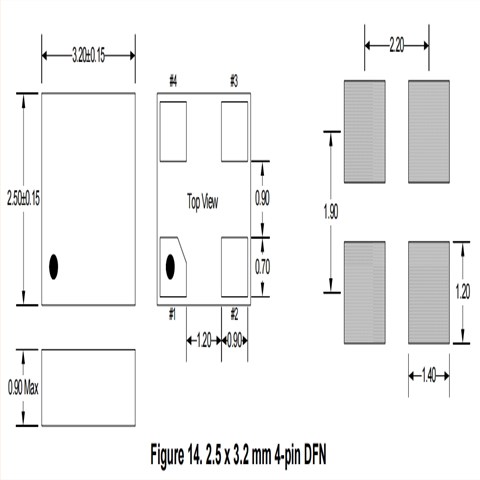

6G放大器晶振/美国Silicon晶振Si501/501ACA10M0000CAG尺寸图

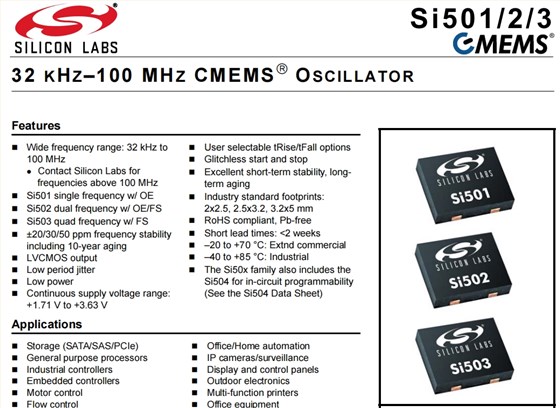

有源晶振产品特性：

宽频率范围： 32kHz到100MHz

接触硅实验室频率超过100MHz

Si501单频w/ OE

Si502双频率w/ OE/FS

Si503四频率w/ FS

±20/30/50/50ppm频率稳定包括10年老化

LVCMOS输出

低周期抖动

低功率

连续供电电压范围：+1.71V+3.63V

用户选择上升/t下降选项

无故障启动和停止?优秀的短期稳定性，长期老化

行业标准足迹： 2x2.5,2.5x3.2,3。2x5 mm

RoHS兼容，无铅

短交货时间： <2周

–20到+70°C：Extnd商业

–40到+85°C：工业?Si50x系列还包括电路内可编程性的Si504

更多相关Silicon晶振型号

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Voltage - Supply电压	Frequency Stability频率稳定度
531EC311M040DGR	Silicon Labs	Si531	311.04MHz	2.5V	±7ppm
531EC622M080DGR	Silicon Labs	Si531	622.08MHz	2.5V	±7ppm
531FC250M000DGR	Silicon Labs	Si531	250MHz	2.5V	±7ppm
531FC311M040DGR	Silicon Labs	Si531	311.04MHz	2.5V	±7ppm
531FC622M080DGR	Silicon Labs	Si531	622.08MHz	2.5V	±7ppm
530CA40M0000BG	Silicon Labs	Si530	40MHz	3.3V	±50ppm
531AA640M000BG	Silicon Labs	Si531	640MHz	3.3V	±50ppm
501BCAM032768BAG	Silicon Labs	Si501	32.768kHz	3.3V	±20ppm
501BCAM032768DAF	Silicon Labs	Si501	32.768kHz	3.3V	±20ppm
501JCAM032768BAF	Silicon Labs	Si501	32.768kHz	3.3V	±20ppm
501JCAM032768BAG	Silicon Labs	Si501	32.768kHz	3.3V	±20ppm
501JCAM032768CAG	Silicon Labs	Si501	32.768kHz	3.3V	±20ppm
501HCAM032768BAG	Silicon Labs	Si501	32.768kHz	1.7 V ~ 3.6 V	±20ppm
501HCAM032768CAF	Silicon Labs	Si501	32.768kHz	1.7 V ~ 3.6 V	±20ppm
501HCAM032768CAG	Silicon Labs	Si501	32.768kHz	1.7 V ~ 3.6 V	±20ppm
501HCAM032768DAG	Silicon Labs	Si501	32.768kHz	1.7 V ~ 3.6 V	±20ppm
501ABA8M00000CAF	Silicon Labs	Si501	8MHz	1.7 V ~ 3.6 V	±30ppm
501ABA8M00000DAF	Silicon Labs	Si501	8MHz	1.7 V ~ 3.6 V	±30ppm
501ABA8M00000DAG	Silicon Labs	Si501	8MHz	1.7 V ~ 3.6 V	±30ppm
501ACA10M0000CAG	Silicon Labs	Si501	10MHz	1.7 V ~ 3.6 V	±20ppm
501ACA10M0000DAF	Silicon Labs	Si501	10MHz	1.7 V ~ 3.6 V	±20ppm
501ACA10M0000DAG	Silicon晶振	Si501	10MHz	1.7 V ~ 3.6 V	±20ppm
501JCA10M0000CAF	Silicon Labs	Si501	10MHz	3.3V	±20ppm
501JCA10M0000CAG	Silicon Labs	Si501	10MHz	3.3V	±20ppm
501JCA10M0000DAF	Silicon Labs	Si501	10MHz	3.3V	±20ppm
501JCA10M0000DAG	Silicon Labs	Si501	10MHz	3.3V	±20ppm
501HCA12M0000BAG	Silicon Labs	Si501	12MHz	1.7 V ~ 3.6 V	±20ppm
501HCA12M0000CAF	Silicon Labs	Si501	12MHz	1.7 V ~ 3.6 V	±20ppm
501HCA12M0000CAG	Silicon Labs	Si501	12MHz	1.7 V ~ 3.6 V	±20ppm
501HCA12M0000DAG	Silicon Labs	Si501	12MHz	1.7 V ~ 3.6 V	±20ppm
501BCA16M0000DAF	Silicon Labs	Si501	16MHz	3.3V	±20ppm
501BCA16M0000DAG	Silicon Labs	Si501	16MHz	3.3V	±20ppm
501BAA16M0000BAF	Silicon Labs	Si501	16MHz	3.3V	±50ppm
501BAA16M0000CAF	Silicon Labs	Si501	16MHz	3.3V	±50ppm
501BAA16M0000DAG	Silicon Labs	Si501	16MHz	3.3V	±50ppm
501JCA20M0000BAF	Silicon Labs	Si501	20MHz	3.3V	±20ppm
501JCA20M0000BAG	Silicon Labs	Si501	20MHz	3.3V	±20ppm
501JCA20M0000CAF	Silicon Labs	Si501	20MHz	3.3V	±20ppm
501JCA20M0000DAF	Silicon Labs	Si501	20MHz	3.3V	±20ppm
501JCA20M0000DAG	Silicon Labs	Si501	20MHz	3.3V	±20ppm
501AAA24M0000CAF	Silicon Labs	Si501	24MHz	1.7 V ~ 3.6 V	±50ppm
501AAA24M0000CAG	Silicon Labs	Si501	24MHz	1.7 V ~ 3.6 V	±50ppm
501AAA24M0000DAF	Silicon Labs	Si501	24MHz	1.7 V ~ 3.6 V	±50ppm
501AAA24M0000DAG	Silicon Labs	Si501	24MHz	1.7 V ~ 3.6 V	±50ppm
501JAA24M0000BAF	Silicon Labs	Si501	24MHz	3.3V	±50ppm
501JAA24M0000CAG	Silicon Labs	Si501	24MHz	3.3V	±50ppm
501JAA24M0000DAG	Silicon Labs	Si501	24MHz	3.3V	±50ppm
501JCA24M0000BAF	Silicon Labs	Si501	24MHz	3.3V	±20ppm
501JCA24M0000BAG	Silicon Labs	Si501	24MHz	3.3V	±20ppm
501JCA24M0000CAG	Silicon Labs	Si501	24MHz	3.3V	±20ppm
501JCA24M0000DAG	Silicon Labs	Si501	24MHz	3.3V	±20ppm
501AAA25M0000BAG	Silicon Labs	Si501	25MHz	1.7 V ~ 3.6 V	±50ppm
501AAA25M0000CAF	Silicon Labs	Si501	25MHz	1.7 V ~ 3.6 V	±50ppm
