XG5032HAN有源晶振,X1M0004610001,爱普生振荡器,6G通信差分晶振

XG5032HAN有源晶振,X1M0004610001,爱普生振荡器,6G通信差分晶振，尺寸5.0*3.2mm,频率100MHZ，输出逻辑HCSL，EPSON差分晶振，HCSL输出晶振，差分晶体振荡器，低耗能差分晶振，100MHZ差分振荡器，仪器设备差分晶振，6G模块差分晶振，无线网络差分振荡器，测量专用差分晶振，轻薄型差分晶振，OSC差分晶振，高品质差分振荡器，具有低电压低相位低相噪的特征。

SMD振荡器产品很适合用于6G通信，无线网络，6G模块，测量与测试，仪器设备，小型设备，可视化智能家居，交换机，路由器等领域。XG5032HAN有源晶振,X1M0004610001,爱普生振荡器,6G通信差分晶振.

XG5032HAN有源晶振,X1M0004610001,爱普生振荡器,6G通信差分晶振 参数表

項目	記号	仕様	条件
出力周波数範囲	f0	100MHz	対応周波数はお問い合せください
電源電圧	VCC	C : 3.3V ±0.33V D : 2.5V ±0.125V
保存温度	T_stg	-55°C to +125°C	単品での保存
動作温度	T_use	A : 0°C to +70°C, B : -20°C to +70°C, D : -5°C to +85°C
周波数許容偏差	f_tol	J : ± 50 × 10-6 L : ±100 × 10-6
消費電流	ICC	35mA Max.	OE = VCC,出力負荷あり時
ディセーブル時電流	I_dis	15mA Max.	OE = GND
波形シンメトリ	SYM	45% to 55%	at outputs crossing point
出力電圧	VOH	0.75 V Typ. 0.66V to 0.85V	DC特性、単出力
出力電圧	VOL	0 V Typ. -0.15V to 0.15V	DC特性、単出力
クロッシング電圧	VCR	0.25V to 0.55V
出力負荷条件	L_HCSL	50Ω	下記測定回路参照
	RS	33Ω
	CL	2pF
入力電圧	VIH	70% VCCMin.	OE 端子
入力電圧	VIL	30% VCCMax.	OE 端子
差動出力立ち上がり/ 立ち下がりレート	Rr / Rf	1 V/n to 4V/ns	-0.15V から0.15Vの間　差動出力
発振開始時間	t_str	10ms Max.	最小電源電圧のt を 0 とする
位相ジッタ	tPJ	0.3ps Max.	f0≦ 160 MHz	オフセット周波数: 12kHz～20MHz
		0.4ps Max.	160 MHz < fo ≦ 175 MHz
		0.2ps Max.	f0> 175 MHz
周波数経時変化	f_aging	N : ± 10 × 10-6/ year Max.	初年度	+25°C,初年度, VCC=2.5V,3.3V
周波数経時変化	f_aging	A : 周波数許容偏差に含む	10年	+25°C,初年度, VCC=2.5V,3.3V

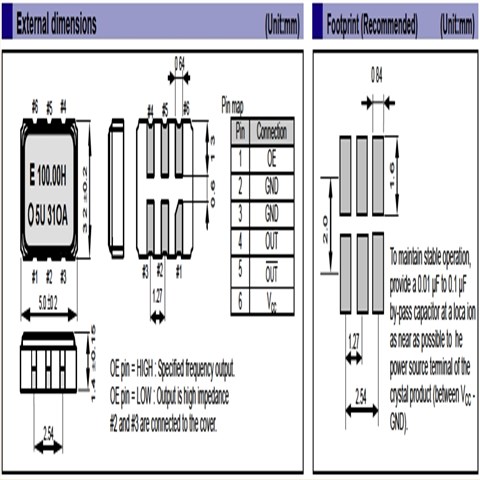

X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振 尺寸图

差分晶振产品特性：

频率范围: 100mhz to 200mhz

电源电压: 2.5 / 3.3V

output: hcsl

功能Output enable (OE)

外形尺寸: 5.0 × 3.2 × 1.4mm

使用SAW的低抖动振荡器 XG5032HAN 1

更多相关日本爱普生晶振型号

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042710001	爱普生晶振	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710002	爱普生晶振	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710004	爱普生晶振	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710005	爱普生晶振	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710006	爱普生晶振	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710007	爱普生晶振	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710008	爱普生晶振	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710009	爱普生晶振	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710010	爱普生晶振	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710011	爱普生晶振	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710012	爱普生晶振	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710013	爱普生晶振	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710014	爱普生晶振	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710015	爱普生晶振	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710016	爱普生晶振	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710017	爱普生晶振	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710019	爱普生晶振	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710020	爱普生晶振	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710021	爱普生晶振	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710023	爱普生晶振	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710024	爱普生晶振	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710025	爱普生晶振	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710026	爱普生晶振	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710027	爱普生晶振	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710028	爱普生晶振	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710029	爱普生晶振	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710030	爱普生晶振	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710031	爱普生晶振	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710032	爱普生晶振	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710033	爱普生晶振	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710034	爱普生晶振	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710035	爱普生晶振	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710036	爱普生晶振	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710038	爱普生晶振	SG5032EAN	700.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710039	爱普生晶振	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710040	爱普生晶振	SG5032EAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710042	爱普生晶振	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710043	爱普生晶振	SG5032EAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710044	爱普生晶振	SG5032EAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710045	EPSON晶振	SG5032EAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710046	爱普生晶振	SG5032EAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710047	爱普生晶振	SG5032EAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710048	爱普生晶振	SG5032EAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710049	爱普生晶振	SG5032EAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710050	爱普生晶振	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710052	爱普生晶振	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710053	爱普生晶振	SG5032EAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710054	爱普生晶振	SG5032EAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710055	爱普生晶振	SG5032EAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
