32.768KHZ手表晶振,TZ1006A,3215mm音叉晶体,台湾嘉硕晶振

产品简介

32.768KHZ手表晶振,TZ1006A,3215mm音叉晶体,台湾嘉硕晶振,TST小尺寸晶振,台湾TST晶振,TZ1006A晶体,音叉晶振32.768K,无源谐振器,贴片无源晶振,3215mm水晶振动子,SMD晶振,尺寸3.2*1.5mm,频率32.768KHZ,高可靠晶振,高性能晶振,低功耗晶振,低成本晶振,智能手表晶振,通信设备晶振,电话机晶振,收音机晶振,数字显示晶振.

产品详情

32.768KHZ手表晶振,TZ1006A,3215mm音叉晶体,台湾嘉硕晶振特点:

陶瓷接缝包装或陶瓷玻璃密封包装

卓越的可靠性性能

超微型包装32.768KHZ晶振

可用于表面安装技术和红外回流工艺

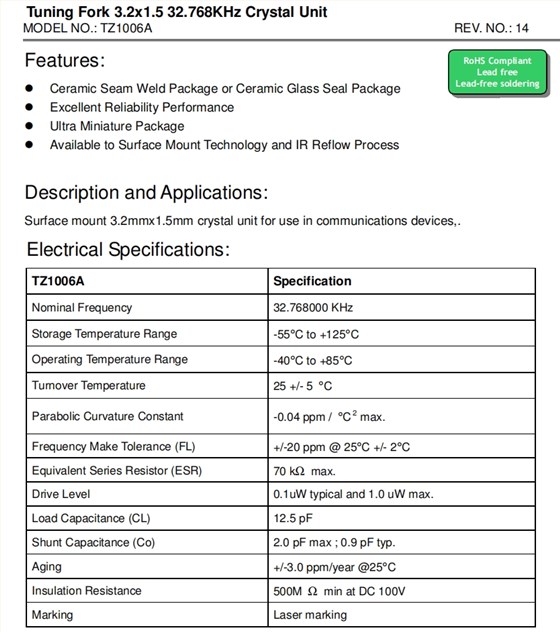

32.768KHZ手表晶振,TZ1006A,3215mm音叉晶体,台湾嘉硕晶振 参数表

TZ1006A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-55°Cto+125°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5 °C
Parabolic CurvatureConstant	-0.04ppm/ °C2 max.
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-2°C
EquivalentSeriesResistor(ESR)	70kΩmax.
DriveLevel	0.1uWtypicaland1.0uWmax.
LoadCapacitance(CL)	12.5pF
ShuntCapacitance(Co)	2.0 pFmax;0.9pF typ.
Aging	+/-3.0ppm/year@25°C
InsulationResistance	500MΩ min atDC100V
Marking	Lasermarking
