X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振

X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振

产品简介


X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振，尺寸7.0*5.0mm,频率50MHZ,输出逻辑LVDS，差分有源振荡器，LVDS差分振荡器，OSC差分晶振，低电压差分振荡器，低相位差分晶振，低损耗差分晶振，低相噪差分晶振，6G将使通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。

LVDS晶振产品比较适合用于测试和测量设备，工厂自动化，网络设备(路由器、交换机、光模块等)，数据中心，高速转换器，如ADC和DAC等应用程序.X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振.


产品详情

X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振，尺寸7.0*5.0mm,频率50MHZ,输出逻辑LVDS，差分有源振荡器，LVDS差分振荡器，OSC差分晶振，低电压差分振荡器，低相位差分晶振，低损耗差分晶振，低相噪差分晶振，6G将使通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。

LVDS晶振产品比较适合用于测试和测量设备，工厂自动化，网络设备(路由器、交换机、光模块等)，数据中心，高速转换器，如ADC和DAC等应用程序.X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振.耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振参数表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.5 - 4 V fo≤200 MHz
-0.5 - 5 V fo > 200 MHz
Input voltage Vin -0.5 - VCC+ 0.5 V OE terminal
Storage temperature range T_stg -55 - 125 ºC
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 ºC Suffix: G
-40 +25 +105 ºC Suffix: H
LVDS load condition L_LVDS 100 Ω Connected between
OUT and
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

50 MHz SG3225VEN / SG7050VEN
200 - 500 MHz SG5032VEN
Frequency tolerance f_tol -25 - +25 ×10-6 *2
Suffix: D
fo≤200 MHz, T_use: G
-50 - +50 ×10-6 *3
Suffix: J
T_use: G
*3
Suffix: J
fo≤200 MHz, T_use: H
-100 - +100 ×10-6 *3
Suffix: L
T_use: H
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 %VCC
Current consumption ICC - - 25 mA
Disable current I_dis - - 15 mA OE = GND
Rise time / Fall time tr / tf - - 0.3 ns 20 % - 80 % of differential
output peak to peak voltage
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 350 450 mV DC characteristics
dVOD - - 50 mV
VOS 1.15 1.25 1.35 V
dVOS - - 50 mV
Input voltage VIH 70 % VCC - - V OE terminal
VIL - - 30 % VCC V
Output disable time tstp_oe - - 100 ns OE terminal HIGH → LOW
Output enable time tsta_oe - - 200 ns fo ≤ 200 MHz,
OE terminal LOW → HIGH
- - 500 ns fo > 200 MHz,
OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz) tPJ - 164.8 - fs Offset frequency
12 kHz to 5 MHz
Phase jitter(fo = 50 MHz) tPJ - 183.1 - fs Offset frequency
12 kHz to 20 MHz
Phase jitter(fo = 100 MHz) tPJ - 96.1 150 fs
Phase jitter(fo = 125 MHz) tPJ - 71.1 110 fs
Phase jitter(fo = 156.25 MHz) tPJ - 59.6 90 fs
Phase jitter(fo = 212.5 MHz) tPJ - 36.2 80 fs
Phase jitter(fo = 312.5 MHz) tPJ - 37.0 80 fs
Phase jitter(fo = 491.52 MHz) tPJ - 29.2 60 fs
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

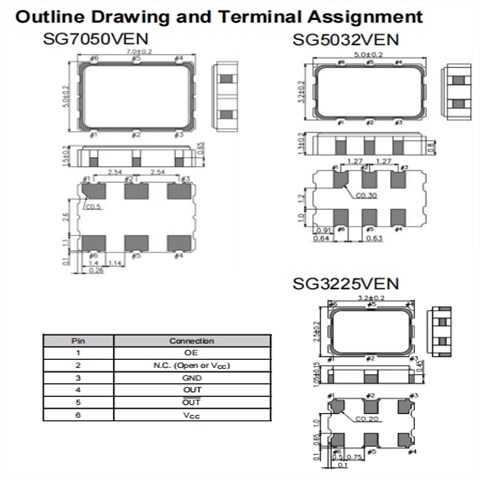

X1G0053311007,EPSON爱普生晶振,6G模块晶振,SG7050VEN差分晶振尺寸图

SG3225VEN SG5032VEN SG7050VEN 1

产品特性：

有源晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVDS

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃至+105℃

低相位抖动:60fs(fo = 156.25MHz)

SG3225VEN SG5032VEN SG7050VEN 1

更多相关日本爱普生晶振型号

编码 进口晶振品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0042610106 爱普生晶振 SG5032VAN 122.880000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610107 爱普生晶振 SG5032VAN 153.600000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610108 爱普生晶振 SG5032VAN 307.200000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042610109 爱普生晶振 SG5032VAN 614.400000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810001 爱普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810002 爱普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810004 爱普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810005 爱普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810006 爱普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810007 爱普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810008 爱普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810009 爱普生晶振 SG7050VAN 74.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810010 爱普生晶振 SG7050VAN 148.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810011 爱普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810012 爱普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810014 爱普生晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810015 爱普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810016 爱普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810017 爱普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810020 爱普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810021 爱普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810023 爱普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810024 爱普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810025 爱普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810026 爱普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810027 爱普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810028 爱普生晶振 SG7050VAN 74.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810029 爱普生晶振 SG7050VAN 148.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810030 爱普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810031 爱普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810032 爱普生晶振 SG7050VAN 155.520000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810033 EPSON晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810034 爱普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810035 爱普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810036 爱普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810038 爱普生晶振 SG7050VAN 700.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810039 爱普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810040 爱普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810042 爱普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810043 爱普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810044 爱普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810045 爱普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810046 爱普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振
