爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振，尺寸2.0x1.6mm,频率156.25MHz,输出逻辑HCSL,工作温度-40 to+105°C，SPXO差分晶体振荡器，爱普生差分晶振，日本进口差分晶振，HCSL,输出差分晶振，汽车音响差分晶振，汽车氛围灯差分振荡器，6G无线设备差分晶振，低抖动差分晶振，低相位差分振荡器，低电压差分晶振，爱普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN进口有源晶体产品系列支持HCSL (High Speed电流转向逻辑)，并满足时间合规抖动要求，直至PCIe Gen6。最大90ps相位抖动，支持频率从25mhz到500mhz，产品组覆盖整个系统大多数网络、数据中心和通信应用的要求。

有源晶体振荡器产品主要应用范围：汽车氛围灯，汽车音响，6G无线设备，网络产品，仪器仪表，平板电脑，智能家居，通信模块，通信设备采用PCIe Gen5或gen6(SSD、网卡等)等领域。爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振.


产品详情

爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振，尺寸2.0x1.6mm,频率156.25MHz,输出逻辑HCSL,工作温度-40 to+105°C，SPXO差分晶体振荡器，爱普生差分晶振，日本进口差分晶振，HCSL,输出差分晶振，汽车音响差分晶振，汽车氛围灯差分振荡器，6G无线设备差分晶振，低抖动差分晶振，低相位差分振荡器，低电压差分晶振，爱普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN进口有源晶体产品系列支持HCSL (High Speed电流转向逻辑)，并满足时间合规抖动要求，直至PCIe Gen6。最大90ps相位抖动，支持频率从25mhz到500mhz，产品组覆盖整个系统大多数网络、数据中心和通信应用的要求。

有源晶体振荡器产品主要应用范围：汽车氛围灯，汽车音响，6G无线设备，网络产品，仪器仪表，平板电脑，智能家居，通信模块，通信设备采用PCIe Gen5或gen6(SSD、网卡等)等领域。爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振.耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振参数表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC+ 0.5 V OE/terminal
Storage temperature range T_stg -55 - +125 °C
[ 3 ] Operating Range
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V
3.135 3.3 3.465 V
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C
-40 +25 +105 °C
HCSL load condition L_HCSL 50 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo
- 156.25 MHz
Frequency tolerance *2 f_tol -20 - +20 ×10-6
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 35 mA fo ≤ 212 MHz
- - 40 mA fo > 212 MHz
Disable current I_dis - - 25 mA OE = GND
Stand-by current I_std - - 30 μA = GND, T_use Max. = +85 °C
- - 60 μA = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.7 ns 20 % - 80 % (VOH- VOL)
Differential output
rise slew rate / fall slew rate 		Rr / Rf 2 - 10 V/ns Between -0.15 V and 0.15 V
of differential output
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOH 0.5 - 0.7 V Output option: A, fo ≤ 212 MHz
0.4 - 0.65 V Output option: A, fo > 212 MHz
0.6 - 0.8 V Output option: B, fo ≤ 212 MHz
0.5 - 0.75 V Output option: B, fo > 212 MHz
VOL -0.15 - 0.15 V
Differential swing VSW 0.7 - 1.4 V Output option: A
0.8 - 1.6 V Output option: B
Input voltage VIH 70 % VCC - - V OE/terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns Measured from the time OE
pin crosses 30 % VCC
Output disable time (ST) tstp_st - - 100 ns Measured from the time
pin crosses 30 % VCC
Output enable time (OE) tsta_oe - - 500 ns Measured from the time OE
pin crosses 70 % VCC
Output enable time (ST) tsta_st - - 10 ms Measured from the time
pin crosses 70 % VCC
Phase jitter
Offset frequency
fo < 50 MHz: 12 kHz to 5 MHz
fo ≥ 50 MHz: 12 kHz to 20 MHz 		tPJ - - 200 fs fo < 100 MHz
- - 90 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs 212 MHz < fo ≤ 391 MHz
- - 50 fs fo > 391 MHz
Jitter tp-p - - 60 ps Peak to Peak Jitter
tc-c - - 60 ps Cycle to cycle jitter
(Peak to Peak)
PCIe jitter limits for CC
architecture 		- - - 0.1 ps For PCIe Gen5
- - 0.06 ps For PCIe Gen6
[ 6 ] Thermal resistance(For reference only)
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Junction temperature Tj - - +140 °C
Junction to case θjc - 114 - °C/W SG2016HHN
- 122 - °C/W SG2520HHN
Junction to ambient θja - 243 - °C/W SG2016HHN
- 155 - °C/W SG2520HHN
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

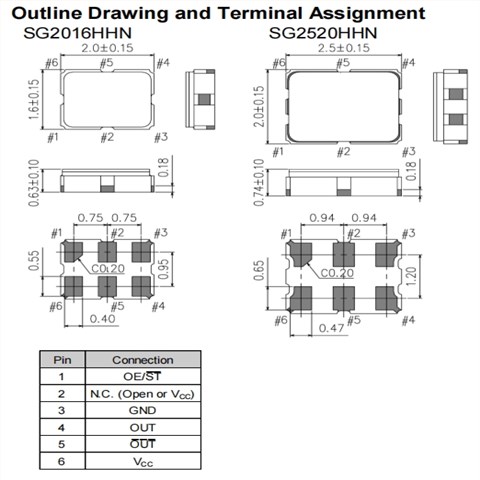

爱普生振晶振,SG2016HHN车规振荡器,X1G0062310001,6G无线差分晶振尺寸图SG2016HHN SG2520HHN

产品特性：

有源晶振(SPXO)

频率范围(fo): 25MHz至500MHz

输出:HCSL

供电电压:2.5 V。/ 3.3 V类型

频率公差:±20 × 10-6

工作温度:-40℃~ +105℃

低相位抖动:60fs(fo = 100MHz)

PCIe gen5,6抖动规范兼容

SG2016HHN SG2520HHN 1

更多相关日本爱普生晶振型号

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0042410012 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 爱普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 爱普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 爱普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 EPSON晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 爱普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 爱普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 爱普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 爱普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 爱普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 爱普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 爱普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 爱普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 爱普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 爱普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 爱普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 爱普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410074 爱普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410079 爱普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410080 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410083 爱普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410084 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410087 爱普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410088 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410092 爱普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410100 爱普生晶振 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410101 爱普生晶振 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410102 爱普生晶振 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410103 爱普生晶振 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410104 爱普生晶振 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410105 爱普生晶振 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410106 爱普生晶振 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410108 爱普生晶振 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042510001 爱普生晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
