微晶超薄型无源晶体原厂编码曝光CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，Grenchen, Switzerland,   Micro Crystal, the leading provider for quartz crystals, oscillators, OCXOs and Real-Time Clocks for the worlds leading electronics industry now offers the popular oscillator in the advanced tiny package of just 1.2 * 2.0 * 0.7 mm. This hermetically sealed package hosts the integrated circuit together with the XTAL. It withstands harsh environmental condition. Aside the large supply voltage range it features very low power consumption. In active mode it draws as low as 1 μA driving one CMOS load. Since the oscillator is running also in stand-by mode (i= 0.45 μA) the accurate frequency is available instantaneously, no delayed startup time, as typical e.g. for AT-oscillator, must be cared for. Through factory calibration the accuracy is superior to solutions with external XTAL. The wide supply voltage range of 1.6 to 5.5 V combined with the large operating temperature range of -40°C to + 85°C, low power consumption and small package size makes it ideal for future applications.

瑞士Grenchen为全球领先电子行业提供贴片石英晶体、振荡器、OCXOs和实时时钟的领先供应商Micro Crystal现在提供流行的振荡器，采用仅1.2*2.0*0.7mm的先进微型封装。这种密封封装将集成电路与XTAL放在一起。它能承受恶劣的环境条件。除了较大的电源电压范围外，它还具有极低的功耗。在主动模式下，驱动一个CMOS负载的功耗低至1 μA。由于振荡器也在待机模式(i= 0.45 μA)下运行，因此精确的频率可即时获得，无需延迟启动时间，例如AT振荡器的典型启动时间。通过工厂校准，精度优于外部XTAL解决方案。1.6至5.5 V的宽电源电压范围，加上-40°C至+85°C的大工作温度范围、低功耗和小封装尺寸，使其成为未来应用的理想选择.

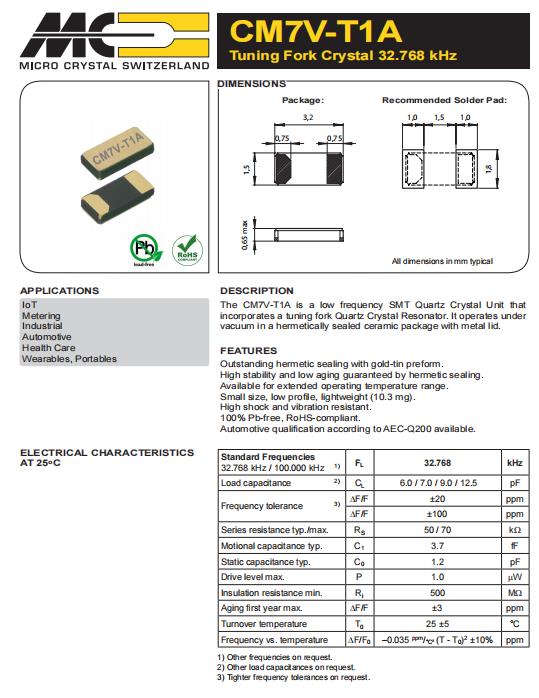

瑞士Grenchen, Micro Crystal AG，超低功耗、低电压解决方案供应商今天宣布小型化的下一步:开发编码CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，型号CM7V-T1A是一种低频SMT石英晶体单元结合了一个音叉石英晶体谐振器。它在真空密封在密封陶瓷包装与金属盖。

产品特性：卓越的密封与金锡预制。高稳定性，低老化，密封保证。可扩展工作温度范围。体积小，外形低，重量轻(10.3毫克)。高抗冲击和抗振动。100%不含铅，符合rohs标准。具备AEC-Q200汽车资质。微晶超薄型无源晶体原厂编码曝光CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC.

Micro Crystal AG总部位于瑞士Grenchen，设计，制造和销售全球石英晶振用于电子工业的晶体，振荡器，ocxo和实时时钟。公司雇佣在全球拥有约500名员工，并在泰国和新加坡拥有大量生产设施瑞士。微晶在欧洲，亚洲和北美的销售办事处确保紧密联系与客户合作并提供优秀的技术支持。Micro Crystal AG代表可靠.
