ECS推出新颖的TCXO振荡器用于智能电表ECS-2012MV-327KE-TR

返回列表 来源:冠杰电子 浏览:- 发布日期:2023-03-30 14:58:11【

ECS推出新颖的TCXO振荡器用于智能电表ECS-2012MV-327KE-TR,The ECS-2012MV-327KE is a 2.0 mm x 1.2 mm 32.768 kHz HCMOS oscillator with MultiVoltTM capabilities. This small electronic component offers low current consumption and improved stability against uncompensated crystal oscillators.

ECS-2012MV-327KE是一款2.0 mm x 1.2 mm 32.768 kHz HCMOS振荡器,具有MultiVoltTM功能。这种小的电子元件提供低电流消耗和改进的稳定性对温度补偿晶体振荡器

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Operating Temperature     工作温度
ECS-2520S33-200-FN-TR ECS晶振 ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-200-FN-TR ECS晶振 ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-120-FN-TR ECS晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S33-120-FN-TR ECS晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S33-120-FN-TR ECS晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-3525-143-B-TR ECS晶振 ECS-3525 14.31818MHz 0°C ~ 70°C
ECS-3525-143-B-TR ECS晶振 ECS-3525 14.31818MHz 0°C ~ 70°C
ECS-3525-640-B-TR ECS晶振 ECS-3525 64MHz 0°C ~ 70°C
ECS-3525-640-B-TR ECS晶振 ECS-3525 64MHz 0°C ~ 70°C
ECS-3525-640-B-TR ECS晶振 ECS-3525 64MHz 0°C ~ 70°C
ECS-3525-666-B-TR ECS晶振 ECS-3525 66.666MHz 0°C ~ 70°C
ECS-3525-666-B-TR ECS晶振 ECS-3525 66.666MHz 0°C ~ 70°C
ECS-3525-666-B-TR ECS晶振 ECS-3525 66.666MHz 0°C ~ 70°C
ECS-2033-035-BN ECS晶振 ECS-2033 3.579545MHz -40°C ~ 85°C
ECS-2033-035-BN ECS晶振 ECS-2033 3.579545MHz -40°C ~ 85°C
ECS-2033-035-BN ECS晶振 ECS-2033 3.579545MHz -40°C ~ 85°C
ECS-3951C-036-TR ECS晶振 ECS-3951C 3.6864MHz 0°C ~ 70°C
ECS-3951C-036-TR ECS晶振 ECS-3951C 3.6864MHz 0°C ~ 70°C
ECS-3951C-036-TR ECS晶振 ECS-3951C 3.6864MHz 0°C ~ 70°C
ECS-3951M-500-B-TR ECS晶振 ECS-3951M 50MHz -10°C ~ 70°C
ECS-3951M-500-B-TR ECS晶振 ECS-3951M 50MHz -10°C ~ 70°C
ECS-3951M-500-B-TR ECS晶振 ECS-3951M 50MHz -10°C ~ 70°C

Image Part Number Frequency Frequency Stability Operating Temperature Datasheet Inventory
ECS-2012MV-327KE-TR 32.768 kHz ±20ppm -40°C ~ +85°C

The ECS-3215MV-327KE series of HCMOS oscillators are in a 2.0 mm x 1.2 mm x 0.85 mm ceramic package that offers MultiVoltTM capabilities. These electronic components offer a frequency of 32.768 kHz with a frequency stability of ±10 ppm and low 0.5µA current consumption at the standard industrial operating temperature of -40ºC to +85ºC. As a part of the MultiVoltTM series of oscillators, the ECS-2012MV-327KE is designed to operate on a variable supply voltage of 1.2V to 5.5V or a standard 1.8V, 2.5V, 3.0V or 3.3V supply. As it offers improved stability against various uncompensated crystal oscillators, this component is ideal smart meter, wearable, industrial and IoT applications.

ECS推出新颖的TCXO振荡器用于智能电表ECS-2012MV-327KE-TRECS-3215MV-327KE系列HCMOS振荡器采用2.0 mm x 1.2 mm x 0.85 mm陶瓷封装,提供MultiVoltTM功能。这些电子元件提供32.768 kHz的频率,频率稳定性为±10 ppm,在-40ºC至+85ºC的标准工业工作温度下低0.5µa电流消耗。作为MultiVoltTM系列SMD振荡器的一部分,ECS-2012MV-327KE设计用于在1.2V至5.5V的可变电源电压或标准1.8V, 2.5V, 3.0V或3.3V电源上工作。由于它对各种温度补偿晶体振荡器提供了更好的稳定性,因此该组件是理想的智能电表,可穿戴,工业和物联网应用。

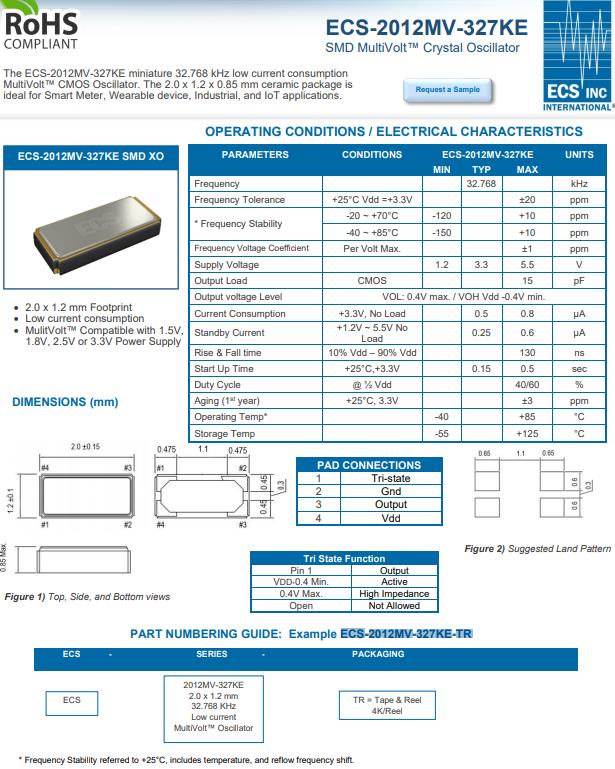

ECS-2012MV-327KE-TR 11编码ECS-2012MV-327KE-TR有源晶振特点:2.0 mm x 1.2 mm x 0.85 mm 4-pad占地面积,32.768 kHz频率,稳定性:-150到+10 ppm @ -40ºC ~ +85ºC,温度范围:-40ºC ~ +85ºC,电流消耗:0.5 μ A,MultiVoltTM能力+1.8 V, +2.5 V, +3.0 V或+3.3 V或1.2 V ~ 5.5 V电源,HCMOS输出,符合RoHS和REACH标准.

应用:物联网,工业,无线,可穿戴,智能电表,医疗(非维持生命).
