Jauch石英贴片晶振,Q0.032768-SMQ32SL-12.5-20-T1-LF,数字显示6G晶振

频率为：32.768MHz，尺寸：8.0x3.8mm

Jauch石英贴片晶振,Q0.032768-SMQ32SL-12.5-20-T1-LF,数字显示6G晶振，法国进口晶振，Jauch晶振，型号：SMQ32SL，编码为：Q0.032768-SMQ32SL-12.5-20-T1-LF，频率为：32.768MHz，负载电容12.5pF，精度±20ppm，小体积晶振尺寸：8.0x3.8mm陶瓷SMD封装，四脚贴片晶振，石英晶体谐振器，SMD石英晶体，石英晶振，无铅晶振，工作温度范围：-40℃至+85℃。具有超小型晶振，轻薄型晶振，高品质晶振，高性能晶振，高精度晶振，高稳定性，耐热及耐环境特点。无源晶振被广泛应用于：通讯设备，时钟晶振，钟表电子晶振，电脑主板晶振，无线网络，蓝牙模块，仪器仪表设备，智能水电表，数码电子，智能家居等应用。

订购热线：0755-27839151

Jauch石英贴片晶振,Q0.032768-SMQ32SL-12.5-20-T1-LF,数字显示6G晶振 参数表

TYPE

SMQ32SL

frequency

32.768 kHz (30.0 ~ 100.0 kHz on request)

frequency tolerance at 25 °C ± 5 °C

± 20 ppm / ± 30 ppm

± 10 ppm (ask if available)

load capacitance CL

12.5 pFstd. (6 pF ~ 16 pF on request)

temperature constant (TC)

TC = -0.04 ppm / °C2 max.

TC = -0.034 ppm / °C2 typical

frequency temperature
characteristic

Δf = TC · (TA - TTP)2 in [ppm]

TA = actual ambient temperature

TTP = 25 °C ± 5 °C

TTP = turning point temperature

operating temperature range

-20 °C ~ +70 °C / -40 °C ~ +85 °C

shunt capacitance CO

1.3 pF typical

series resistance max. (ESR)

50 kΩ (35 kΩ ask if available

storage temperature

-40 °C ~ +90 °C

drive level max.

1 µW

aging first year

< ± 3 ppm

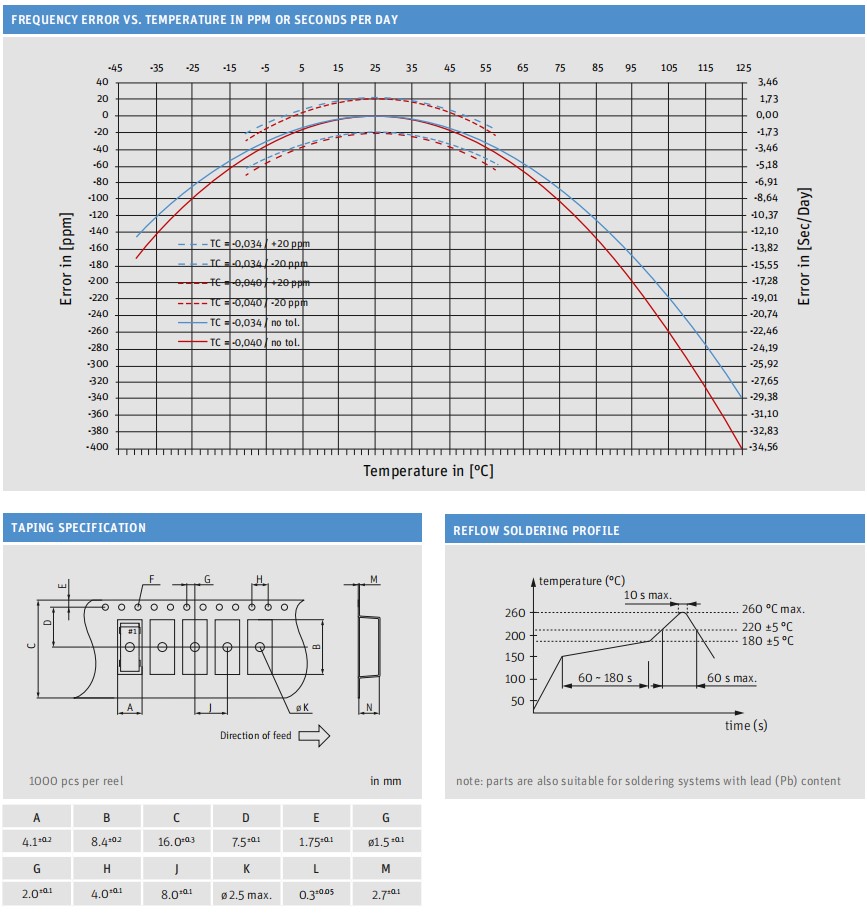

Jauch石英贴片晶振,Q0.032768-SMQ32SL-12.5-20-T1-LF,数字显示6G晶振 尺寸图

Jauch石英贴片晶振,Q0.032768-SMQ32SL-12.5-20-T1-LF,数字显示6G晶振

产品特点：

SMD调优叉晶体8.0x3.8mm石英晶体

32.768kHz标准

包装高度2.5 mm最大
